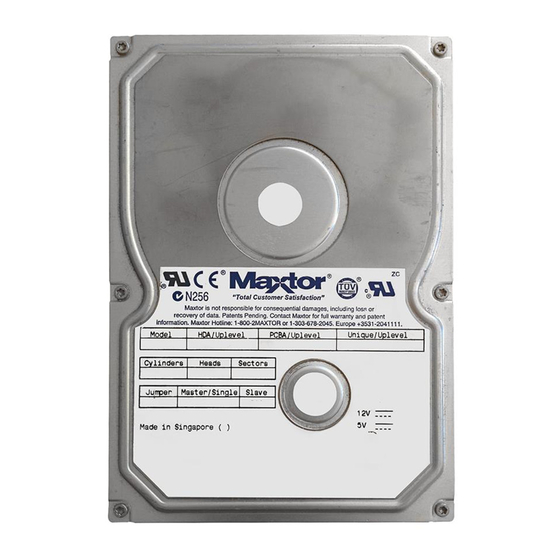

DiamondMax™ 1750 UDMA
8 7000D8, 86480D8, 85250D6
84320D5, 83500D4, 83240D4
82560D3, 81750D2
Part #1381/A
All material contained herein Copyright © 1997 Maxtor Corporation.
CrystalMax™, CrystalMax™ 1080, DiamondMax™, DiamondMax™
®
1750 and MaxFax™ are trademarks of Maxtor Corporation. No Quibble
Service is a registered trademark of Maxtor Corporation. Other brands or
products are trademarks or registered trademarks of their respective holders.
Contents and specifications subject to change without notice. All rights
reserved. Printed in the U.S.A. 6/97
Corporate Headquarters
510 Cottonwood Drive
Milpitas, California 95035
Tel: 408-432-1700
Fax: 408-432-4510
Research and Development
Engineering Center
2190 Miller Drive
Longmont, Colorado 80501
Tel: 303-651-6000
Fax: 303-678-2165
Advertisement
Table of Contents
Related Manuals for Maxtor DiamondMax 1750 83240D4
Summary of Contents for Maxtor DiamondMax 1750 83240D4
- Page 1 ® 1750 and MaxFax™ are trademarks of Maxtor Corporation. No Quibble Service is a registered trademark of Maxtor Corporation. Other brands or products are trademarks or registered trademarks of their respective holders. Contents and specifications subject to change without notice. All rights reserved.
- Page 2 Revisions Manual No. 1381...
- Page 3 Before You Begin Thank you for your interest in the Maxtor DiamondMax™ 1750 AT hard disk drives. This manual provides technical information for OEM engineers and systems integrators regarding the installation and use of the 87000D8, 86480D8, 85250D6, 84320D5, 83500D4, 83240D4, 82560D3 and 81750D2.
-
Page 4: Table Of Contents
Key Words 1 - 2 Numbering 1 - 2 Signal Conventions 1 - 2 Section 2 — Product Description The 87000D8, 86480D8, 85250D6, 84320D5, 83500D4, 2 - 1 83240D4, 82560D3 and 81750D2 Product Features 2 - 2 Functional/Interface 2 - 2... - Page 5 DIAMONDMAX 1750 PRODUCT MANUAL Data Reliability 3 - 4 Acoustic Noise 3 - 4 EPA Energy Star Compliance 3 - 4 EMC/EMI 3 - 5 Standard Test Methods 3 - 5 Safety Regulatory Compliance 3 - 5 Section 4 — Handling and Installation Pre-formatted Drive 4 - 1 Important Notice...
- Page 6 DIAMONDMAX 1750 PRODUCT MANUAL Section 7 — Interface Commands Command Summary 7 - 1 Read Commands 7 - 2 Read Sector(s) 7 - 2 Read Verify Sector(s) 7 - 2 Read Sector Buffer 7 - 2 Read DMA 7 - 3 Read Multiple 7 - 3 Set Multiple...
- Page 7 DIAMONDMAX 1750 PRODUCT MANUAL Figures Figure Title Page 2 - 1 PCBA Jumper Locations and Configuration 2 - 6 3 - 1 Outline and Mounting Dimensions 3 - 2 4 - 1 Multi-pack Shipping Container 4 - 2 4 - 2 Single-pack Shipping Container (Option A) 4 - 3 4 - 3...
-
Page 8: Section 1 - Introduction
CrystalMax™ and CrystalMax™ 1080 series hard drives deliver industry-leading capacity and value for most PC applications. Support No matter which capacity, all Maxtor hard drives are supported by our commitment to total customer satisfaction and our ® No Quibble Service guarantee. -
Page 9: Conventions
DIAMONDMAX 1750 – INTRODUCTION Conventions If there is a conflict between text and tables, the table shall be accepted as being correct. Key Words The names of abbreviations, commands, fields and acronyms used as signal names are in all uppercase type (e.g., IDENTIFY DRIVE). -
Page 10: Section 2 - Product Description
SECTION 2 Product Description Maxtor DiamondMax™ 1750 AT disk drives are 1-inch high, 3.5-inch diameter random access storage devices which incorporate an on-board UltraDMA/ATA controller. High capacity is achieved by a balanced combination of high areal recording density and the latest data encoding and servo techniques. -
Page 11: Product Features
Product Features Functional / Interface Maxtor DiamondMax™ 1750 hard drives contain all necessary mechanical and electronic parts to interpret control signals and commands from an AT-compatible host computer. See Section 3, Product Specifications, for complete drive specifications. Zone Density Recording The disk capacity is increased with bit density management –... -
Page 12: Logical Block Addressing
PRODUCT DESCRIPTION Logical Block Addressing The Logical Block Address (LBA) mode can only be utilized in systems that support this form of translation. The cylinder, head and sector geometry of the drive, as presented to the host, differs from the actual physical geometry. The host AT computer may access a drive of set parameters: number of cylinders, heads and sectors per track, plus cylinder, head and sector addresses. -
Page 13: Cache Management
PRODUCT DESCRIPTION Cache Management Buffer Segmentation The data buffer is organized into two segments: the data buffer and the micro controller scratch pad. The data buffer is dynamically allocated for read and write data depending on the commands received. A variable number of read and write buffers may exist at the same time. -
Page 14: Major Hda Components
(depending on the model), read pre-amplification and write drive circuitry. Read/Write Heads and Media Low mass, low force magneto-resistive read/write heads record data on 3.5-inch diameter disks. Maxtor uses a sputtered thin film medium on all disks for DiamondMax 1750 drives. -
Page 15: Subsystem Configuration
PRODUCT DESCRIPTION Subsystem Configuration Dual Drive Support Two drives may be accessed via a common interface cable, using the same range of I/O addresses. The drives are jumpered as device 0 or 1 (Master/Slave), and are selected by the drive select bit in the Device/Head register of the task file. -
Page 16: Section 3 - Product Specifications
PRODUCT SPECIFICATIONS SECTION 3 Product Specifications Configuration Performance 3 – 16... -
Page 17: Physical Dimensions
PRODUCT SPECIFICATIONS Physical Dimensions Height 1.00 inches [25.4 mm] Length 5.75 inches [146.1 mm] Width 4.00 inches [101.6 mm] Weight 1.2 pounds [0.5 kg] Figure 3 - 1 Outline and Mounting Dimensions 3 – 17... -
Page 18: Power Requirements
PRODUCT SPECIFICATIONS Power Requirements (Average) Power Mode Definitions Active The drive is spinning and most circuitry is powered on. The drive is capable of responding to read commands in the shortest possible time. Read/Write heads are positioned over the data area. Idle The drive is spinning, the actuator is parked and powered off and all other circuitry is powered on. -
Page 19: Shock And Vibration
The annualized average failure rate (AFR) applies to the period prior to the expiration of component design life, and is based on failures chargeable to Maxtor. Determination of the AFR takes into account: a.) in-warranty field failure returns less quality acceptance-related failures and b.) an AFR equaling an exponentially weighted moving and average monthly failure rate multiplied by 12. -
Page 20: Emc/Emi
Safety Regulatory Compliance All Maxtor DiamondMax™ 1750 drives comply with relevant product safety standards such as CE, CUL, TUV and UL rules and regulations. As delivered, DiamondMax 1750 hard disk drives are designed for system integration before they are used. -
Page 21: Section 4 - Handling And Installation
Electro-Static Discharge (ESD) To avoid some of the problems associated with ESD, Maxtor advises that anyone handling a disk drive use a wrist strap with an attached wire connected to an earth ground. Failure to observe these precautions voids the warranty. -
Page 22: Unpacking And Inspection
As they are removed, inspect drives for evidence of shipping damage or loose hardware. If a drive is damaged (and no container damage is evident), notify Maxtor immediately for drive disposition. Figure 4 - 1 Multi-pack Shipping Container 4 –... -
Page 23: Repacking
Single Pack Shipping Container (Option A) Single Pack Shipping Container (Option B) Repacking If a Maxtor drive requires return, repack it using Maxtor packing materials, including the antistatic bag. Physical Installation Recommended Mounting Configuration The DiamondMax™ 1750 drive design allows greater shock tolerance than that afforded by larger, heavier drives. -
Page 24: Drive Jumper Settings
INSTALLATION Drive Jumper Settings Figure 4-4 shows the valid jumper settings for the Maxtor hard drive. A spare jumper shunt is shipped between J46 and J48. Figure 4 - 4 Master/Slave Jumper Detail Mounting Drive in System Turn the computer OFF, disconnect the power cord and remove the cover. Refer to your computer user’s manual for additional information. -
Page 25: 5.25-Inch Installation
Maxtor hard drive is being installed in may have implemented a different mounting and placement methodology. Mounting Drive in 5.25-inch Bay If the Maxtor hard drive will be mounted in a 5.25-inch bay, install it as shown in Figure 4-6 below. Figure 4 - 6 5.25-inch Installation Mounting Drive in 3.5-inch Bay... -
Page 26: Attaching Ide Interface And Power Cables
Attaching IDE Interface and Power Cables In order for your computer to recognize that the Maxtor hard drive is in the system, the IDE interface and power cables must be connected to the hard drive, the mother board or the IDE hard drive interface card. -
Page 27: Attaching System Cables
INSTALLATION Attaching System Cables Attach the 40-pin IDE interface cable from the Maxtor hard drive to the IDE connector on the IDE interface card. Figure 4 - 9 System Interface Card Cabling Attach the 40-pin IDE interface cable from the Maxtor hard drive to the IDE connector on the mother board. -
Page 28: System Setup
BIOS setting and other installation requirements Setting the BIOS (CMOS) In order for the computer system to recognize the new Maxtor hard drive, it is necessary to set the system BIOS with the correct information about the hard drive. - Page 29 System Hangs During Boot If after installing the Maxtor hard drive in the system or after setting the system BIOS the system hangs during the boot process, the system may have a BIOS limitation. This may occur for drives with capacities larger than 2.1 GB.
-
Page 30: Hard Drive Preparation
2.1 GB. Hard Drive Preparation To complete the installation of the Maxtor hard drive, the drive must be partitioned and formatted. Boot the system. Using the Max•Blast diskette received with the hard drive, place the diskette in the A: drive and turn the system on. -
Page 31: Section 5 - At Interface Description
AT INTERFACE DESCRIPTION SECTION 5 AT Interface Description Interface Connector All DiamondMax™ 1750 AT drives have a 40-pin ATA interface connector mounted on the PCBA. The drive may connect directly to the host; or it can also accommodate a cable connection (maximum cable length: 18 inches). Figure 5-1 Data Connector Pin Description Summary... -
Page 32: Pin Description Table
AT INTERFACE DESCRIPTION Pin Description Table 5 – 32... -
Page 33: Pio Timing
AT INTERFACE DESCRIPTION PIO Timing Figure 5 - 2 PIO Data Transfer To/From Device 5 – 33... -
Page 34: Dma Timing
AT INTERFACE DESCRIPTION DMA Timing Figure 5 - 3 Multi-word DMA Data Transfer 5 – 34... -
Page 35: Ultra Dma Timing Parameters
AT INTERFACE DESCRIPTION Ultra DMA Timing DMARQ (device) DMACK- (host) STOP (host) HDMARDY- (host) ZIORDY DSTROBE (device) DD(15:0) DA0, DA1, DA2, CS0-, CS1- Figure 5 - 4 Initiating an Ultra DMA Data In Burst 5 – 35... -
Page 36: Sustained Ultra Dma Data In Burst
AT INTERFACE DESCRIPTION 2CYC 2CYC DSTROBE at device DD(15:0) at device DSTROBE at host DD(15:0) at host Figure 5 - 5 Sustained Ultra DMA Data In Burst DMARQ (device) DMACK- (host) STOP (host) HDMARDY- (host) DSTROBE (device) DD(15:0) (device) Figure 5 - 6 Host Pausing an Ultra DMA Data In Burst 5 –... -
Page 37: Device Terminating An Ultra Dma Data In Burst
AT INTERFACE DESCRIPTION DMARQ (device) DMACK- (host) STOP (host) HDMARDY- (host) IORDYZ DSTROBE (device) DD(15:0) DA0, DA1, DA2, CS0-, CS1- Figure 5 - 7 Device Terminating an Ultra DMA Data In Burst DMARQ (device) DMACK- (host) STOP (host) HDMARDY- (host) IORDYZ DSTROBE (device) -
Page 38: Initiating An Ultra Dma Data Out Burst
AT INTERFACE DESCRIPTION DMARQ (device) DMACK- (host) STOP (host) ZIORDY DDMARDY- (device) HSTROBE (host) DD(15:0) (host) DA0, DA1, DA2, CS0-, CS1- Figure 5 - 9 Initiating an Ultra DMA Data Out Burst 2CYC 2CYC HSTROBE at host DD(15:0) at host HSTROBE at device DD(15:0) -
Page 39: Device Pausing An Ultra Dma Data Out Burst
AT INTERFACE DESCRIPTION DMARQ (device) DMACK- (host) STOP (host) DDMARDY- (device) HSTROBE (host) DD(15:0) (host) Figure 5 - 11 Device Pausing an Ultra DMA Data Out Burst DMARQ (device) DMACK- (host) STOP (host) IORDYZ DDMARDY- (device) HSTROBE (host) DD(15:0) (host) DA0, DA1, DA2, CS0-, CS1- Figure 5 - 12... -
Page 40: Device Terminating An Ultra Dma Data Out Burst
AT INTERFACE DESCRIPTION DMARQ (device) DMACK- (host) STOP (host) IORDYZ DDMARDY- (device) HSTROBE (host) DD(15:0) (host) DA0, DA1, DA2, CS0-, CS1- Figure 5 - 13 Device Terminating an Ultra DMA Data Out Burst 5 – 40... -
Page 41: Section 6 - Host Software Interface
HOST SOFTWARE INTERFACE SECTION 6 Host Software Interface The host communicates with the drive through a set of controller registers accessed via the host’s I/O ports. These registers divide into two groups: the Task File, used for passing commands and command parameters and the Control/Diagnostic registers. -
Page 42: Sector Count Register
HOST SOFTWARE INTERFACE Sector Count Register Holds the number of sectors to be sent during a Read or Write command, and the number of sectors per track during a Format command. A value of zero in this register implies a transfer of 256 sectors. A multi-sector operation decrements the Sector Count register. -
Page 43: Command Register
HOST SOFTWARE INTERFACE Command Register Contains code for the command to be performed. Additional command information should be written to the task file before the Command register is loaded. When this register is written, the BUSY bit in the Status register sets, and interrupt request to the host clears;... -
Page 44: Summary
HOST SOFTWARE INTERFACE Summary 6 – 44... -
Page 45: Control Diagnostic Registers
HOST SOFTWARE INTERFACE Control Diagnostic Registers These I/O port addresses reference three Control/Diagnostic registers: Alternate Status Register Contains the same information as the Status register in the Task File. However, this register may be read at any time without clearing a pending interrupt. Device Control Register Contains the software Reset bit and the Enable bit to enable interrupt requests to the host. -
Page 46: Reset And Interrupt Handling
HOST SOFTWARE INTERFACE Reset and Interrupt Handling Reset Handling One of three different conditions may cause a reset: power on, hardware reset or software reset. All three cause the interface processor to initialize itself and the Task File registers of the interface. A reset also causes a set of the Busy bit in the Status register. -
Page 47: Section 7 - Interface Commands
INTERFACE COMMANDS SECTION 7 Interface Commands The following section describes the commands (and any parameters necessary to execute them), as well as Status and Error register bits affected. Read Commands Read Sector(s) Read Verify Sector(s) Read Sector Buffer Read DMA Multi-word DMA Ultra DMA Read Multiple... -
Page 48: Read Commands
INTERFACE COMMANDS Read Commands Read Sector(s) Reads from 1 to 256 sectors, as specified in the Command Block, beginning at the specified sector. (A sector count of 0 requests 256 sectors.) Immediately after the Command register is written, the drive sets the BSY bit and begins execution of the command. -
Page 49: Read Dma
INTERFACE COMMANDS Read DMA Multi-word DMA Identical to the Read Sector(s) command, except that The host initializes a slave-DMA channel prior to issuing the command, Data transfers are qualified by DMARQ and are performed by the slave-DMA channel and The drive issues only one interrupt per command to indicate that data transfer has terminated and status is available. -
Page 50: Write Commands
INTERFACE COMMANDS If the Sector Count register contains 0 when the Set Multiple Mode command is issued, Read Multiple and Write Multiple commands are disabled; no error is returned. Once the appropriate action has been taken, the controller resets BSY and generates an interrupt. At power up, or after a hardware or software reset, Read Multiple and Write Multiple commands are disabled by default. -
Page 51: Write Dma
INTERFACE COMMANDS Write Multiple Performs similarly to the Write Sector(s) command, except that: 1. The controller sets BSY immediately upon receipt of the command, 2. Data transfers are multiple sector blocks and 3. The Long bit and Retry bit is not valid. Command execution differs from Write Sector(s) because: 1. -
Page 52: Set Feature Commands
INTERFACE COMMANDS Set Feature Commands Set Features Mode Enables or disables features supported by the drive. When the drive receives this command it: 1. Sets BSY, 2. Checks the contents of the Features register, 3. Clears BSY and 4. Generates an interrupt. If the value of the register is not a feature supported by the drive, the command is aborted. -
Page 53: Power Mode Commands
INTERFACE COMMANDS Power Mode Commands Standby Immediate – 94h/E0h Spin down and do not change time out value. This command will spin the drive down and cause the drive to enter the STANDBY MODE immediately. If the drive is already spun down, the spin down sequence is not executed. - Page 54 INTERFACE COMMANDS When enabling the Automatic Power Down sequence, the value placed in the Sector Count register is multiplied by five seconds to obtain the Time-out Interval value. If no drive commands are received from the host within the Time-out Interval, the drive automatically enters the STANDBY mode. The minimum value is 5 seconds. While the drive is in STANDBY MODE, any commands received from the host are accepted and executed as they would in normal operation, except that the spin motor is started if required to execute a disk command.
-
Page 55: Initialization Commands
INTERFACE COMMANDS Initialization Commands Identify Drive Allows the host to receive parameter information from the drive. When the command is received, the drive: 1. Sets BSY, 2. Stores the required parameter information in the sector buffer, 3. Sets the DRQ bit and 4. - Page 56 INTERFACE COMMANDS 7 – 56...
- Page 57 INTERFACE COMMANDS 7 – 57...
-
Page 58: Initialize Drive Parameters
INTERFACE COMMANDS Initialize Drive Parameters Enables the drive to operate as any logical drive type. The drive will always be in the translate mode because of Zone Density Recording, which varies the number of sectors per track depending on the zone. Through setting the Sector Count Register and Drive Head Register, this command lets the host alter the drive's logical configuration. -
Page 59: Seek, Format And Diagnostic Commands
INTERFACE COMMANDS Seek, Format and Diagnostic Commands Seek Initiates a seek to the track, and selects the head specified in the Command block. 1. Sets BSY in the Status register, 2. Initiates the Seek, 3. Resets BSY and 4. Generates an interrupt. The drive does not wait for the seek to complete before returning the interrupt. -
Page 60: S.m.a.r.t. Command Set
INTERFACE COMMANDS S.M.A.R.T. Command Set Execute S.M.A.R.T. The Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.) command has been implemented to improve the data integrity and data availability of hard disk drives. In some cases, a S.M.A.R.T. capable device will predict an impending failure with sufficient time to allow users to backup their data and replace the drive before data loss or loss of service. -
Page 61: Section 8 - Service And Support
Service and Support Service Policy Repairs to any DiamondMax™ 1750 drive should be made only at an authorized Maxtor repair facility. Any unauthorized repairs or adjustments to the drive void the warranty. To consistently provide our customers with the best possible products and services, Maxtor developed the Total Customer Satisfaction (TCS) program. - Page 62 A 24-hour seven-day-a-week Bulletin Board Service (BBS) is available. Use the BBS to access and download information and utilities maintained in the Maxtor data files, including utilities, drive specifications and jumper options. Modem settings are 14,400 Baud or lower, 8, 1, N.
