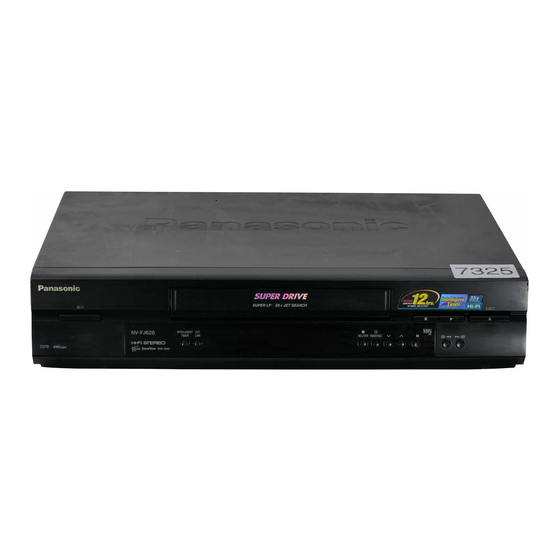

Operating Instructions
Video Cassette Recorder
Series (Hi-Fi)
NV-FJ630
Series (Hi-Fi)
NV-FJ626
Series (Hi-Fi)
NV-FJ623
Series (Hi-Fi)
y
•
Model:
NV-FJ626
NV-FJ630
Model:
NV-FJ631
NV-FJ623
'
Standard Accessories:
1 remote control
1 RF coaxial cable
1 mains lead
2 batteries, type R6
Contents
OSD = On Screen Display
VCR
= Video Cassette Recorder
TV
= Television
Please read through all these operating instructions
(especially the safety information) before connecting
or operating the VCR, or adjusting any settings.
Page
2
3
4
5
6
8
10
11
12
13
14
15
16
VQT9524
Advertisement
Table of Contents
Related Manuals for Panasonic NV-FJ630 Series
Summarization of Contents
Information
Warning and Important Information
Essential warnings and guidelines for safe and proper operation of the VCR.
Safety Information
Details European conformity, protection class, and VDE safety requirements.
Connections
Illustrates VCR connection diagrams for different models and ports.
Setting up Your VCR
Connecting and Setting up
Guide to connecting the VCR to a TV using Scart or coaxial cables.
Automatic Setting with Q Link
Automated TV channel tuning via Q Link connection for specific models.
Manual download start
Procedure for manually downloading TV data for specific models.
Automatic Setting without Q Link
Automatic TV channel tuning without Q Link, including country selection.
VCR Controls Overview
Menu Operation Navigation
Explains how to navigate the VCR's menu system using remote buttons.
Playback Functions
Details on playback, fast forward, rewind, search, and still playback.
VCR Operations
TV Operation with VCR Remote
Instructions for operating a connected Panasonic TV using the VCR remote.
Core VCR Operation
Basic VCR functions like ejecting, turning on/off, and selecting channels/modes.
Recording Procedures
Direct TV Recording
Starts recording the current TV programme directly via Q Link.
OTR Function
One Touch Recording for a set duration, extendable up to 240 minutes.
Tape Speed Selection
Explanation of SP, LP, and EP recording modes for different tape lengths.
Timer Recording with On Screen Menu
Programming timer recordings using the VCR's on-screen menu.
Timer Recording with ShowView
Setting timer recordings using ShowView codes for specific models.
Recording with Intelligent Timer Function
Uses past recordings to simplify programming future timer recordings.
Programme List Management
Displays stored timer recordings, allowing playback or deletion.
VCR Functions
Repeat Playback Function
Repeats playback of a cassette until the end of the recorded part.
Child Lock Function
Deactivates VCR and remote control buttons to prevent unintended use.
Playback Off Timer Function
Automatically stops playback after a preset time duration.
Intro Jet Scan Function
Plays the first 10 seconds of each recording for quick content finding.
VHS Index Search System
Searches tape for programme starts and automatically begins playback.
Language Setting
Allows selection of the OSD and menu language for the VCR.
Restart Automatic Settings
Reinitiates automatic channel tuning and setup procedures.
Restore Original Settings
Resets the VCR to its factory default 'shipping condition' settings.
MESECAM Setting
Configures the TV system for MESECAM broadcasts.
Tape Length Setting
Sets the default tape length for recording and playback.
Clock Setting
Manual or automatic setting of the VCR's internal clock and date.
On Screen Display (OSD) Settings
Configures display settings like aspect ratio (4:3, 16:9) and OSD visibility.
S-VHS Quasi Playback (SQPB)
Enables S-VHS Quasi Playback for S-VHS or S-VHS-ET recorded tapes.
NTSC Playback on PAL TV
Allows playback of NTSC format VHS tapes on a PAL TV.
Sound System Setting
Configures sound settings for NICAM stereo or mono broadcasts.
Power Save and Brightness Settings
Adjusts power saving modes and VCR display brightness.
Tuning Channels
Channel Order and Name Change
Modifies TV channel positions and assigns custom names to channels.
Add / Delete / Move a Channel
Manages the list of available TV channels by adding, deleting, or moving them.
Receiver Integration
Controls for External Recordings
Using EXT LINK to control timer recordings from satellite or digital receivers.
Decoder Connection and Setup
Connecting a Decoder
Guide for connecting a decoder to the VCR via Scart cable.
Set AV2 to Decoder
Assigns the AV2 input port to function as a decoder input.
Set the Channel to Decoder
Configures the VCR to decode scrambled channels from a connected decoder.
AV LINK Function
Switches between TV and video reception modes.
Troubleshooting Guide
Adjusting the Playback Picture
How to adjust tracking to fix distorted pictures or noise bars.
On Screen Displays Meaning
Explains common on-screen display messages and their meanings.
Picture or Sound Distortion
Diagnoses and resolves issues with distorted picture or sound quality.
Clock Correction Issues
Troubleshoots problems with automatic clock correction not working.
Remote Control Not Working
Addresses issues with the remote control not functioning correctly.
Recording Function Issues
Resolves problems related to recording and timer programming.
Special Features Overview
I-TIMER
Intelligent Timer function for easier programming of recurring recordings.
Easy Guide OSD
User-friendly on-screen display guiding through settings and functions.
Super VHS Quasi Playback (SQPB)
Plays back tapes recorded with S-VHS or S-VHS-ET format.
Super Long Play (EP)
Records up to three times longer duration compared to standard play.
AUTO Long Play
Automatically switches to LP mode if tape length is insufficient for SP.
Intro-Jet Scan
Plays the first 10 seconds of each recording for quick searching.
Jet Rewind
Fast rewinding of cassettes, achieving E180 rewind in 60 seconds.
Q Link
Enables VCR and TV communication for automatic tuning and standby.
External Link
Simple timer recording from satellite or digital receivers.
NTSC Playback
Allows playback of NTSC format VHS tapes on a PAL TV.
REC/OTR
One Touch Recording feature to set recording time easily.
VPS/PDC
Controls timer recording start/stop based on broadcast signals.
ShowView
Simplifies timer recording by using numeric codes.
