Dynex dx-uc202 - USB 2.0 PCMCIA Notebook Card Quick Setup Manual

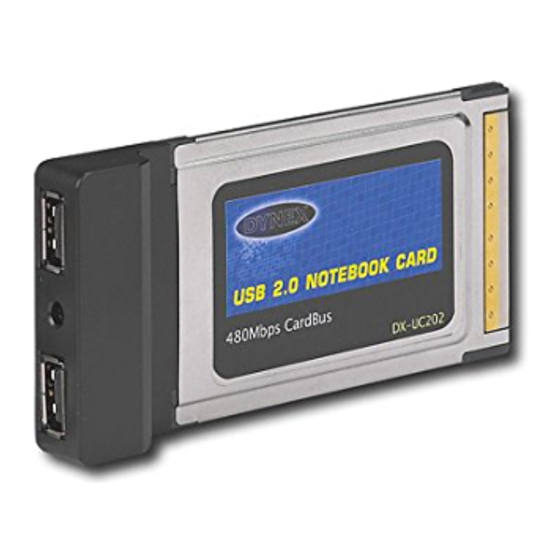

DX-UC202 USB 2.0 CardBus Adapter
Adaptateur CardBus USB 2.0 DX-UC202
Adaptador CardBus USB 2.0 DX-UC202
External power adapter plug
Connecteur de l'adaptateur
d'alimentation externe
Conector del adaptador de
alimentación externa
USB 2.0 ports
Ports USB 2.0
Puertos USB 2.0
Quick Setup Guide I Guide d'installation rapide I Guía de instalación rápida
32-bit CardBus, PCMCIA type II connector
Connecteur CardBus 32 bits, PCMCIA Type II
Conector CardBus, PCMCIA Tipo II de 32 bits

General description

Congratulations on your purchase of a DX-UC202 2-Port USB 2.0 CardBus
adapter. The USB CardBus Adapter provides two USB ports for connecting
high-speed mass storage devices, cameras, printers, and other USB devices
to a computer.

Package contents

• USB CardBus adapter
• Quick Setup Guide
Minimum system requirements
PC or Macintosh:
• One available CardBus or PCMCIA type II slot
• Windows 7, Windows Vista, Windows XP SP1, Windows 2000 SP4, or
Mac OS X 10.2.0 or higher
Installing the hardware
1 Before touching the USB CardBus adapter, touch an unpainted metal
portion of the computer case to safely discharge any static electricity
build-up that may damage the adapter.
2 Slide the adapter into your notebook's PC Card slot until it is firmly seated,
then reconnect all cables.
3 After the adapter is installed, it automatically installs the correct driver and
displays confirmation and the adapter is ready for use.
Note: Each USB 2.0 port may draw maximum 500mA current, with no external power
supply needed in most cases. However, if you connect a high-powered device, which
is over the limit of PCMCIA slot, a 5V AC/DC power adapter is needed (not included).
One-year limited warranty
Visit www.dynexproducts.com for details.
© 2010 BBY Solutions, Inc., All Rights Reserved.
DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other
products and brand names are trademarks of their respective owners.
