Quick reference guide

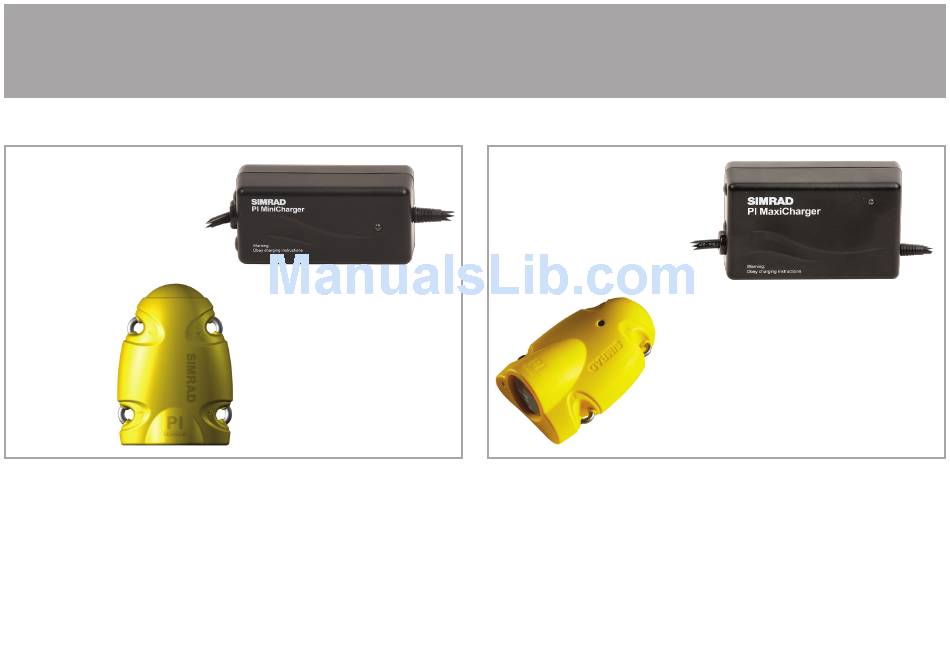

Simrad PI MiniCharger / MaxiCharger
PI MiniCharger for S-type sensors (0,4A)
Use with S-Type sensors:
PI Depth
PI Catch
PI Temperature
PI Bottom Contact
PI Remote
PI Mini-R
Warning: Do not charge
sensors with ambient
temperatures below 5˚C, as
explosive gasses may develop.
1) Observe the instructions
provided with the charger. Read
the instructions before you
You can use this
charger to charge L-Type
sensors, but this is not
recommended.
attempt to charge a sensor!
2) Before you connect the
charger to the sensor, check that
the charging lamp is yellow.
3) Ensure that the charging
lugs on the sensor are not
shorted with wire, wet rope etc.
PI MaxiCharger for L-type sensors (1.5A)
Use with L-Type sensors:
PI Height
PI Spread
PI Seine Sounder
PI Geometry
4) Once the charger has
been connected to the sensor,
observe that the lamp turns
orange/red. Fast charging is now
in progress.
5) When the battery reaches
90% capacity, the lamp turns
Warning: DO NOT charge
S-Type sensors with this
charger, as this will damage
the sensors!
green with yellow flashes.
6) When the battery is fully
loaded, the lamp turns green.
Trickle charging is now active.
You can safely allow trickle
charging for long periods of
time.
310274 / Rev.C / October 2008
