Polaris Tail Sweep Pro Installation Instructions

1. Introduction
Tail Sweep Pro is the latest in technology from Polaris
that enhances the sweeping flow of the sweephose while
preventing squirting from the pool. If you have any
questions or if any parts are missing, please call your
local Polaris distributor for assistance. For technical
assistance, please contact our Technical Support Depart-
ment at 1.800.822.7933.
2. Installation Instructions
1. Turn off the booster pump followed by the filtra-
tion pump and remove the cleaner from the pool.
2. Remove the existing scrubber from the end of the
sweep hose (if present) and discard.
3. Ensure there is a wear ring positioned between the
orifice tip and the first weight on the sweep hose.
If necessary, reposition the first wear ring on the
sweep hose so that it is between the orifice tip cap
and the first weight, as shown in Figure 1.

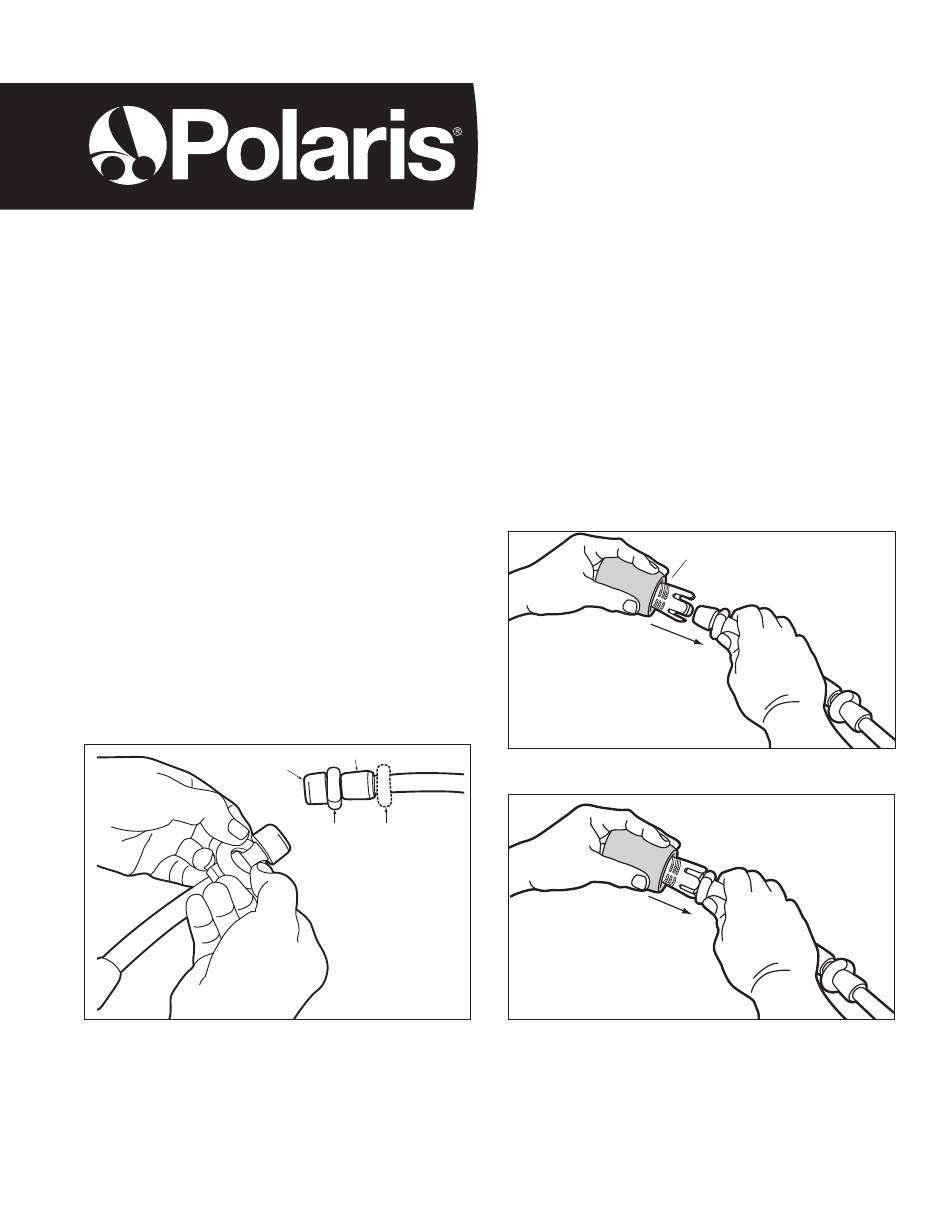

Figure 1. Reposition the First Wear Ring
Zodiac Pool Systems, Inc.
2620 Commerce Way, Vista, CA 92081
1.800.822.7933 | www.polarispool.com
Tail Sweep Pro
First Weight
Orifice Tip
Cap
Wear Ring - Wear Ring -
Original Position
New Position
(prior to 11/12)
Installation Instructions
®
4. Slide the first weight towards the orifice tip cap to
loosely capture the first wear ring. See Figure 1.
5. Press the Tail Sweep Pro onto the sweep hose
assembly until it snaps into place. See Figures 2
and 3.
6. Turn on the filtration pump followed by the
booster pump, and verify the sweep hose flow
moves in a gentle sweeping motion rather than
a rapid whipping action. Water should no longer
spray out of the pool.
Figure 2. Position the Tail Sweep Pro on the Orifice
Tip Cap
Figure 3. Install the New Tail Sweep Pro
All other trademarks referenced herein are the property of their respective owners.
Tail Sweep Pro
Press the Tail Sweep Pro on
the Sweep Hose Assembly
until it snaps in place.
©2014 Zodiac Pool Systems, Inc. Polaris and the Polaris 3-wheeled
®
cleaner design are registered trademarks of Zodiac Pool Systems, Inc.
H0365800 Rev C
