2409 Plantside Drive
Jeffersontown, KY 40299
Customer Service: 800-626-1126
www.rev-a-shelf.com
I-ML-HDCR-0113

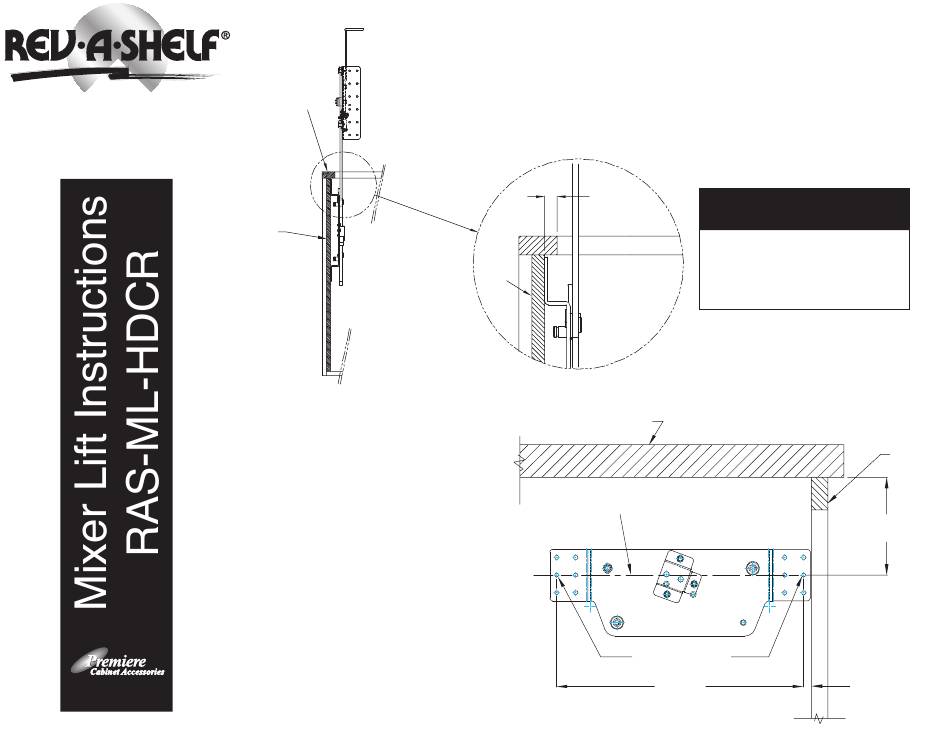

FIG. A
CABINET FRONT,
FACE FRAME
SUPPORT PANEL
FURNISHED BY CONSUMER
HGT
– 6"
WIDTH
– FULL DEPTH OF CABINET
INSIDE OF
CABINET,
LOOKING
DOWN
FROM
THE TOP
Step 2 - Installing Side Mounting Brackets - See FIG. B
Mark and Pre-drill two 3/32" pilot holes 1/2" deep into the
side support panel.The first hole should be 3/8" from inside of
face frame (front of cabinet on frameless cabinet), and 4-1/2"
down from the top of the cabinet).
The second hole is located parallel from the first hole location
11-3/8" towards rear of cabinet. Mount side mounting bracket to
cabinet side panel by aligning outside middle hole locations with
the holes that you have just pre-drilled. Fasten with 2 - #10 x 3/4"
wood screws. Fasten 6 additional #10 x 3/4" wood screws to additional
locations on side mount bracket. NOTE: Side mounting brackets
must be installed parallel with the top of the cabinet (level) for
proper function. Repeat this step for other side mounting bracket.
NOTE 2A
Distance from top of cabinet is determined by height and length of
accessory. 4-1/2" will allow adequate clearance for 6 qt. Kitchen Aid®
Stand Mixers. Side mounts can be positioned higher if using lift for
smaller appliances.
Step 1 - Installing Side Support Panels for Face Frame Cabinets – See FIG. A,
(Support Panels not included) Align top of side panel with top of cabinet. Side panels should
be 6" high and run the total depth of the cabinet.The maximum thickness of the side panel
should equal the face frame overlay.The minimum thickness of the side panel should
allow for a 1/2" max recess.
1/2" MAX
RECOMMENDED
RECESS.
SUPPORT
PANEL
FIG. B
1-1/2" [38mm] COUNTER TOP
TO INSURE PROPER ALIGNMENT, USE
A LEVEL TO ESTABLISH THIS LINE
DRILL (2) – 3/32" PILOT HOLES
W A R N I N G
This is a spring loaded
product and can cause
severe harm if not handled
properly during installation.
11-3/8"
(289 mm)
1-1/2" [38mm]
FACE RAIL
4-1/2"
(114 mm)
3/8"
(10 mm)
