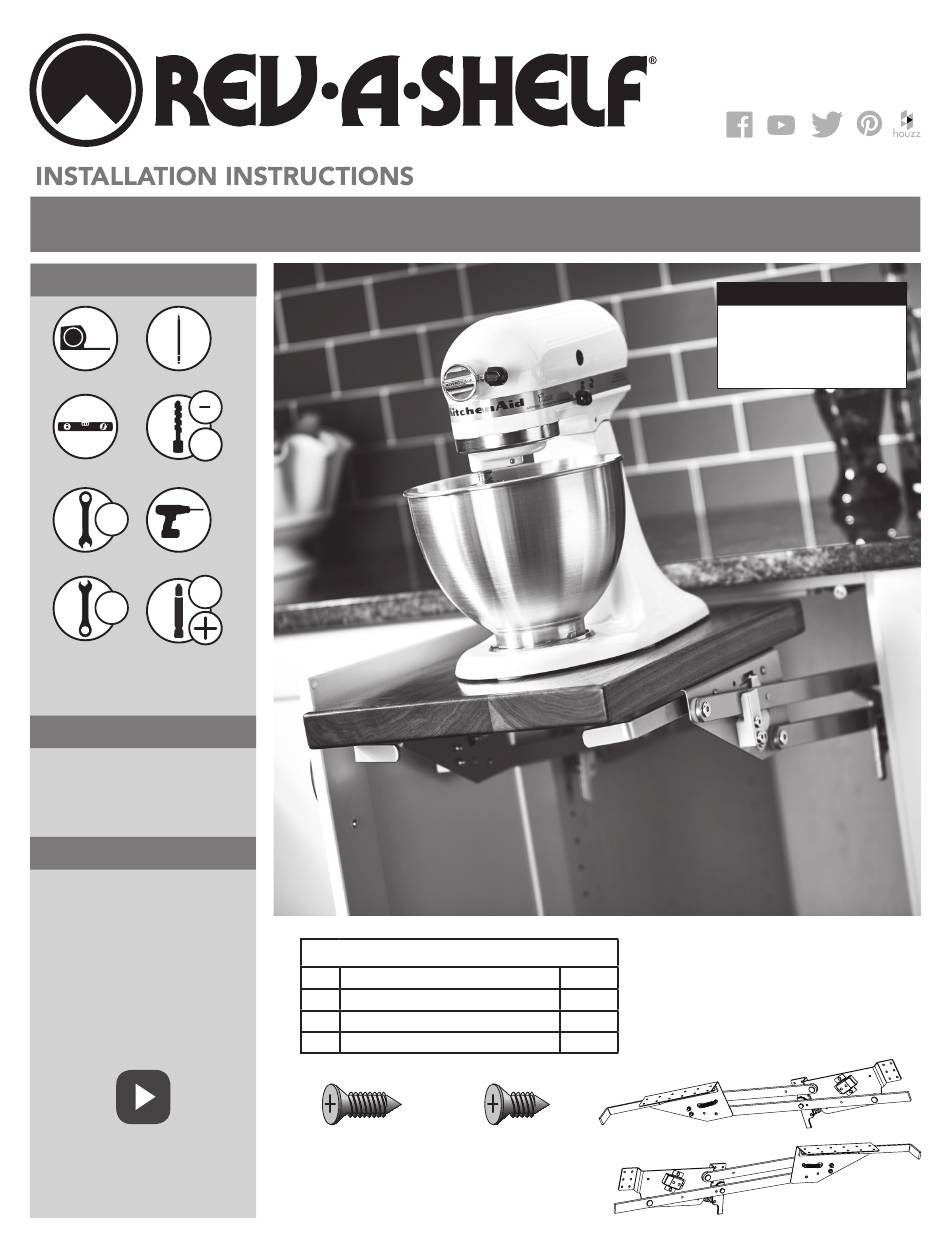

RAS-ML SERIES HEAVY DUTY MIXER LIFT
TOOLS REQUIRED:
3
32
3
mm
10
mm
#2
12
mm
ESTIMATED ASSEMBLY TIME:
30–45 MIN
CARE AND MAINTENANCE:
• Clean with a damp cloth and
wipe parts dry
• Lubricate pivot points as
needed
WATCH A TUTORIAL OF THIS
PRODUCT BEING INSTALLED
WWW.REV-A-SHELF.COM/VIDEOS
Parts List
No.
Description
A
#10 x 5/8" Wood Screws
B
#10 x 1/2" Wood Screws
C
Side-Mounting Brackets (L & R)
A.
INSTALLATION INSTRUCTIONS: RAS-ML SERIES HEAVY DUTY MIXER LIFT
Qty
16
12
2
B.
C.
LEFT & RIGHT
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
WARNING
This is a spring loaded
product and can cause
severe harm if not handled
properly during installation.
*Mixer Lift shelf not included
I-RAS-ML-0318
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Rev-A-Shelf RAS-ML Series
- Page 1 Parts List Description #10 x 5/8” Wood Screws #10 x 1/2” Wood Screws WATCH A TUTORIAL OF THIS Side-Mounting Brackets (L & R) PRODUCT BEING INSTALLED WWW.REV-A-SHELF.COM/VIDEOS LEFT & RIGHT INSTALLATION INSTRUCTIONS: RAS-ML SERIES HEAVY DUTY MIXER LIFT I-RAS-ML-0318...
- Page 2 Wall Wall (38 mm) (41 mm) (45 mm) mounting brackets measurement “D” minus 1-1/4” (32MM) (See Fig D). SHELF 13-1/2” (343 13-1/4” (337 11-3/4” 11-1/2” 11-1/4” WIDTH (299 mm) (292 mm) (286 mm) Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 3 MOUNTING THE MIXER LIFT SHELF (REFER TO FIGURE D) FIGURE D STEP 4 NOTE: Pre-drilling first (6) hole locations will ensure proper UNDERSIDE OF function of mixer lift. MIXER LIFT SHELF A. Mark (2) hole locations for the front screws by measuring in 1-3/16”...
- Page 4 Anything over 60 lbs will void the warranty. FIGURE G 1-1/4” (32MM) 10-1/2” (266MM) IDEAL 22-7/16” MEASUREMENTS (570MM) 1-3/16” (30MM) 2-1/4” (56MM) 4 1/2” (114MM) 17-9/16” (446MM) TENSION ADJUSTMENT 18-11/16” (475MM) 1-1/2” (39MM) LOWEST POINT 4-3/8” (112MM) Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 5 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com 800-626-1126 INSTRUCCIONES DE INSTALACIÓN / LES INSTRUCTIONS D’INSTALLATION ELEVADOR DE BATIDORA DE TRABAJO PESADO SERIES RAS-ML SÉRIES RAS-ML DU SYSTÈME ESCAMOTABLE DE MIXEUR ROBUSTE Herramientas requeridas: ADVERTENCIA/ Outils Requis: AVERTISSEMENT: Precaución: este es...
- Page 6 ANCHO DE LA REPISA en mesurant la largeur entre les supports de montage sur le côté 13-1/2” (343 mm) 13-1/4” (337 mm) (299 mm) (292 mm) (286 mm) LARGEUR DE L’ÉTAGÈRE “D” moins 1-1/4” (32MM) (Voir l’Illustration D). Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 7 MONTANDO LA REPISA PARA EL ELEVADOR DE LA BATIDORA (REFIÉRASE A LA FIGURA D) MONTAGE DE L’ÉTAGÈRE DU MÉCANISME ESCAMOTABLE DU MIXEUR (VOIR L’ILLUSTRATION D) PARTE INFERIOR DEL ELEVADOR DE NOTA: Primero pre taladre seis ubicaciones de orificios para LA REPISA DE LA BATIDORA asegurar el funcionamiento adecuado del elevador de la batidora.
- Page 8 MEDIDAS IDEALES (570MM) MESURES IDÉALES 1-3/16” (30MM) 2-1/4” (56MM) 4 1/2” (114MM) 17-9/16” (446MM) Ajuste de la tensión 18-11/16” Réglage de la tension (475MM) 1-1/2” (39MM) Punto más bajo 4-3/8” (112MM) Le point le plus bas Customer Service: 800-626-1126 | rev-a-shelf.com...
