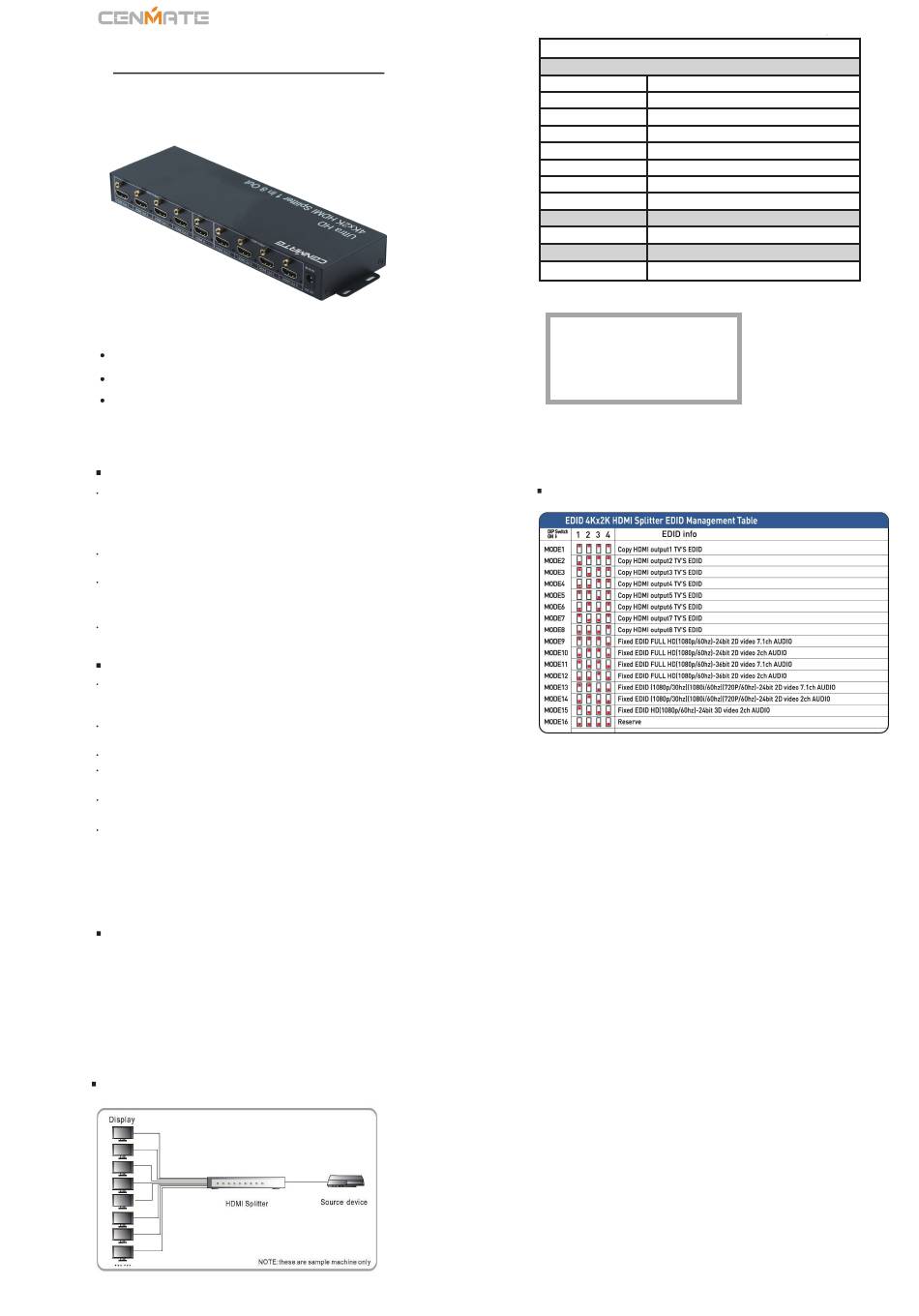

cenmate -HD108SP4K User Manual

User Manual
4K HDMI 1:8 Splitter
Model No.: CENMATE-HD108SP4K
Video bandwidth: 340Mhz/ 10.2Gbps
Rated input: AC: 100-240V,50Hz/60Hz
Rated output: 5V
Product Description:
CENMATE-HD108SP4K is a 4K X 2K HDMI splitter that
connects one device that supports HDMI to multiple display
devices, such as TVS, monitors, projectors, and outputs the
same screen simultaneously.
It supports 4,096 × 2,160 resolution of 4K, UHD(4K Ultra High
Definition), and frequency band of 30Hz.
It supports 1x8 (input X output), allow you to connect one HDMI
device (PS3, DVD, set-top box, PC, etc.) to sixteen display devices
at most.
EDID(Extended Display ldentification Data) manual setup allows
you to adjust the resolution of the connected Display device.
Product Feature:
It supports HDCP(High-bandwidth Digital Content Protection),
make the Digital Content to play stably by the video copyright
Protection technology.
Connect one HDMI device (PS3, DVD, set-top box, PC, etc.)
to multiple display devices, output the same video and sound.
Supports playing 3D video (Blu-ray, FULL-HD DVD player, etc.).
No need separate installation,it can be used immediately after
connection.
An EDID manual dip switch is provided to enable resolution
adjustment of the display device to which it is connected.
The LED on the front of the main body provides a quick view
of the power on/off status and the ports in use.
How to use the product:
1. Connect the HDMI device to the input port of the
CENMATE-HD108SP4K product (PS3, DVD, set-top box, PC, etc.)
2. Connect the multiple display devices such as TV, monitors,
and projectors to the HDMI output port.
3. Connect the adapter of the product.
4. If the resolution of the display device is different, please set it by
using the EDID dip switch which is located on the front of the product.
Diagram of product
(Duplicate to the connected display device)
Specification of product:
Model No: CENMATE-HD108SP4K
Interface
HDMI Resolution 4Kx2K/3D Video/1080p/1080i/720p/576p/576i/480p/480i
Support video color bit Deep Color 24bit / 36bit
Support audio format LPCM/Dolby-AC3/DTS7.1/DSD
340Mhz /10.2Gbps
Video bandwidth
Device operating humidity range 5~90%RH
Device operating temperature range -5 to +35°C(+23 to +95°F)
1.4
HDMI version
1.3
HDCP version
Power
AC Input(50Hz.60Hz) 100-240V;Output :5V
DC Adapter
Physical specification
Product material Metal (steel)
The package includes:
4K HDM Splitter 1x8
User Manual
DC 5V Power Adapter
EDID DIP SWITCH SETTING
