Load cell transmitter ATO-LCTR-OA is made of aluminum alloy, output standard signal 0-5V/ 0-10V/ 4-20mA/
0-20mA, has linear compensation, humidity compensation, external zero debugging, external span debugging,
input overload protection and output short circuit protection functions.
I. Specification:
Model
Accuracy
Input signal
Excitation voltage for load cell
Output signal (DC) *
Power supply
Sampling frequency

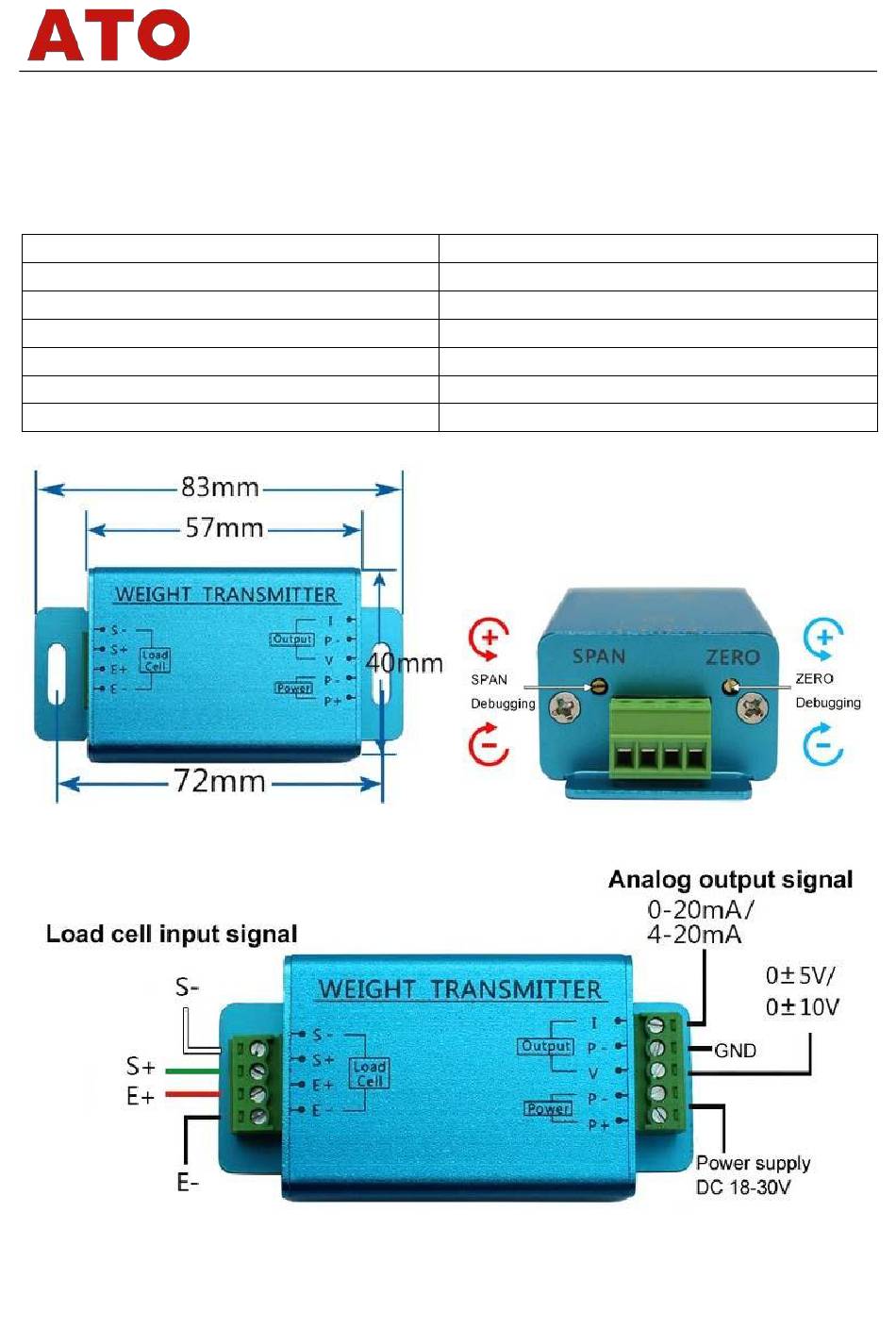

II. Dimensional drawing:
III. Wiring diagram:
Load Cell Transmitter User Manual
ATO-LCTR-DY510
±0.05%FS
0-20mV
DC 5-15V
0-±5V/0-±10V/4-20mA/0-20mA
DC 18-30V
≥100KHZ
Load Cell Transmitter
1
Advertisement
Related Manuals for ATO ATO-LCTR-DY510
Summary of Contents for ATO ATO-LCTR-DY510
- Page 1 Load Cell Transmitter Load Cell Transmitter User Manual Load cell transmitter ATO-LCTR-OA is made of aluminum alloy, output standard signal 0-5V/ 0-10V/ 4-20mA/ 0-20mA, has linear compensation, humidity compensation, external zero debugging, external span debugging, input overload protection and output short circuit protection functions.
- Page 2 Load Cell Transmitter IV. Calibration example for output current signal It is known that the object weight is 100kg, the load cell capacity is 500kg, and the output current signal is 4-20mA. Operation steps: → No-load, debug zero to 0.3 mA →...
