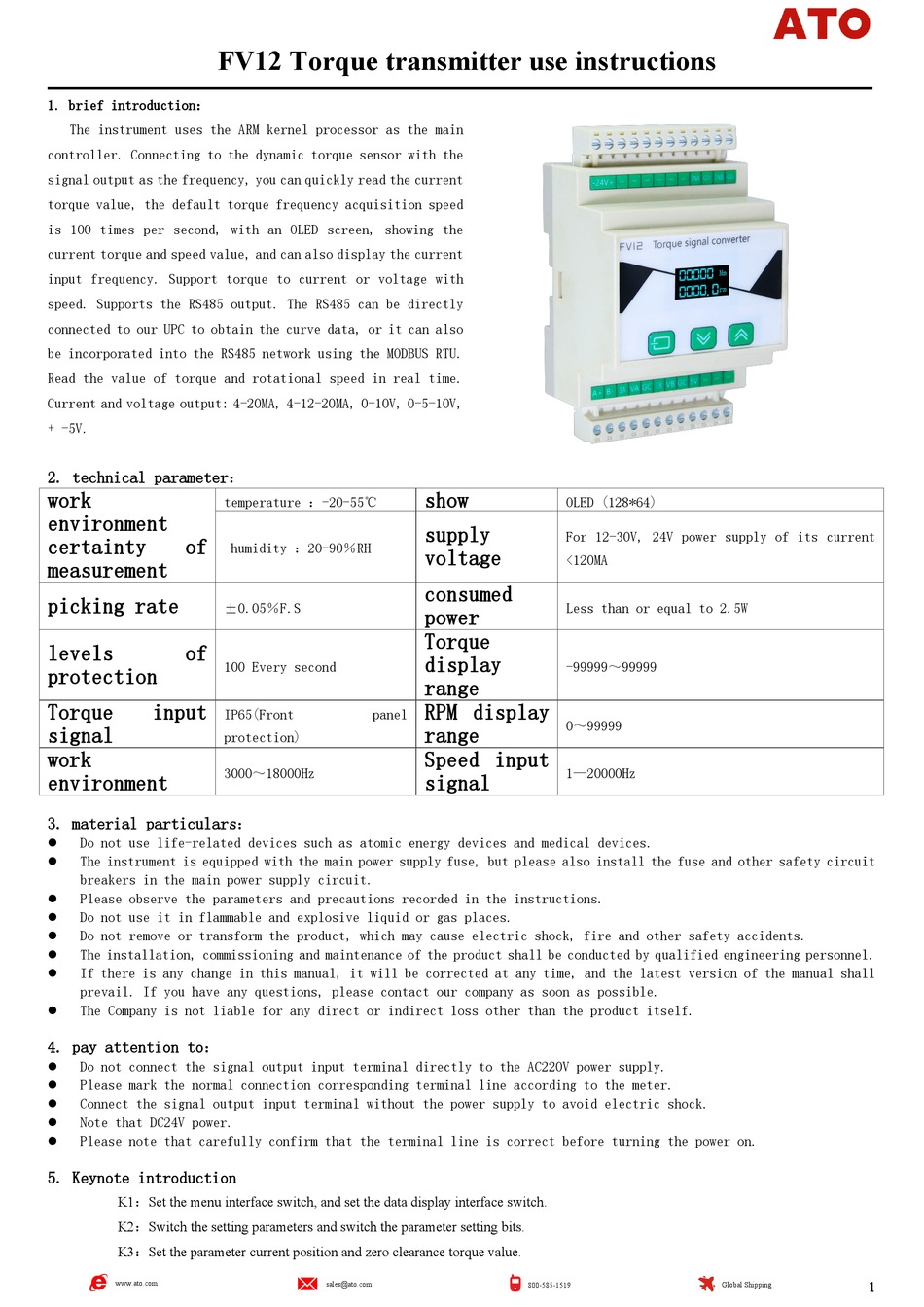

FV12 Torque transmitter use instructions

1. brief introduction

The instrument uses the ARM kernel processor as the main
controller. Connecting to the dynamic torque sensor with the
signal output as the frequency, you can quickly read the current
torque value, the default torque frequency acquisition speed
is 100 times per second, with an OLED screen, showing the
current torque and speed value, and can also display the current
input frequency. Support torque to current or voltage with
speed. Supports the RS485 output. The RS485 can be directly
connected to our UPC to obtain the curve data, or it can also
be incorporated into the RS485 network using the MODBUS RTU.
Read the value of torque and rotational speed in real time.
Current and voltage output: 4-20MA, 4-12-20MA, 0-10V, 0-5-10V,
+ -5V.
2. technical parameter:
work
environment
certainty
of
measurement
picking rate
levels
of
protection
Torque
input
signal
work
environment
3. material particulars:
Do not use life-related devices such as atomic energy devices and medical devices.
The instrument is equipped with the main power supply fuse, but please also install the fuse and other safety circuit
breakers in the main power supply circuit.
Please observe the parameters and precautions recorded in the instructions.
Do not use it in flammable and explosive liquid or gas places.
Do not remove or transform the product, which may cause electric shock, fire and other safety accidents.
The installation, commissioning and maintenance of the product shall be conducted by qualified engineering personnel.
If there is any change in this manual, it will be corrected at any time, and the latest version of the manual shall
prevail. If you have any questions, please contact our company as soon as possible.
The Company is not liable for any direct or indirect loss other than the product itself.
4. pay attention to:
Do not connect the signal output input terminal directly to the AC220V power supply.
Please mark the normal connection corresponding terminal line according to the meter.
Connect the signal output input terminal without the power supply to avoid electric shock.
Note that DC24V power.
Please note that carefully confirm that the terminal line is correct before turning the power on.

5. Keynote introduction

:Set the menu interface switch, and set the data display interface switch.
:Switch the setting parameters and switch the parameter setting bits.
:Set the parameter current position and zero clearance torque value.
www.ato.com
temperature :-20-55℃
humidity :20-90%RH
±0.05%F.S
100 Every second
IP65(Front
panel
protection)
3000~18000Hz
sales@ato.com
show
OLED (128*64)
supply
For 12-30V, 24V power supply of its current
voltage
<120MA
consumed
Less than or equal to 2.5W
power
Torque
display
-99999~99999
range
RPM display
0~99999
range
Speed input
1—20000Hz
signal
