Tools Required: Flat-tip & Phillips-head screwdrivers, hog ring pliers and rings, wire cutter pliers, 12 & 14mm
socket, razor blade, contact cement spray adhesive.

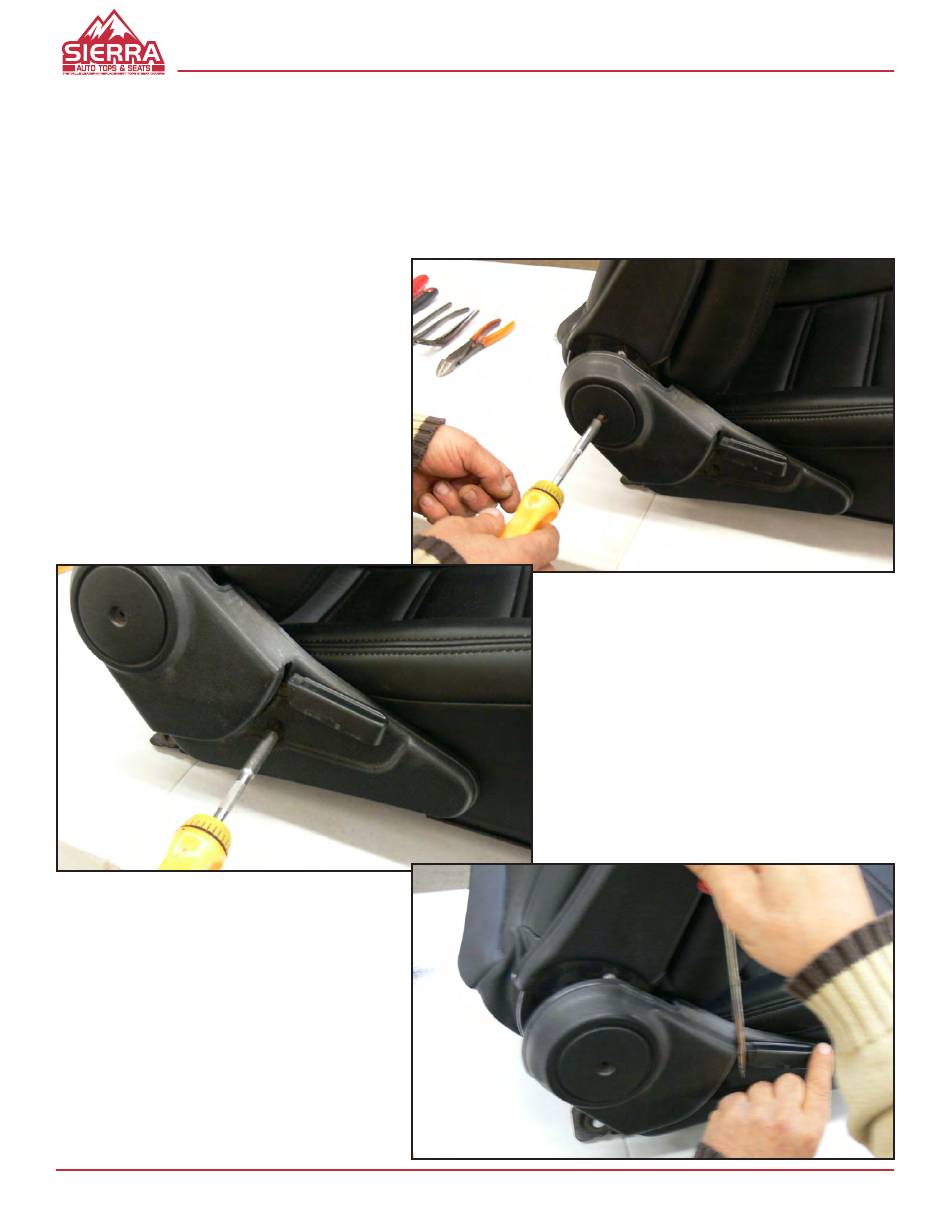

1 Using a Phillips head screwdriver,
remove screws to detach side plastic
covers.
3 Force out seat lever cover.
Installation Tips: Mazda Miata 1989-1997
1989-1997 MAZDA MIATA
SEAT COVER INSTALLATION TIPS
2 Remove screw under lever.
1
Vehicle Application: Mazda Miata 1989-1997
© Sierra Auto Tops & Seats
Advertisement
Related Manuals for Sierra 30-18-MIA-001
Summary of Contents for Sierra 30-18-MIA-001
- Page 1 1 Using a Phillips head screwdriver, remove screws to detach side plastic covers. 2 Remove screw under lever. 3 Force out seat lever cover. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 2 Vehicle Application: Mazda Miata 1989-1997 4 Remove plastic cover. 5 Once cover is removed, continue removing screws from bracket. 6 Force-out side plastic cover. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 3 Vehicle Application: Mazda Miata 1989-1997 7 Now remove screws from other side. 8 Using a 14mm socket, remove bolt screws to detach seat bottom from backrest. 9 Remove backrest. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 4 11 Using wire cutter pliers, cut off the metal hog rings to detach cover from seat pan. 12 Continue removing all the hog rings along the side CAREFULLY. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 5 14 Using a flat tip screwdriver, remove the “O” ring spacer and plastic cover. 15 Separate cover from seat pan. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 6 17 Using hog pliers and rings, attach under side of cover to seat pad. 18 Apply adhesive to cover. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 7 19 Now continue applying adhesive to pad. 20 After 5 minutes of drying time attach cover to pad. 21 Using hog ring pliers and rings begin attaching cover to seat pan. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 8 23 Using a razor blade, CAREFULLY cut-out round slots for seat track screw receivers. 24 Attach plastic cover with “O” ring spacer to seat bracket. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 9 “SEAT BACK” 27 Using wire cutter pliers, cut metal hog rings. Unfold side flaps to start removing cover from seat pan. Begin removing the hog rings. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 10 Vehicle Application: Mazda Miata 1989-1997 28 Unhook corner flap from screw receiver. 29 Continue to cut metal hog rings from inner center section. 30 Continue removing the remaining hog rings from insert section. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 11 Vehicle Application: Mazda Miata 1989-1997 31 Remove insert pad from seat pan. 32 Once the insert pad is removed, remove the remaining hog rings. 33 Continue removing the hog rings from headrest area. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 12 Vehicle Application: Mazda Miata 1989-1997 34 Completely remove cover from seat pad. 35 Start to install replacement cover at top of headrest area. 36 Cut plastic cord piping to sleeve size length. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 13 Vehicle Application: Mazda Miata 1989-1997 37 Begin to hog ring cover to pan. 38 Using hog ring pliers, begin tightening and securing rings. 39 Insert plastic cord. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 14 Vehicle Application: Mazda Miata 1989-1997 40 Once plastic cord is in place continue applying hog rings. 41 Insert plastic cord. 42 Apply hog ring to side flaps. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 15 Vehicle Application: Mazda Miata 1989-1997 43 Continue inserting plastic cords. 44 Using a razor blade CAREFULLY cut-out round slot for screw receiver. 45 Insert screw receiver in pre-cut hole from cover. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 16 46 Apply hog rings to top portion of seat to completely seal and enclose pad. 47 Cut-out slots for bracket to attach. 48 View of cuts from other side for bracket. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
- Page 17 Vehicle Application: Mazda Miata 1989-1997 49 Secure bracket to seat frame. 50 Assemble together with seat bottom. Seat Cover products are produced from fabric-backed vinyl textiles imported from China. Installation Tips: Mazda Miata 1989-1997 © Sierra Auto Tops & Seats...
