ERGOTECH 100-D28-B33 Installation Instructions

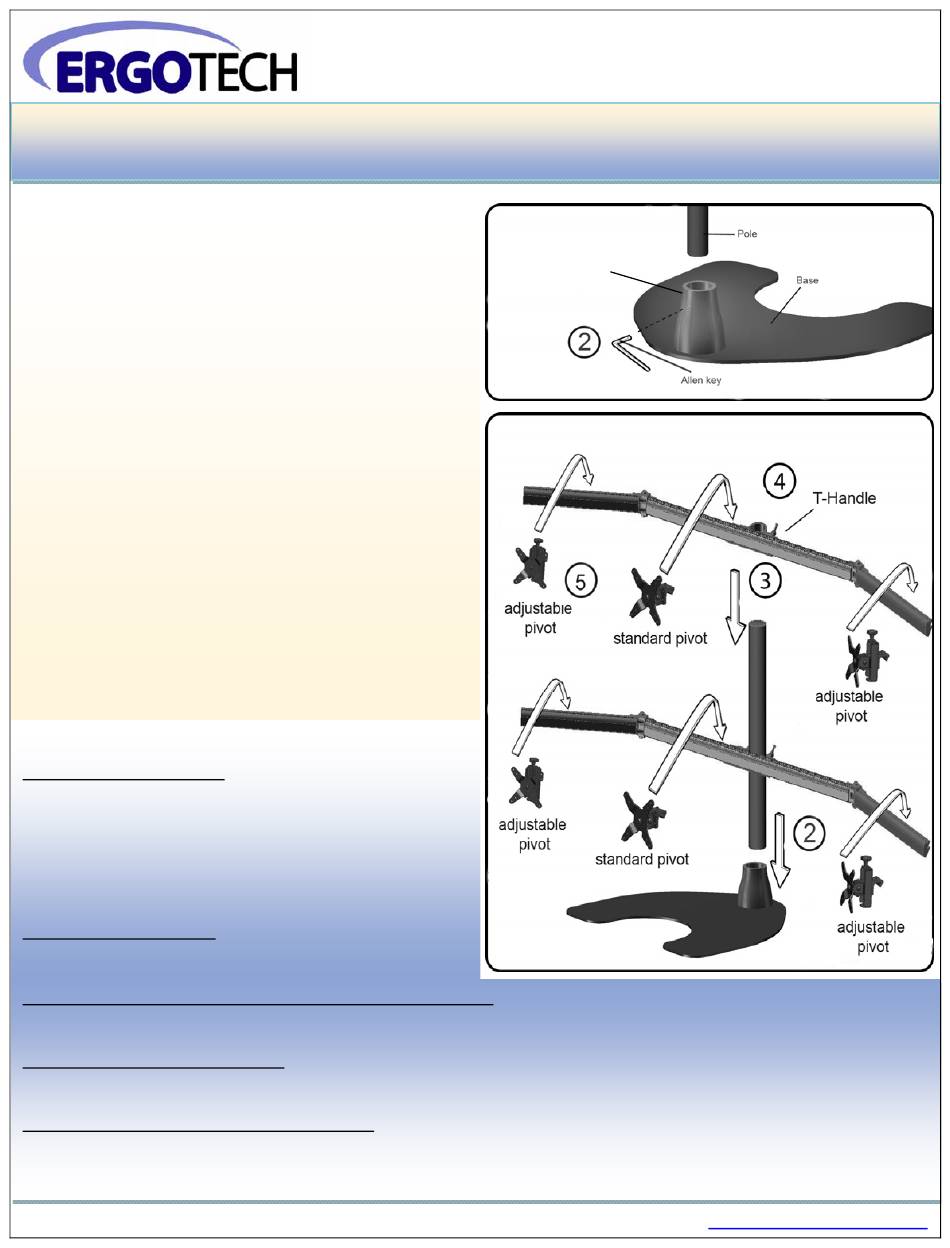

1. Remove the base from the box and place it on a flat
surface.
2. Insert the pole into the cone by threading the pole onto
Special Interest
the PEM stud on the base and then tightening the set
Articles:
screw with the 3mm Allen key provided. Be certain the
pole is fully seated and tightened into the cone and the
set screw is securely tightened..
• Add a highlight
or your point of
3. Place the arm assembly over the pole with the grooves
interest here.
in the extrusions facing up.
• Add a highlight
4. Tighten the T-handle on the back side of the pole clamp
or your point of
to hold the arm assembly securely on the pole.
interest here.
5. Attach quick release pivots to back of each monitor with • Add a highlight
or your point of
screws provided. Be sure that silver release button is
interest here.
toward the top of the monitor.
6. Starting with the center monitor (standard pivot), place it
onto the middle
approximately 45 degrees and than down until the silver
button engages the groove and clicks down into place.
Repeat this process with the two lateral monitors (micro-
height adjustable pivots).
7. Repeat steps 3- 6 for the upper tier of monitors.
To adjust monitors:
To slide along extrusion: Lift the monitor from the
bottom until it slides freely along the extrusion groove
and then slowly release your support until it drops back
into its secured position. The monitor will not slide
easily until weight is removed from the quick release
clip by lifting the bottom slightly as describe above.
Left/Right and Up/Down: Grasp monitor with both
hands and adjust to desired position.
To tension the vertical adjustment to the weight of monitor: Tighten the 5mm bolt on the right side of the pivot
with the Allen key provided.
To tile the monitors horizontally: Turn the handle on the top of the micro-height adjustable pivots until the three
monitors are properly aligned.
To remove the monitors from the extrusions: Take the weight from the monitor with one hand on the bottom and
tip it back slightly while using the other hand to lift the top of the silver release button. Lift up and back and this
will release the monitor from the stand.
OCT-08
Installation Instructions
Product # 100-D28-B33 – HD Hex Desk Stand
extrusion by tipping
Cone
it back
ERGOTECH GROUP, INC.
8 Westchester Plaza
Elmsford, NY 10523
914­347­3800
www.ergotechgroup.com
