ERGOTECH Apex Multi Series Installation Instructions

1) Select the mounting location for the base unit. Follow the appropriate fastening instructions for your
particular interface (slat wall or flush mount).

Flush Mount:

The flush mounting plate can be secured with either screws or nuts and bolts depending on the under the
surface accessibility. If possible, we recommend nuts and bolts.

Slat Wall:

Place mounting bracket on a flat surface.
Remove cable management cover by sliding upward. Check to make sure wing nuts on lower mounting
bracket are loose enough for bracket to slide freely in slot.
Mount slatwall bracket to slatwall by hooking the lower bracket on slatwall first, then extending to latch
upper bracket to farthest available slat from the lower bracket. Tighten onto slatwall using the cam
handles. Cam handles operate by holding them vertically and spinning clockwise. Continue until snug
and then lock into place by pressing handle down into a horizontal position. If unable to lock down firmly,
loosen handle by spinning counterclockwise a few turns and then engage the handle down. DO NOT
OVERTIGHTEN
Installation Instructions
Apex Multi Series

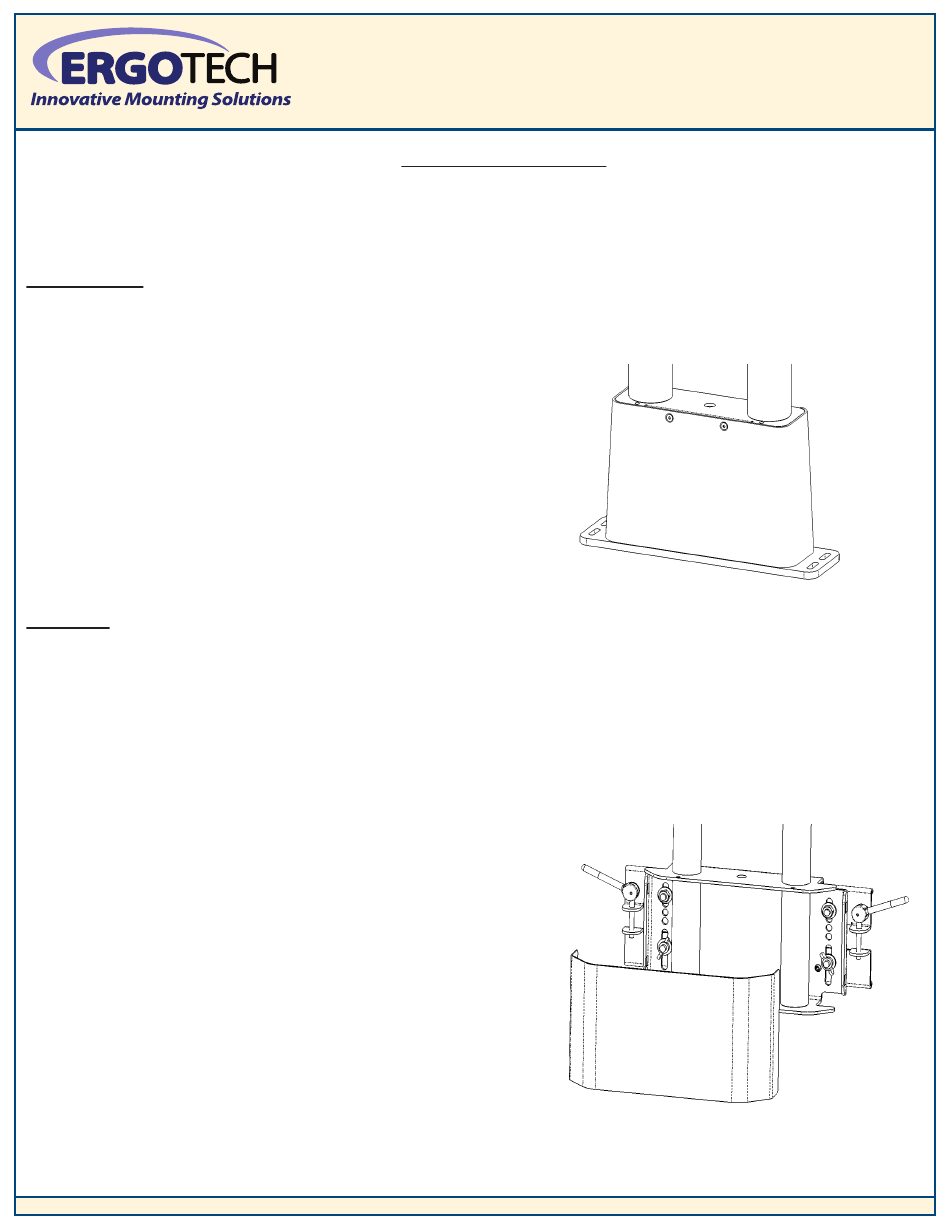

Fig .2
Fig .1
