Quick Links

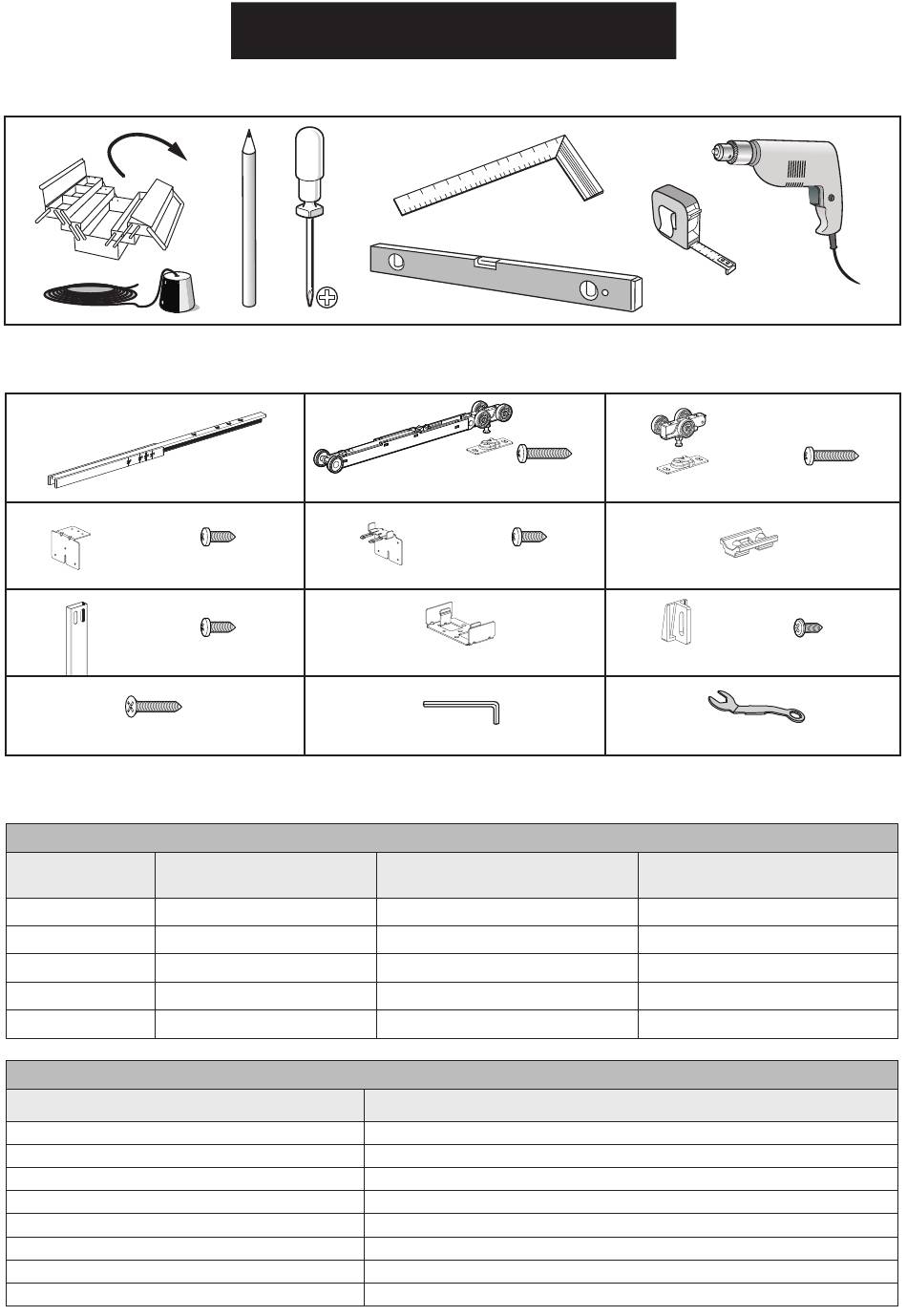

TOOLS REQUIRED
HARDWARE INCLUDED
(x1)
(x1)
(x4)
ST3.5x32 (x3)
PREPARE THE ROUGH OPENING
Nominal
Door Height
80"
84"
96"
108"
Custom
Nominal Door Width
24"
26"
28"
30"
32"
34"
36"
Custom
PRE INSTALLATION
-
ST4.2x19 (x3)
ST4.2x19 (x8)
Height of Rough Opening (Table 1)
Minimum Height of
Rough Opening
84-1/2"
88-1/2"
100-1/2"
112-1/2"
Door Height + 4-1/2"
Width of Rough Opening (Table 2)
(x1)
ST5.5x32 (x2)
ST4.2x19 (x1)
(x1)
(x2)
(x1)
Bracket Fastener Height
from finished floor
80-3/4"
84-3/4"
96-3/4"
108-3/4"
Door Height +3/4"
(x1)
(x2)
Bracket Fastener Height
from sub-floor
Door Height +1-1/2"
Width of Rough Opening
49"
53"
57"
61"
65"
69"
73"
(2 X Door Width) + 1"
ST5.5x32 (x2)
(x2)
ST4.2x13 (x2)
(x1)
81-1/2"
85-1/2"
97-1/2"
109-1/2"
Advertisement
Related Manuals for Villar Home Designs YMXT-XC39
Summary of Contents for Villar Home Designs YMXT-XC39
- Page 1 PRE INSTALLATION TOOLS REQUIRED HARDWARE INCLUDED (x1) (x1) (x1) ST5.5x32 (x2) ST5.5x32 (x2) (x1) ST4.2x19 (x3) ST4.2x19 (x1) (x2) (x1) (x4) ST4.2x19 (x8) (x2) (x2) ST4.2x13 (x2) ST3.5x32 (x3) (x1) (x1) PREPARE THE ROUGH OPENING Height of Rough Opening (Table 1) Nominal Minimum Height of Bracket Fastener Height...
- Page 2 INSTRUCTIONS POCKET DOOR FRAME For 1"(25mm) to 1-3/4"(45mm) doors to 200 lbs.(100 kgs) MADE FOR 2"X4" STUD WALLS CONSTRUCT ROUGH OPENING using Table 1 and 2 Header must be SQUARE and PLUMB with tubes and LEVEL. Minimum Height of ROUGH OPENING = Door Height + 4-1/2” (114mm) Width of ROUGH OPENING = 2X Door Width plus 1"...
- Page 3 INSTALL THE SPLIT TUBES NOTE : The bottom of the split tube is the end without the slots. If the split tubes must be cut for shorter door heights, determine which end of the split tube has the slots and cut off the other end. 1.
- Page 4 Engage Soft Close Dampener by pushing Dampener trigger 3 Wheel Roller. This step is very important. DAMPENER MUST BE ENGAGED or soft close will not work, Soft Close Dampener may be DAMAGED if installed incorrectly. Door will have to be removed and installation of Soft Close will have to begin again. SHOWN IN “ENGAGED”...
- Page 5 AB/Attach door plates on top of door 2-3/4"(70mm) from LOCK TABS each edge with lock tabs on the same side. C/Mount door by locating door plate under adjusting bolt of hanger. 70mm(2-3/4") Lift door and push bolt into door plate, then click the tab in place. Repeat with other hanger/door plate.
- Page 6 Fasten Guides on finished split jambs at door bottom so door is held in center of opening. 3/16" (5mm) 3/16" (5mm) Split Jambs...
- Page 7 CUTTING INSTRUCTIONS POCKET DOOR FRAME HEADER Pocket Door Frames are marked for cutting to shorter standard door widths. Remove Adjustable End Bracket. Adjustable End Bracket At desired door size marking,cut wood header only. Turn header over and cut track 1-3/8"(35mm) shorter than header. DO NOT CUT TRACK Replace Adjustable End Bracket on new cut end of header.
