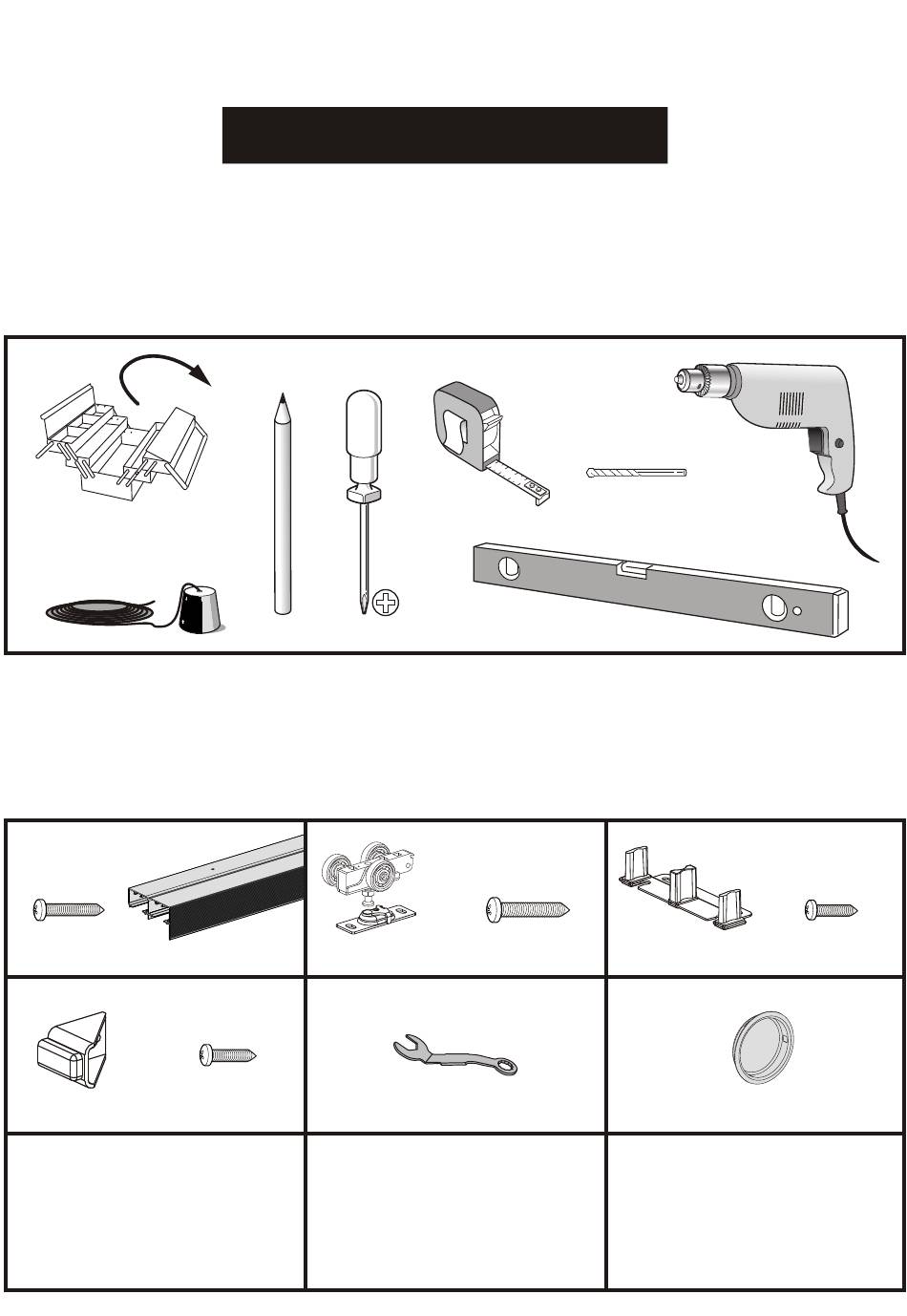

- Page 1 PRE-INSTALLATION TOOLS REQUIRED Ø4 HARDWARE INCLUDED ST4.2x32 (x11) (x1) (x4) ST5.5x32 (x8) (x1) ST4.2x19 (x2) (x1) ST4.2x19 (x3) (x1) (x2)
- Page 2 INSTRUCTIONS SLIDING DOOR HARDWARE Fits 35 and 45mm thick wood door each door max weight 150lbs PREPARE OPENING CAREFULLY: MAKE SURE CORNERS ARE SQUARE, HEADER IS LEVEL AND JAMBS ARE STRAIGHT. 2 Door : 2x Door width-1" 1-49/64"(45mm) DOORS Mount Track to Header: Cut track to fit opening. insert Hangers into track and mount to header with 1-1/4"(32mm) #8 pan head screws.
- Page 3 Hang Door on front leg of track first. Slide pivot pin of hanger into socket and lock into place with clip. Check for smooth travel. Repeat with rear door. (Click) PLUMB Use spanner to adjust door height Install Bottom Guide: Slide both doors to side jamb. Place guide between doors and position to plumb, fasten to floor with screws.
- Page 4 Adjust Hangers, if necessary, to plumb doors with jambs. ADJUSTING NUT Install Stop: Attach Stop on rear of front door 1-1/2"(38mm) from door edge, 1/2"(13mm) from top (Hollow Core) or 40"(100mm) from bottom (Solid Core) doors. Note: if other than pull is used, adjust location of stop to allow for access to rear door pull. 1-1/2"(38mm) front door JAMB...
- Page 5 Install Handle: First, use a tool to make a groove on each of the two doors, with a depth of 29/64"(11,4mm) and a diameter of 2 1/8"(54mm), and finally fix the handle on the door.
