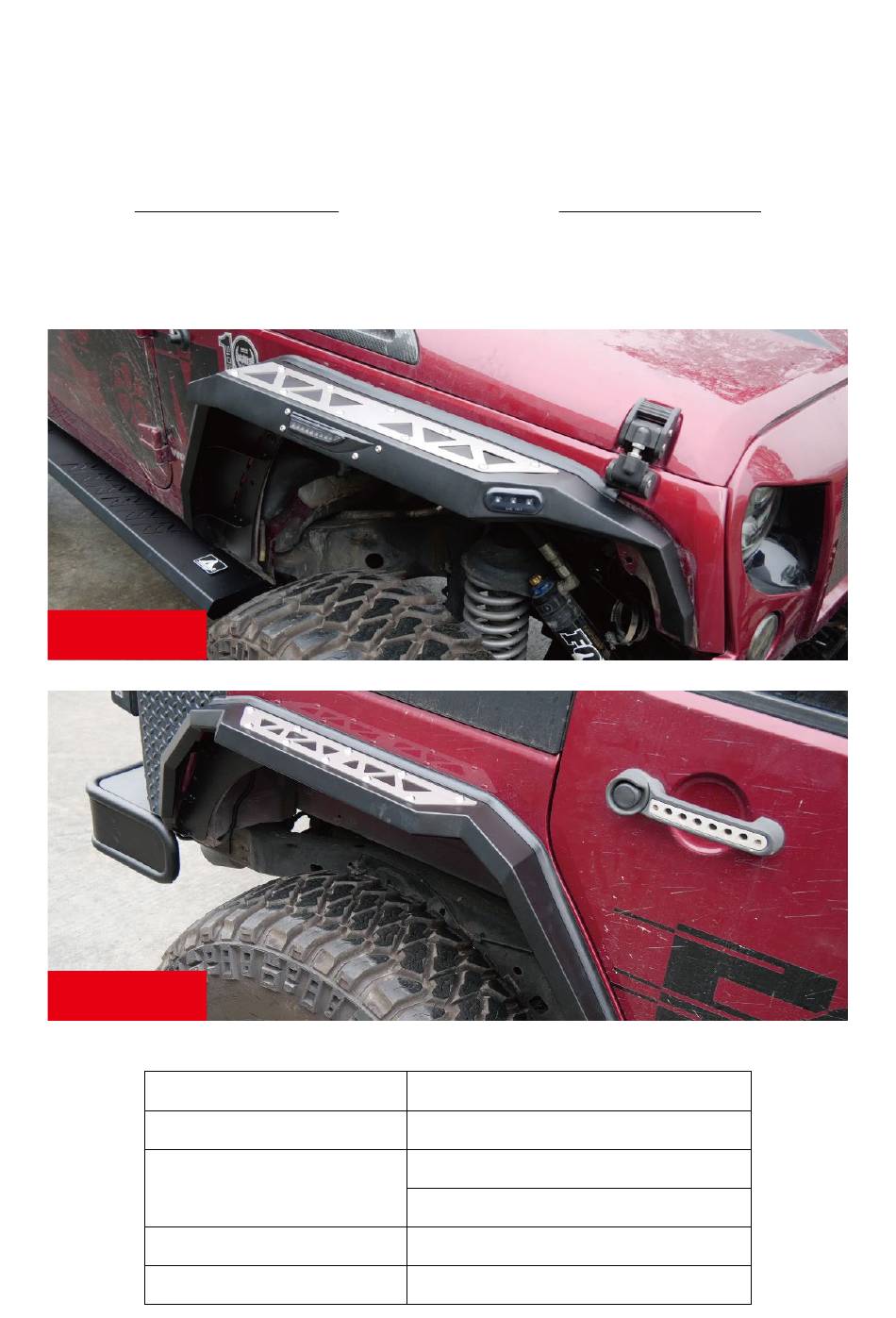

- Page 1 FENDER FLARES (FRONT + REAR) User Manual 2007-2018 Jeep Wrangler JK FRONT REAR Model: NJK01H101C-BX Material: Q235A Front 43.99*21.57*6.43 inch Product Dimensions: Rear 46.49*18.23*5.61 inch Package Dimensions: 48.8 x 27.5 x 11.8 inch Product Weight: 59.5 lbs...
- Page 2 ※Thank you for purchasing the FENDER FLARES (FRONT +REAR). Please read this manual carefully and keep it properly if you need to refer to it afterward. If you need any support or assistance, please contact us with your product model number and order number, and our support team will help you solve problems.
-
Page 3: Parts Information
Parts Information Parts Name Size Line Graph Color Left&Right Front Black Fender Flares Left&Right Rear Black Fender Flares Wire sets Black H-Rubber 61cm Black Strip Ribbon Black Half Head M8x20 Dacro Black Allen Bolts Spring Washer Φ8 Dacro Black Hex Flange Dacro Black Nuts Flat Washer... -
Page 4: Required Tools
REQUIRED TOOLS Rivet Nuts Tool lineman Pliers Wrench Allen Wrench Panel Remover Knife Installation Instructions FRONT FENDER FLARES Step 1: Open the carton and take out the parts. Check whether the number of components is complete. Step 2: Remove the original front fender flares and original front fender liner and prepare the parts needed to install the Front fender liner. - Page 5 6. Disconnect the plugs of original 10. Remove the original front fender flares. Step 3: Install the H-Rubber Strip. H-Rubber Strip...
- Page 6 Step 4: Install the front fender flares and tighten the bolts. W16 W19 Front Fender Flares Step 5: Connect the front fender flares light wiring. Fender flares wiring...
- Page 7 Fender flares wiring...
- Page 8 Connected to the Left&Right Front Fender Flares Connected to the Jeep's fuse box Wire sets Fender flares wiring...
- Page 10 Bundling wires Step 6: Installation of a front fender flares is complete. Please do periodic inspections of the fender flares to make sure that all hardware is secure and tight. Step 7: Install all the original vehicle parts.
- Page 11 Installation Instructions REAR FENDER FLARES Step 1: Open the carton and take out the parts. Check whether the number of components is complete. Step 2: Remove the original rear fender flares and original rear fender liner and prepare the parts needed to install the rear fender liner. 6pcs Clips 6pcs Clips...
- Page 12 Step 3: Install the H-Rubber Strip. H-Rubber Strip Step 4: Install the rear fender flares and tighten the bolts. W16 W19 Rear Fender Flares...
- Page 13 W09 W11 Rear Fender Flares Step 5: Installation of a rear fender flares is complete. Please do periodic inspections of the fender flares to make sure that all hardware is secure and tight. Step 6: Install all the original vehicle parts.
