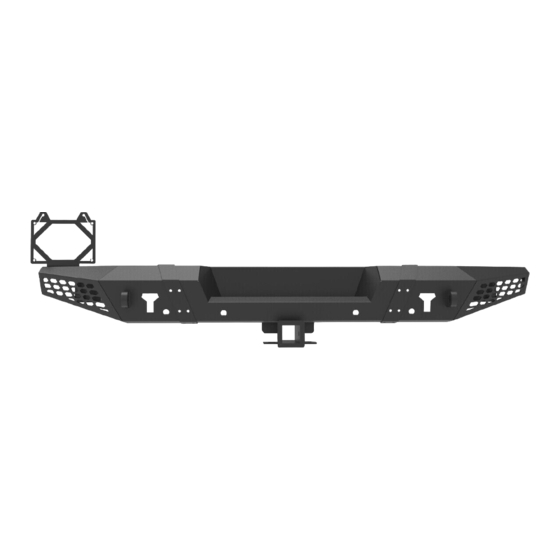

- Page 1 REAR BUMPER User Manual 2018-2022 Wrangler JL 4 Door Model: NJL01B108 Material: Q235A Product Dimensions: 65.54 x 17.25 x 9.72 inch Package Dimensions: 33 x 17.32 x 10 inch Product Weight: 48.17 lbs...
- Page 2 ※ Thank you for purchasing the HAWKLEY REAR BUMPER. Please read this manual carefully and keep it properly if you need to refer to it afterward. If you need any support or assistance, please contact us with your product model number and order number, and our support team will help you solve problems.
-
Page 3: Required Tools
REQUIRED TOOLS Socket Ratchet Wrench Allen Wrench Safety Glasses Parts Information Parts NO. Parts Name Size Line Graph Color Mid Bumper Black Left/Right Black Bumper Connectors Black License Plate Black Holder Nut Plates Black Tow Trailer Black Hitch Receiver PVC+Blue Shackles Zinc Plating License Plate... - Page 4 Parts NO. Parts Name Size Line Graph Color Flat Washer Φ6x12x1.5 SUS304 Hex Flange SUS304 Nuts Half Head Allen M8x20 Dacro Black Bolts Hex Flange Dacro Black Nuts Blue Zinc Hex Bolts M12x110（30） Plating Blue Zinc Hex Bolts M12x35 Plating Blue Zinc Hex Nuts Plating...
-
Page 5: Installation Instructions
Installation Instructions Step 1: Open the carton and take out the parts. Check whether the number of components is complete. Step 2: Splice the Rear Bumper. ④ B15： M8x20 ⑤ N14： M8 ② ③ ②Right ③Right ① ③Left ②Left ③Left ①... - Page 6 NOTICE: Do not tighten the screw in this step. Step 3: Clean the rear of the car to ensure it is free of dust, dirt, and debris. Step 4: Uninstall the vehicle's original bolts (6 pcs) before installation and keep it. original bolts x4 original bolts x2...
- Page 7 NOTICE: The car shown above has 6 original bolts, but other versions may have 2 bolts on the left and right sides, a total of 4 original car bolts. Step 5: Install the Rear Bumper. ③ B45 ④ W29 ⑤ W28 ①...
- Page 8 ⑤ Bumper Bumper ④ ③ Original bolts Original bolts x2 Original bolts x4 ③④⑤x2 NOTICE: Do not tighten the screw in this step. Step 6: Adjust the balance of the Rear Bumper and the car side and tighten the bolts. Step 7: Tighten all the connecting bolts on the Rear Bumper.
- Page 9 Step 8: Install the Tow Trailer Hitch Receiver. ② B41 ③ W29 ④ W28 ⑤ N24 ① ③ ③④⑤x2 ① ② ④ ④ ⑤ ① NOTICE: Do not tighten the screw in this step. Step 9: Adjust the balance of the Rear Bumper to the ground and tighten the bolts. Tips: Use a stretch ruler to measure and balance the left and right sides of the Rear Bumper.
- Page 10 About 17.7inch Tips: Use effect display. Step 10: Install the License Plate Holder. ② B50： M6x15 ④ N08： M6 ③ W10：Φ6 ①...
- Page 11 ① ② Bumper ③ ④ Step 11: Install the License Plate Light. ① License Plate Holder ①...
- Page 12 Step 12: Install the License. ② B50： M6x15 ④ N08： M6 ③ W10：Φ6 ① License License Plate ① Plate ① ②③④ ② ④ ③ Step 13: Connect the License Light. Plug the License light plug to the original License light plug.
- Page 13 Step 14: Install the Shackles. Step 15: Install the Radar Probe. Note：If the car does not have a radar probe, this step can be ignored. ① B55： M6x30 ② N29： M6 雷达 ① ② Radar Probe Radar Probe...
- Page 14 Step 16: Installation of the Rear Bumper is complete. Please do periodic inspections of the Rear Bumper to make sure that all hardware is secure and tight.
-
Page 15: Product Care And Maintenance
Subject to the terms, exclusions, and limitations herein and with respect only to HAWKLEY branded accessories first sold in the United States, HAWKLEY warrants to the initial retail purchaser only that your HAWKLEY accessory shall be free of defects in material and workmanship: for a period of two years from date of retail purchase. -
Page 16: What Is Not Covered
Remedy Limited to Repair/Replacement: The exclusive remedy provided here under shall, upon HAWKLEY inspection and at HAWKLEY’S option, be either repair or replacement of product or parts (new or refurbished) covered under this Limited Warranty. Customers requesting warranty consideration should first contact HAWKLEY to obtain a RMA number 1 (626) 361-0126. - Page 17 HAWKLEY. All Rights Reserved.
