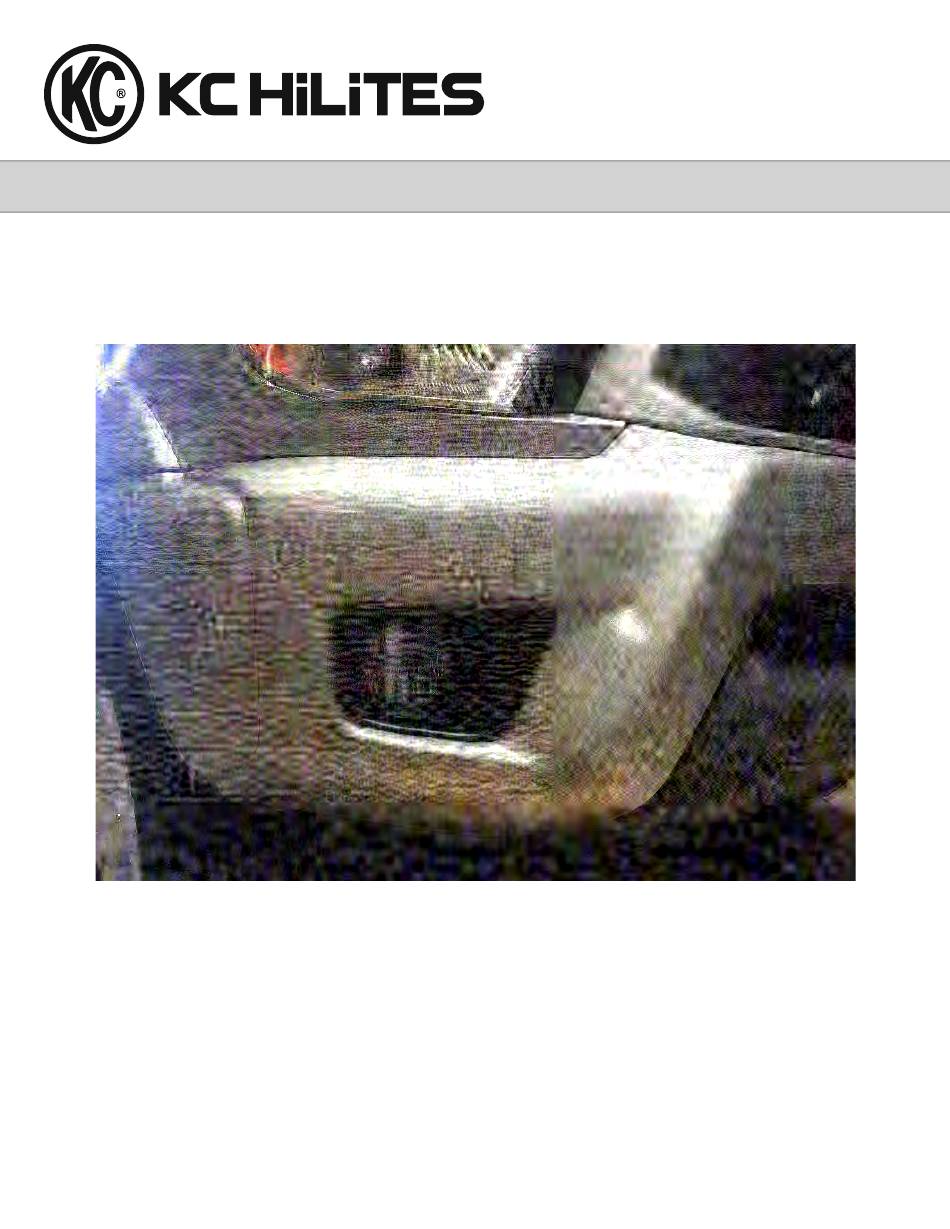

KC's Toyota fog light mounts are designed to fit any 2012-2015 Tacoma. These brackets will
mount a pair of KC HiLiTES Gravity LED G4's to an OE (factory) bumper. These brackets are
not guaranteed or designed to fit aftermarket bumpers.
Parts Included:
2pcs Gravity LED G4's (Fog beam)
2pcs Fog Light Mounting Brackets
2pcs DT to H11 Plug-n-Play Jumper Harnesses
Copyright 2016 KC HiLiTES, Inc.
Rev 07072016 - KC3265DT
TOYOTA FOG LIGHT MOUNT KIT
2012-2015 TOYOTA TACOMA
Advertisement
Related Manuals for KC HiLiTES 500
Summary of Contents for KC HiLiTES 500
- Page 1 KC’s Toyota fog light mounts are designed to fit any 2012-2015 Tacoma. These brackets will mount a pair of KC HiLiTES Gravity LED G4’s to an OE (factory) bumper. These brackets are not guaranteed or designed to fit aftermarket bumpers.
- Page 2 501 - Gravity Amber LED G4 Fog Light Mount Kit (plug-n-play) PRODUCT REGISTRATION Thank you for becoming part of the KC HiLiTES family and purchasing one of our premium KC products! With over 45 years of history in the auxiliary lighting market,...
- Page 3 (Driver or Passenger) and install into the fog light openings by lining up the bracket tabs into the mounting slots and reinstalling the (2) Philips Head Screws. KC HiLiTES, Inc. | P.O. BOX 155 | Williams, AZ 86046 | support@kchilites.com | (888) 689-5955 or (928) 635-2607...
- Page 4 For vehicles without factory fog lights, you can complete the fog light installation by adding a wiring harness (KC #6308) or by adding two OE Toyota components (OE fog light switch & relay). Continue to Step 7 for installing the additional factory components.
