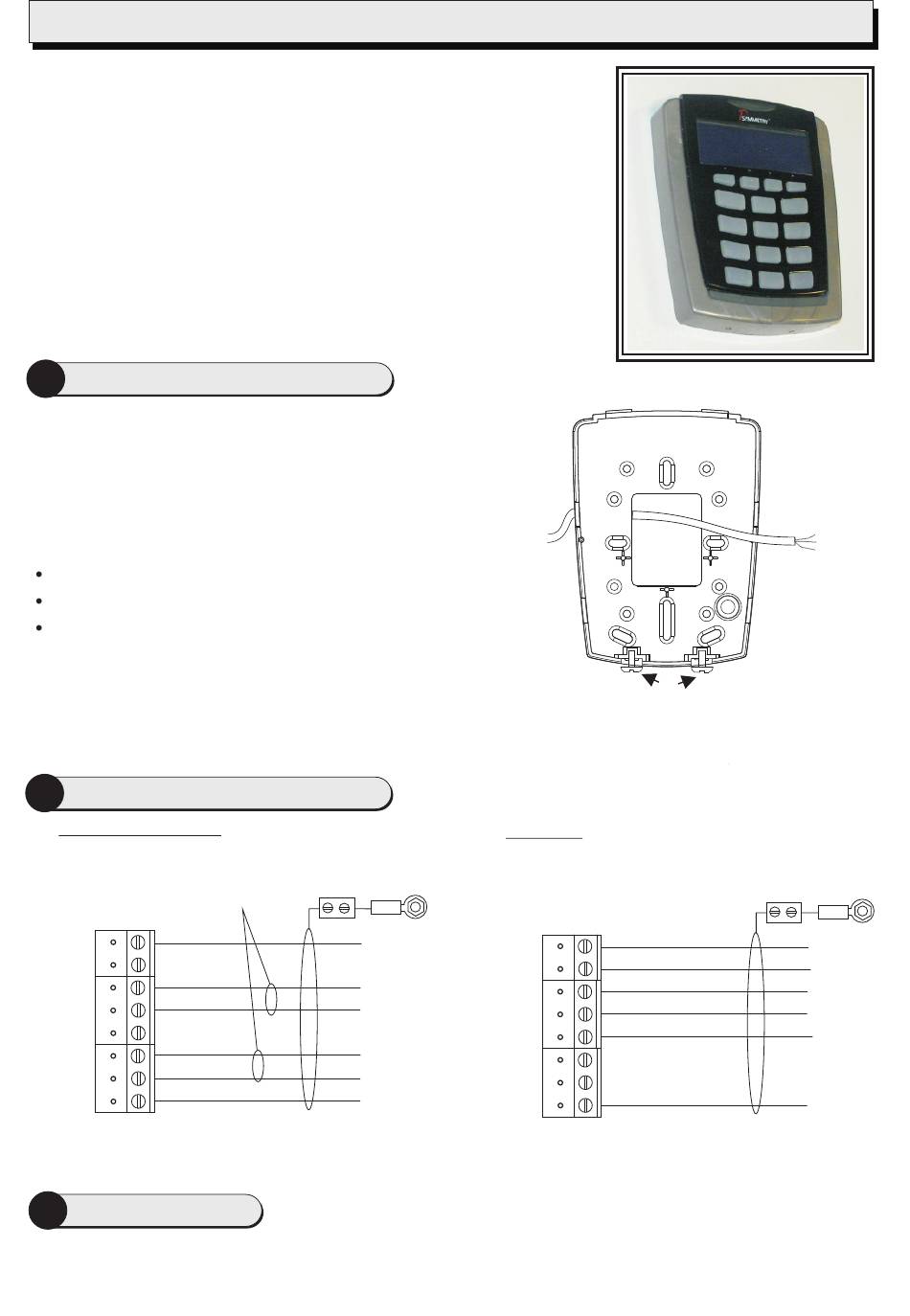

Symmetry S884 Installation And User Instructions

Installation and User Instructions for S884 Readers
The S884 is a contactless smart-card reader, with Graphic LCD
and keypad. The reader can be set to use Wiegand or
current loop communications.
The S884 reader will read smartMAX encoded MIFARE cards
and card serial numbers from most ISO 14443A smart cards
which have a 4-byte UID (User Identification). The reader may
be configured to read other card types by presenting a
programming card to the reader during start up.
Mount the Backplate
1
Mount the backplate using countersunk headed screws
adjacent to the opening edge of the door and at a
convenient height (recommended height is 5' (1.5m) to top
of unit).
If fixing hole 'A' is used then the breakout must be removed
and the screw must not protrude.
Feed the required cables through the backplate:
The cable from the controller.
A cable from a External Reader (Optional).
General Purpose Input / Output cable (Optional)
If wall tamper function is to be used then breakout 'B' must
be removed and an appropriate wall screw fitted through
the hole to actuate the tamper lever.
The securing screws 'C' are integral to the backplate and are unscrewed via the small holes in the
enclosure so that the screw heads locate in the counterbored holes on the inside of the
enclosure.
2 Reader Connections
20mA current loop
Twisted pairs (use
Belden 9503 Cables)
0V
TX+
TX-
RX+
RX-
+V
Reader
TB1
3 Reader Links
Set LK2 (COMMS) across the center and W pin for Wiegand communications, or across the center and C
pin for 20mA current loop communications. Set LK3 (USER Keypad audio feedback) to 1 for sound on, or
0 for sound off. Set LK4 (EXT RDR) across the center and W pin for Wiegand communications, or across
the center and M pin for Magstripe Reader communications.
Connect shield at
controller end
only.
0V
RX+
RX-
TX+
TX-
12V
Controller
Note: Use LK2 to select the communications mode (See Step 3).
20mA
A
Wiegand
Use Belden
9537 Cable
0V
RED
GRN
0
1
+V
Reader
TB1
You should find that
B
the backplate has
holes for connection
to most standard
electrical backboxes
C
Connect shield
at controller end
only.
0V
Red
Green
Data 0
Data 1
12V
Controller
.
