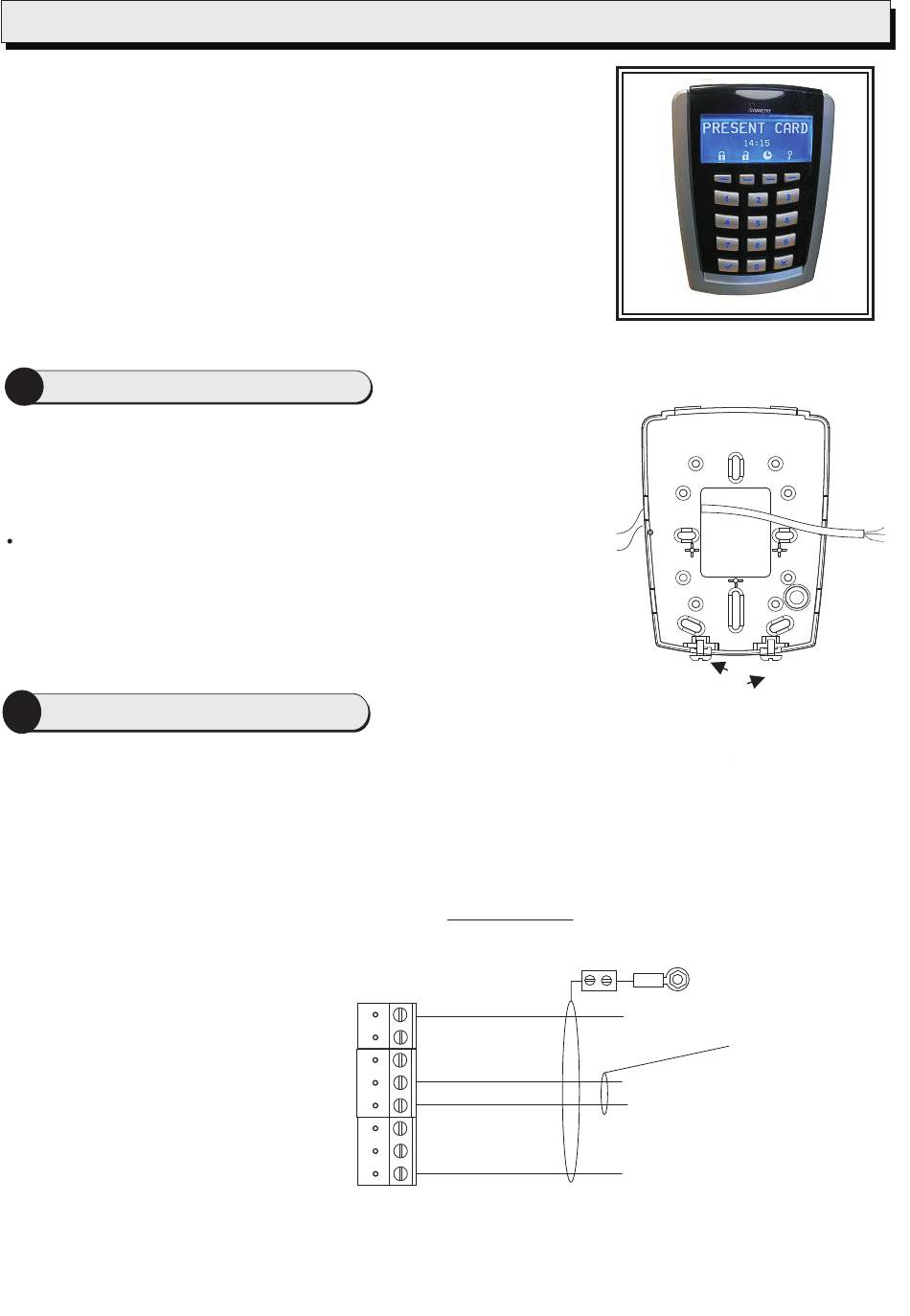

Symmetry Javelin S884 Installation And User Instructions

Installation and User Instructions for S884 OSDP Readers
The S884-OSDP reader is a
keypad. The reader is configured for RS485 / OSDP communications.
This reader is for indoor Use Only.
The S884-OSDP reader will read smartMAX encoded MIFARE cards and card
serial numbers from most ISO 14443A smart cards which have a 4-byte UID (User
Identification).
For additional information regarding the installation, configuration and proper use of
this product:
SMS User Guide, P/N 9600-0429,
M2150 Access Control Design Guide, P/N 9600-0420,
M2150 Intrusion Guide, P/N 9600-0540,
M4000 Commissioning Guide

Mount the Backplate

1
Mount the backplate using countersunk headed screws adjacent to the opening edge
of the door.
If fixing hole 'A' is used then the breakout must be removed and the screw must not
protrude.
Feed the required cables through the backplate:
The cable from the controller.
If wall tamper function is to be used then breakout 'B' must be removed and an
appropriate wall screw fitted through the hole to actuate the tamper lever.
The securing screws 'C' are integral to the backplate and are unscrewed via
the small holes in the enclosure so that the screw heads locate in the
counterbored holes on the inside of the enclosure.
2

Reader Connections

Note:
1). Consult local AHJ (Authority Having Jurisdiction) when installing access control readers and locking mechanisms to any
portal in an egress path.
2). The use of Fail Closed / secure configuration shall be determined by local building codes and the local AHJ.
3). Wiring methods shall be in accordance with NEC (National Electrical Code) ANSI/NFPA 70.
If termination is required use Lk5 to set
(see over).
Note: The FERRITE must be fitted!
Slide the ferrite sleeve onto cable before wiring terminal block. Ferrite to be placed 50mm (2") up cable and held in place
with cable ties.
contactless smart-card reader, with Graphic LCD and
, P/N 9600-0698
225ft (75m) max with Belden 9503 or
450ft (150m) by doubling power cores
with Belden 9536.
0V
0s
1s
+V
Reader
TB1
RS485 (OSDP)
Connect shield at
controller end only.
Controller
A
C
0V
Twisted
pairs
Rx+
Rx-
12V
You should find
B
that the
backplate has
holes for
connection to
most standard
electrical
backboxes.
