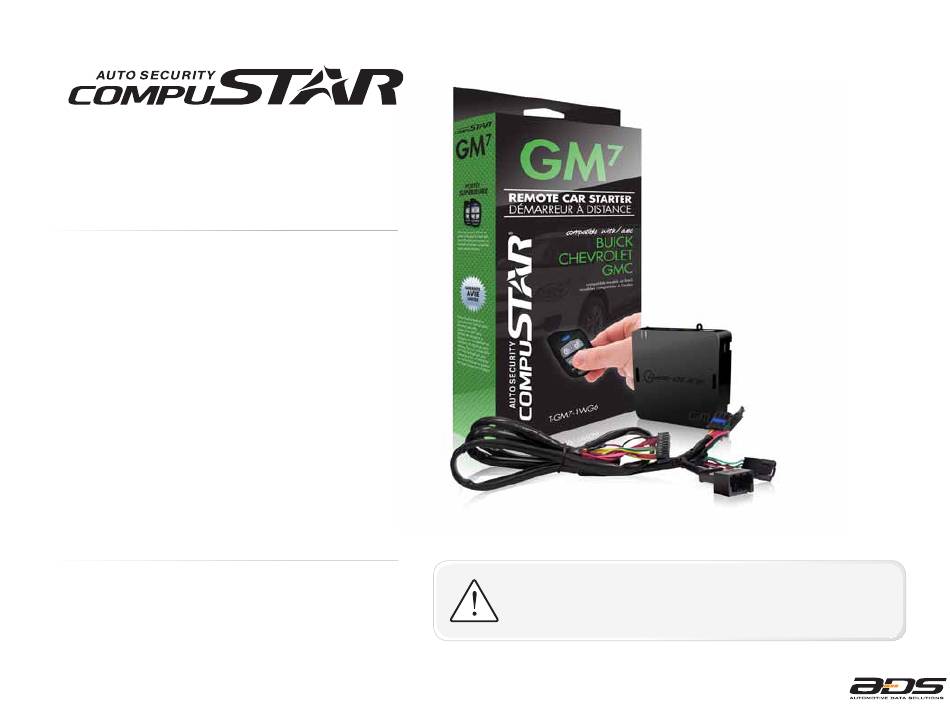

COM-GM(RS)-GM7-[T-GM7]-EN
notice
The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
Automotive Data Solutions Inc. © 2014
instaLL guiDe
Document numbeR
16152
Revision Date
20140807
FiRmwaRe
COM-GM(RS)-GM7-[T-GM7]
haRDwaRe
T-GM7-1WG6
accessoRies
ADS-USB (REQUIRED)
COMPATIBLE RF-KIT (OPTIONAL)
DRONE MOBILE DR-2000 (OPTIONAL)
beFoRe instaLLation
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
compustar.idatalink.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ADS COMPUSTAR T-GM7-1WG6
Summary of Contents for ADS COMPUSTAR T-GM7-1WG6
- Page 1 Revision Date 20140807 FiRmwaRe COM-GM(RS)-GM7-[T-GM7] haRDwaRe T-GM7-1WG6 accessoRies ADS-USB (REQUIRED) COMPATIBLE RF-KIT (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) notice beFoRe instaLLation The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either 1- Connect module to computer damage to the vehicle itself or to the installed device.
- Page 2 Page 2 oF 20 VEHICLE LIST - 1 OF 1 • 20140807 DOC.: #16152 FEATURES Encore Flip-Key AT 13-14 1 • • • • • • • • • • • • • • LaCrosse Flip-Key AT 10-14 1 • •...
- Page 3 Page 3 oF 20 BOX CONTENTS - 1 OF 1 • 20140807 DOC.: #16152 BOX CONTENTS MODULE T-HARNESS 1 10 PIN CONNECTOR LED 2 PROGRAMMING BUTTON LED 1 BLUE 12 PIN CONNECTOR BLACK RF PORT/ WEBLINK PORT BLUE BLACK TELEMATIC PORT AFTERMARKET HOOD SWITCH AND CABLE BLACK...
- Page 4 Page 4 oF 20 COMPATIBLE ACCESSORIES - 1 OF 1 • 20140807 DOC.: #16152 RF KIT (Visit our website to see if this accessory is included with your product) RF KIT FLASH RF DECODER BEFORE INSTALLATION (NC) RED (NC) BLACK BLUE MODULE BLACK...
- Page 5 Page 5 oF 20 TYPE 1 - WIRE CHART - 1 OF 1 • 20140807 DOC.: #16152 16 pin 01 Green (DATA) OBDII Encore 13-14 Parking Light Green/Gray Light switch 16 pin 01 Green (DATA) OBDII LaCrosse Parking Light LtBlue Light switch 16 pin 01 Green...
- Page 6 Page 6 oF 20 TYPE 1 - WIRING DIAGRAM - 1 OF 1 • 20140807 DOC.: #16152 MODULE VEHICLE IGNITION SWITCH RF PORT/WEBLINK PORT IGNITION CONNECTOR TELEMATIC PORT IGNITION HARNESS PK3 CONNECTOR PK3 HARNESS OBDII CONNECTOR OBDII 01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT 02 GRAY (NC) 03 EMPTY GREEN/WHITE - SWC (DATA) OUTPUT...
- Page 7 Page 7 oF 20 TYPE 2 - WIRE CHART - 1 OF 1 • 20140807 DOC.: #16152 Parking Light LtGreen/Gray At headlight switch 16 pin 01 Green (DATA) OBDII connector Silverado Ignition Green 06 pin 02 Purple/Black Ignition connector 1500 Flip-Key / STD key Accessory Green...
- Page 8 Page 8 oF 20 TYPE 2 - WIRING DIAGRAM - 1 OF 1 • 20140807 DOC.: #16152 MODULE VEHICLE IGNITION SWITCH CUT CONNECTOR FROM HARNESS RF PORT/WEBLINK PORT TELEMATIC PORT 12V (+) - 04 YELLOW MUX - 05 PINK IGNITION (+) - 02 BROWN ACCESSORY (+) - 03 IGNITION CONNECTOR...
- Page 9 Page 9 oF 20 TYPE 3 - WIRE CHART - 1 OF 1 • 20140807 DOC.: #16152 Parking Light LtGreen/Gray At headlight switch 16 pin 01 Green (DATA) OBDII connector Ignition Green 06 pin 02 Purple/Black Ignition connector Silverado Accessory Green 06 pin 03 Purple/Yellow...
- Page 10 Page 10 oF 20 TYPE 3 - WIRING DIAGRAM - 1 OF 1 • 20140807 DOC.: #16152 MODULE VEHICLE IGNITION SWITCH CUT CONNECTOR FROM HARNESS RF PORT/WEBLINK PORT TELEMATIC PORT 12V (+) - 04 YELLOW MUX - 05 PINK IGNITION (+) - 02 BROWN ACCESSORY (+) - 03 IGNITION CONNECTOR...
- Page 11 Page 11 oF 20 MODULE PROGRAMMING PROCEDURE - 1 OF 1 • 20140807 DOC.: #16152 Insert key into ignition. Insert key into ignition. Turn key to ON position. START START START Turn key to ON position. Turn key to ON position. Wait, LED will turn solid GREEN for 2 seconds.
- Page 12 Page 12 oF 20 VALET MODE PROGRAMMING PROCEDURE - 1 OF 1 • 20140807 DOC.: #16152 >> NOTE: In Valet Mode, the Remote starter is not Remove key. functional. Keyless entry, Lock and Unlock will remain functional. See RF kit user manual for START alternate valet mode programming.
- Page 13 Page 13 oF 20 AFTERMARKET REMOTE PROGRAMMING PROCEDURE - 1 OF 1 • 20140807 DOC.: #16152 >> WARNING: Program aftermarket remotes Press once [1x] on LOCK button of aftermarket Remove key. before usage. A maximum of four [4x] remote. aftermarket remotes per system. START Insert key into ignition.
- Page 14 Page 14 oF 20 MODULE NAVIGATION PROCEDURE - 1 OF 1 • 20140807 DOC.: #16152 >> It is mandatory to exit the Module Navigation TO ACCESS THE OPTIONS: Press and hold To save and return to the OPTIONS: Press and at the end of this procedure.
- Page 15 Page 15 oF 20 moDuLe navigation chaRt - 1 OF 2 • 20140807 DOC.: #16152 moDuLe navigation chaRt: notes I Default settings are listed in bold. DISARM/UNLOCK BEFORE START II Make sure the option is covered on the vehicle before attempting to change the setting.
- Page 16 Page 16 oF 20 moDuLe navigation chaRt - 2 OF 2 • 20140807 DOC.: #16152 moDuLe navigation chaRt: notes DoubLe LocK LOCK + UNLOCK HORN EVENT TRIGGER LOCK + UNLOCK + START CONFIGURATION DOUBLE LOCK + START 30 msec HORN CHIRPS WIDTH 15 mSec 60 mSec 02-07 Technical Support only...
- Page 17 Page 17 oF 20 Remote staRteR eRRoR coDes - 1 OF 1 • 20140807 DOC.: #16152 Remote staRteR eRRoR coDes: notes Engine running. I WARNING: The following applies only when the parking lights are connected and supported by the system. Key in ignition at ON position.
- Page 18 Page 18 oF 20 moDuLe Diagnostics - 1 OF 1 • 20140807 DOC.: #16152 test moDuLe Flashing RED Missing/wrong information from fi rmware or vehicle. Solid RED Module waiting for more vehicle information. Flashing GREEN Additional steps required to complete module programming. DURING PROGRAMMING Solid GREEN then OFF Module correctly programmed.
- Page 19 Page 19 oF 20 MODULE RESET PROCEDURE - 1 OF 1 • 20140807 DOC.: #16152 Disconnect all connectors from module except Reconnect all connectors. the BLACK 20-PIN connector. Disconnect the BLACK 20-PIN connector. Repeat programming procedure. >> PRESS AND HOLD programming button while Failure to follow procedure may result with a connecting the BLACK 20-PIN connector.
- Page 20 Page 20 oF 20 instaLLation checKList - 1 OF 1 • 20140807 DOC.: #16152 checKList WARNING: Vehicle engine will start many times. Test in a well ventilated area. Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle. Question 7: Does the vehicle shut down? Close all vehicle doors, hood and trunk.
