Videomate Action Connectors - COMPRO U700 - START UP GUIDE Manual

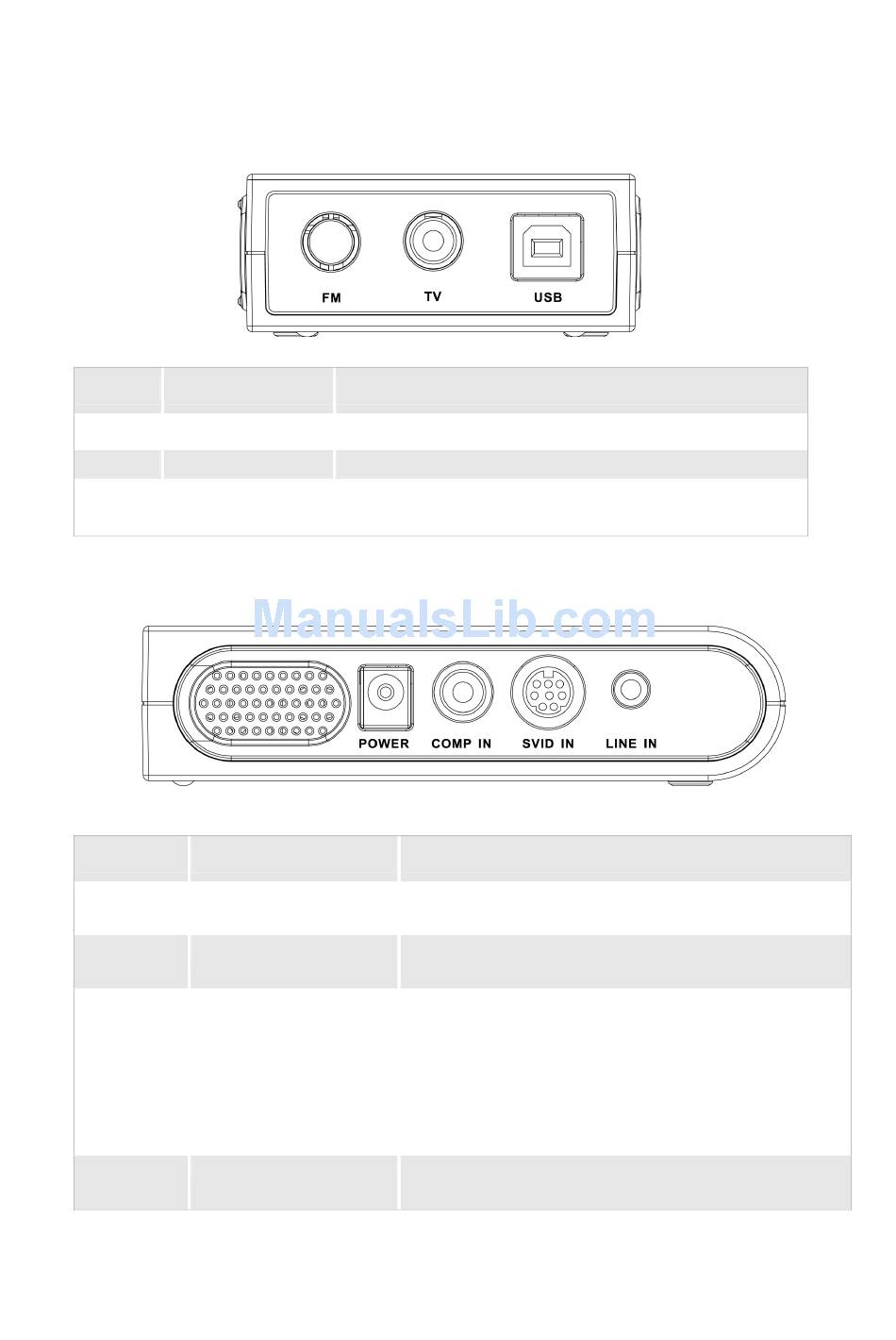

VideoMate Action Connectors

Icon Function
FM FM Tuner-In
TV TV Tuner-In
USB USB connector
Icon Function
POWER USB Power-In
COMP IN Composite-In
SVID IN S-Video-In and
Stereo Audio-Out
( Audio-Out is
needed in Windows
2000 system)
LINE IN Stereo Audio-In
4
Back Side of Box
Description
Connect to a FM antenna.
Connect to a TV antenna or TV cable feed.
Use the supplied USB cable to connect to an
USB port on the computer.
Right Side of Box
Description
Connect to a USB port for additional power.
Use the Composite patch cable to connect to a
video source, such as a VCR, DVD or VCD.
Use the S-Video patch cable to connect to a
video source, such as a VCR, DVD or VCD.
Use the provided stereo audio patch cable to
connect from VideoMate Action to sound card's
Audio-In connector, such as Line-In.
Use a stereo audio patch cable to connect to
an audio source, such as a VCR, DVD or VCD.
