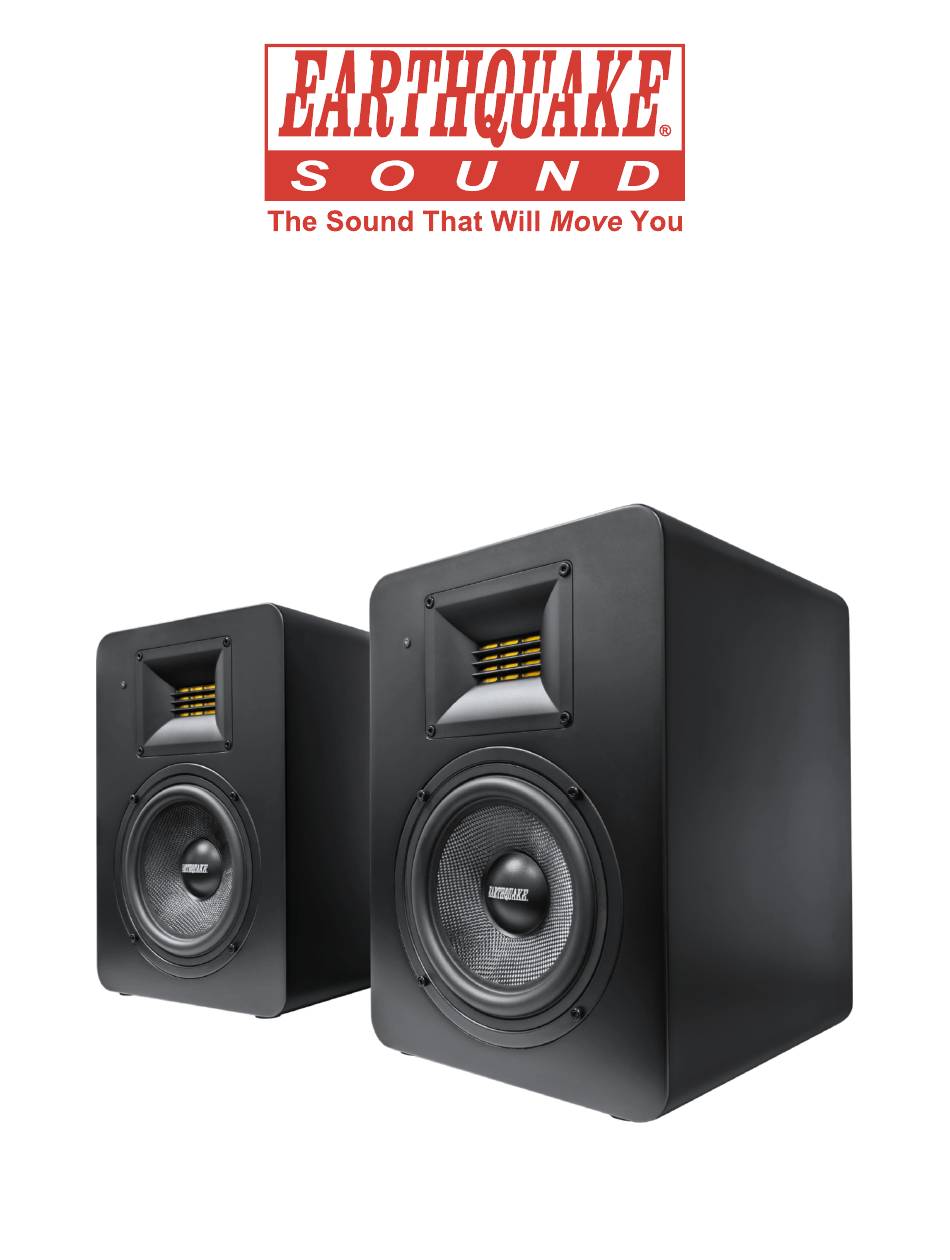

- Page 1 SM6BT 6.5-INCH 2-WAY BI-AMPLIFIED PROFESSIONAL STUDIO MONITOR www.earthquakesound.com...
-
Page 2: Table Of Contents
Fax: 510-732-1095 © 2024 Earthquake Sound Corporation. All rights reserved. This document should not be construed as a commitment on the part of Earthquake Sound Corporation. The information is subject to change without notice. Earthquake Sound Corporation assumes no responsibility for errors that may appear within this document. -
Page 3: Safety Instructions
Safety Instructions Safety First This documentation contains general safety, installation, and operating instructions for the SM6BT studio monitors. It is important to read this user’s manual before attempting to use this product. Pay particular attention to the safety instructions. Symbols Explained: Appears on the component to indicate the presence of uninsulated, dangerous voltage inside the enclosure –... - Page 4 15. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 4 Earthquake Sound Corp. | (510) 732-1000 | www.earthquakesound.com...
-
Page 5: Introduction
At the heart of the SM6BT is a custom 2-inch wide band ribbon driver that captures the subtlest waveforms and the highest frequencies, allowing you to hear every nuance in your music. Its unique design allows for excellent dispersion over a wide area compared to traditional tweeter designs, resulting in a wider sweet spot with focused vertical dispersion while minimizing surface reflections. -
Page 6: Amplifier Features
Amplifier Features 1. Unbalanced RCA Input RCA input for connecting the SM6BT monitor to your TV, computer, DJ equipment, mobile device, etc. 2a. Balanced XLR Input 10kOhm balanced XLR input for connecting the SM6BT monitor to your audio interface or mixer. - Page 7 8. Pairing Button PAIRING This button is used to connect the SM6BT to a mobile device. See page #10 for pairing procedure. 7 Specifications are subject to change without notice...
-
Page 8: Placing Your Sm6Bt Monitors
This high frequency adjustment knob is factory set at 0dB or flat. Adjust this knob accordingly to tailor the sound to your listening preferences. SM6BT Monitor Placement The placement of your SM6BT monitors is one of the most crucial steps to ensure that they perform at their best. Studio/Stereo Application Earthquake suggests placing the monitors within the front 1/3 of the room, about 3 to 5 feet away from each other and directed at a 60 degree angle towards your listening position. - Page 9 SM6BT Monitor Placement Cont. Earthquake Sound suggests placing the SM6BT monitors at least 3 feet away to reduce distortion by reflection and diffraction. Be- cause high frequencies are primarily directional, to achieve the most precise monitoring, the SM6BTs should be placed so that the ribbon tweeters are approximately the same height as your ears when seated at your listening position.
-
Page 10: Pairing
Connecting Bluetooth-Enabled Devices Press and hold down the PAIRING button of the master SM6BT monitor speaker for more than 2 seconds (LED fast flash), and the mobile device can be paired with the master speaker. You will find "SM6BT" in ®... -
Page 11: Specifications
12.75ʺ x 9ʺ x 11.5ʺ Dimensions H x W x D With feet, grille, and amplifier 324mm x 228mm x 292mm ø5x20mm 2A/250V Fuse Rating UL/VDE slow blow tube 9ʺ (226mm) 11.5ʺ (292mm) 11 Earthquake Sound Corp. | (510) 732-1000 | www.earthquakesound.com... -
Page 12: Troubleshooting
• Check that the monitor's POWER switch is ON. • Check to ensure the LED ON/OFF selector is in the correct position. • If the fuse(s) blow once the monitor is switched on, please contact Earthquake Sound Technical Sup- port at (1-510-732-1000 or tech@earthquakesound.com). -
Page 13: Input Notes & Frequency Response
• Ensure that the power cord is firmly plugged into the monitor. • Inspect the connection between the signal source and the monitor. Note that the SM6BT's XLR and 1/4ʺ TRS connectors are entirely balanced. If you connect an unbalanced signal to the monitor, use Pin 2 for the signal and tie Pin 1 and 3 together at the source end. -
Page 14: Warranty Information
• Each product sent in for repair must be packaged in its original packaging. Otherwise, repackaging charges will apply in addition to the labor, parts, and shipping charges. (C) Earthquake agrees to repair or replace - at our discretion - all such defective products/parts subject to the following provisions: •... - Page 15 The customer is responsible for the cost of shipping the product(s) to Earthquake Sound Corporation (G) Disputes Resolution: All disputes - between clients and Earthquake Sound Corporation - resulting from the one (1) year limited warranty policy must be resolved according to the laws & regulations of the county of Alameda, California.
- Page 16 Earthquake Sound reserves the right to amend details of the specifications without notice. Copyright © Earthquake Sound Corporation Earthquake Sound Corporation • 2727 McCone Avenue Hayward CA, 94545 Phone: 510-732-1000 | www.earthquakesound.com...
