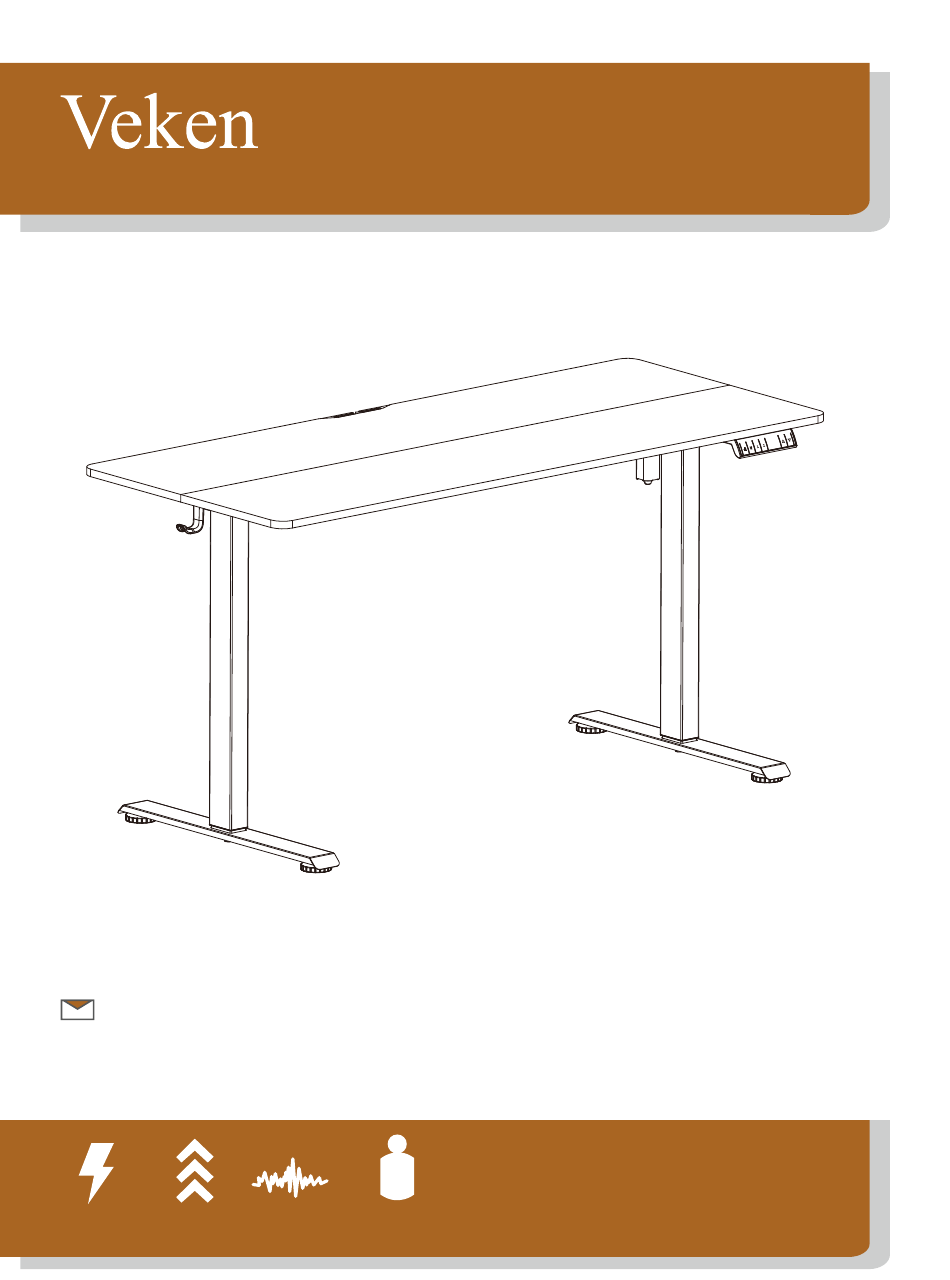

Electric Standing Desk support@aborderproducts.com(24/7) Height Adjustment Range Vertical Range 28.3”- 46.5” 72-118cm Size:140/160cm RATED Power Input Speed Motion Noise Load Capability <55dB 100V-240V 20 mm/s 154 lbs / 70 kg...
Page 2
Tools Needed Not Included) Phillips Screwdriver Pistol Drill STEP 1 Assembling and Connecting the Desk legs Supplied Parts and Hardware Screws Screws Large Allen Key M6×8mm M8×37mm S=5mm Right Table Leg Left Table Leg Crossbar (x1) Leg Base (x2)
Page 3
M6×8mm(x4) S=5mm S=5mm Note the direction of the arrows and desk board connectors. M8×37mm(x2) S=5mm Make sure that the desk foot pad is facing upwards. Large Allen Key S=5mm TEAM LIFT HEAVY!You may need assistance with this step.
Page 4
Attaching the Side Plates and the STEP 2 Transmission Rod Supplied Parts and Hardware Screws Large Allen Key Small Allen Key Side Plate Transmission rod M6×8mm S=5mm S=2mm M6×8mm(x4) S=5mm Ensure the installation is facing outwards, with the arrow pointing outwards.
Page 5
Can be stretched Coupling nut Loosen the coupling nut. Ensure the heights of the two desk legs at approximate height.
Page 6
Place the transmission rod into the hex hole. Left Leg If the height is different, Turn the transmission rod clockwise until the left leg goes to the lowest position. NOTE: Make sure the Insert the other end of the transmission rod to the set screw faces out slot on the leg (You may rotate the rod slightly for better installation).
Page 7
S=2mm Fig 1 Secure the transmission rod to the motor drive Small Allen Key S=2mm shaft by turning the set screw clockwise. Fig 2 Tighten the coupling nut.
Page 8
STEP 3 Assembling and Attaching the Desktop Supplied Parts and Hardware Screws Wood Tip Headphone Hanger Tabletop Connector M5×15mm Tabletop Control Panel Wood Tip (x6) Ensure both table top pieces facing one another, and the wood tip holes facing each other. Please install the office desk on the floor or carpet to avoid damage.
Page 9
Tabletop Connector (x2) M5×15mm(x4) Be careful not to install it in the middle position. M5×15mm(x10) Make sure to tighten the screws vertically. Make sure the pre-made holes for the control panel are on the same side as Mind your head ! the motor.
Page 10
M5×15mm(x6) Headphone Hanger(x2) Attach the control panel and hooks to the desktop.
STEP 4 Connecting the Cables Supplied Parts and Hardware Power Cable Clip Cable Clip (x2) (x1) Power NOTE: An example of a cable clip layout is indicated below. However, the cable clips can be arranged according to your needs.
Page 12
Instructions for Using the Control Panel Memory Height Usage and Setting 1. To save your desired height for future use, press and hold the " " or press and hold the" " button for more than 3 seconds, and the current height will be saved to the corresponding position.
Page 13
Protection and Alarm If the desk has been running continuously for a long time, this protection mechanism may be triggered. In such cases, reconnect the power or wait for at least 18 minutes before using. If the desk vibrates or collides during movement, an alarm will sound, and the desk will immediately stop and move in the opposite direction for a certain distance before automatically releasing.
