Prime-Line H-3934 Manual

H-3934
Jalousie window security clip
Ventana de Jalousie: Clip de seguridad
Agrafe de sécurité de fenêtre de jalousie
4"
10 cm
NOTE: Installation drawings are typical for this style of replacement part.
They may not show a part identical to the one you are installing.
NOTA: Los dibujos para la instalación son genéricos para repuestos de
este tipo; por lo que podrían no mostrar una pieza idéntica a la que usted
esté instalando.
REMARQUE : Les dessins d'installation sont typiques pour ce style de
pièce de rechange. Ils pourraient ne pas illustrer une pièce identique à
celle que vous installez.
• Fits 4" louvre slats
• Prevents removal of louvre
slats from outside
• Stainless steel
3/8"
10 mm

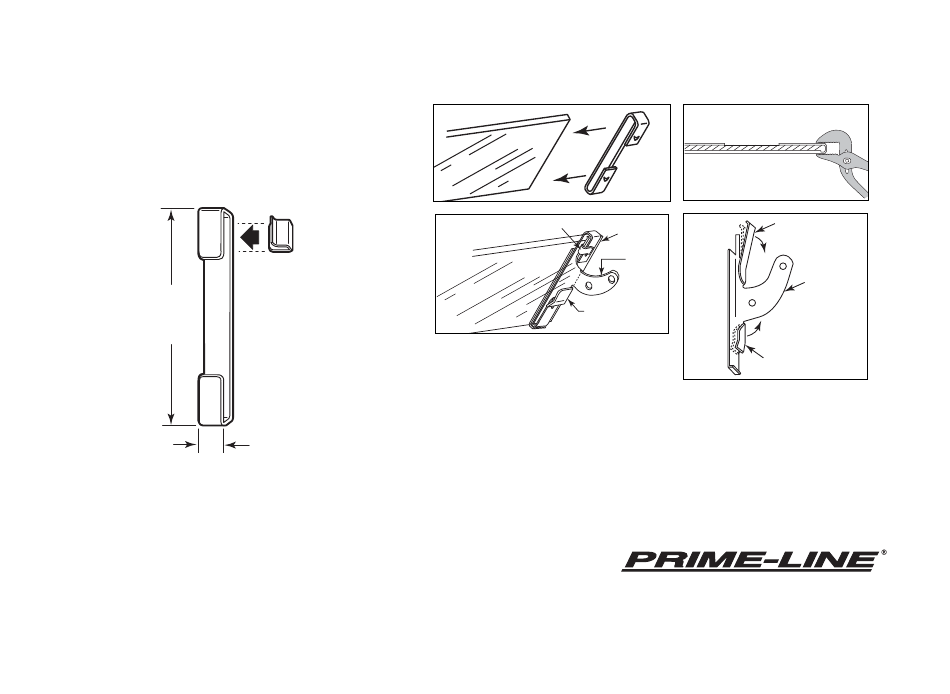

Figure A
Figure C
Clip
Lower Leg
INSTALLATION HINTS: Open jalousie window and remove the louvre slats (glass, wood or metal)
by sliding towards you. It may be necessary to bend the bracket upper leg down slightly.
Slip security clips over both ends of slat(Fig. A). Use pliers to gently conform clip to the size and
shape of the slat (Fig. B). Use caution when crimping over glass slats, as breakage can occur.
Open bracket lower leg to allow 5/16" clearance. Re-install louvre slat, with security clip attached,
into the appropriate retainer brackets. Note: Lift back leg of security clip and allow to straddle the
bracket upper leg (Fig. C). Attach retainer clip as shown. Bottom leg of clip slips between louvre
slat and brakcet. Top leg of clip (with flared lip) slips over security clip, just above the locking detent.
Figure B
Upper
Upper Leg
Leg
Bracket
Lower Leg
26950 San Bernardino Ave., Redlands, CA 92374
©
2010 Prime-Line Products
H-3934-INS
Bracket
