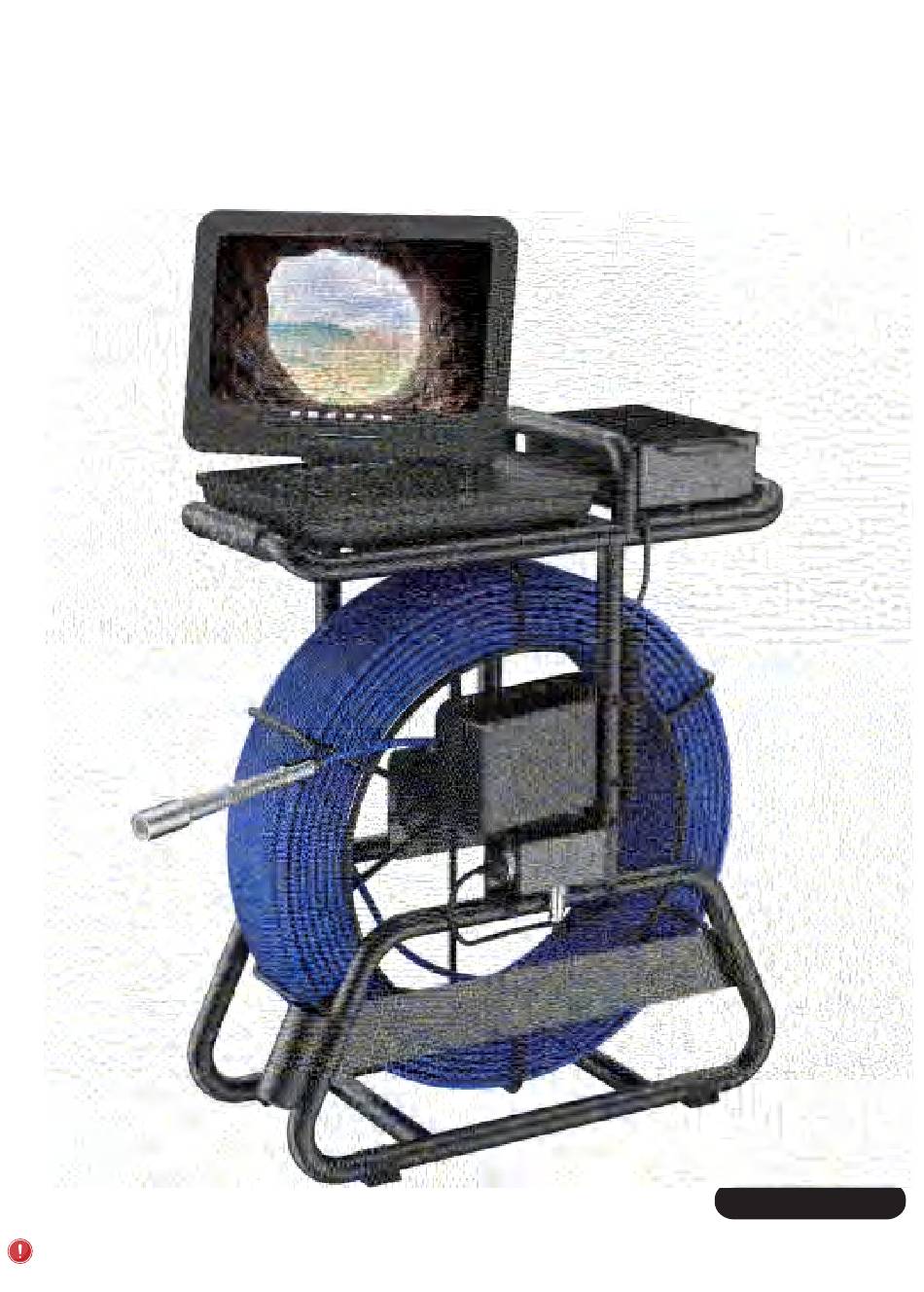

- Page 1 Sewer Inspection Camera User Manual Model: F820 Please read this user manual carefully before using this product...
-
Page 3: Table Of Contents
DE FR IT ES JP Catalog Notice Package List Specification Structure Introduction How to Install the Screen How to Connect the Sewer Camera How to Operate the Protective Cover How to Adjust the LED Brightness How to Use the DVR Function How to Use the Meter Counter Function How to Operate Pushrod How to Use the Microphone &... -
Page 4: Notice
DE FR IT ES JP Notice Safety Warning Please read all safety warnings and all instructions before using this product. Neglect to follow the warnings and instructions may result in electrical shock, fire and potential injury. Please save this manual for future reference. -
Page 5: Package List
DE FR IT ES JP Package List Monitor and Keyboard Metal Bracket and Cable Camera Head DC Adapter 4.25in/108mm Pipe Pulley 1.5in/38mm Protective Cover 16GB Screwdrivers 16GB TF Card User Manual... -
Page 6: Specification
DE FR IT ES JP Specification Camera and Cable Cable Diameter 7mm/0.28inch Cable Material Fiber tube Cable Length 100ft-330ft Optional 23mm Camera Diameter (built-in 512Hz transmitter and self-leveling) Sensor 1/3 CMOS Resolution 12pcs White LED (5 levels of adjustable brightness) Viewing Angle 145 degree Camera Material... - Page 7 DE FR IT ES JP IPS Monitor Size 10.1inch Display Resolution 1024*600 IPS Video record/Audio/Photo Function Meter counter/Keyboard input Monitor Image Colorful Monitor Input Voltage DC 12V Includes 16GB Card TF Card (Max support 128GB Card) English/Russian/French Menu Language German/Chinese Optional Display Operation Press button Video Format...
-
Page 8: Structure Introduction
DE FR IT ES JP 7. Keyboard Operation Structure Introduction Screen Accessories box Camera 7mm cable Cable reel Camera specific bracket Metal bracket Charging port Meter counter Cable reel controller... - Page 9 DE FR IT ES JP CLEAR Battery OFF/ON Keyboard Button Control 1: OFF/ON 2: LED (0-5 gear) 3: Meter Cleared (can switch metric and imperial when long press,meter cleared when short press) 4: Lower battery reminder (please recharge when the LED is flashing) Note: These buttons are currently unavailable and are only compatible with another upgraded model.
- Page 10 DE FR IT ES JP Start or stop video recording;confirm selection in setting mode REC/- Videos or pictures viewing PLAY/+ MENU/EXIT Go into the setting mode or exit >PHOTO Take a photo </ZOOM Zoom in image Display switch 16GB TF card include...
-
Page 11: How To Install The Screen
DE FR IT ES JP 1. How to Install the Screen 135° Flippable 270° Rotatable in horizontal 1>Monitor installation steps: Put the monitor on the box, then tighten the screws 2>Monitor take out steps: Unscrew the hand screw, then take out the monitor... -
Page 12: How To Connect The Sewer Camera
DE FR IT ES JP 2. How to Connect the Sewer Camera 1. Connect the video cable to the AV/IN connector and tighten it 2. Connect the camera and tighten it 3. Press the OFF/ON button on the control panel to turn on the battery... -
Page 13: How To Operate The Protective Cover
DE FR IT ES JP 3. How to Operate the Protective Cover 2. Put the camera protective 3. Screw the 3 white screw on 1. Find the mini screwdriver case on the camera head the protective case, until it was in the package fixed on the camera head 4. -
Page 14: How To Use The Dvr Function
DE FR IT ES JP 5. How to Use the DVR Function 01. How to change the circular recording Press "MENU/EXIT" to access the menu interface, Press ">PHOTO" or “</ZOOM” to select the “Video menu”, Press “REC/-” to enter the submenu Press"REC/-"... - Page 15 DE FR IT ES JP 02. How to record the video Press“REC/-" to start record video and press it again to save the file. 03. How to replay the video Enter path 1: Press "PLAY/+" twice to view the video files. Enter path 2: Press "MENU/EXIT"...
- Page 16 DE FR IT ES JP Press ">PHOTO" or “</ZOOM” to select the “browse video”, Press “REC/-” to confirm to view the video files Press ">PHOTO" or “</ZOOM” to select the target video, then press “REC/-" to replay Finally, press "MENU/EXIT" then press "PLAY/+" to exit.
- Page 17 DE FR IT ES JP 04. How to delete the video Press "PLAY/+" twice to view the video files, Press ">PHOTO" or "</ZOOM" to select the target video. Press "MENU/EXIT" then press ">PHOTO" or "</ZOOM"to select the “Delete” or “Delete All”.
- Page 18 DE FR IT ES JP Press “REC/-" to enter "Delete" or " Delete All", then press ">PHOTO" or “</ZOOM” to select "Delete" or "Cancel", Press “REC/-" to confirm the selection. Finally, press “PLAY/+” to exit 05. How to take photo Press">/PHOTO"...
- Page 19 DE FR IT ES JP 06. How to replay the photo Enter path 1: Press “PLAY/+” to view the photo files. Enter path 2: Press "MENU/EXIT" to access the menu interface, Press ">PHOTO" or “</ZOOM” to select the “Playback function”, Press “REC/-” to enter the submenu Press ">PHOTO"...
- Page 20 DE FR IT ES JP 07. How to delete the photo Press "PLAY/+" to view the photo files, Press ">PHOTO" or "</ZOOM" to select the target photo. Press "MENU/EXIT" then press ">PHOTO" or "</ZOOM"to select the “Delete” or “Delete All”.
- Page 21 DE FR IT ES JP Press “REC/-" to enter "Delete" or " Delete All", then press ">PHOTO" or “</ZOOM” to select "Delete" or "Cancel", Press “REC/-" to confirm the selection. Finally, press “PLAY/+” to exit 08. How to Format Press "MENU/EXIT" to access the menu interface, Press ">PHOTO" or “</ZOOM” to select the “System settings”, Press “REC/-”...
- Page 22 DE FR IT ES JP Press ">PHOTO" or “</ZOOM” to select the “sd card formatting”, Press"REC/-" to enter the selection, Then press ">PHOTO" or “</ZOOM” to choose “no” or “yes”...
-
Page 23: How To Use The Meter Counter Function
DE FR IT ES JP 6. How to Use the Meter Counter Function Press “CLEAR” button or “F7” key first before using this function, it will be counter the meter when the wire reel rotates, and the data will displayed on the screen in real time. Meter counter Cable reel controller... -
Page 24: How To Operate Pushrod
DE FR IT ES JP 01. Meter/Feet Conversion 02. Count Reset Press “F4” key to switch between Meter and Feet Press “F4” key to switch Press “CLEAR” button or “F7” between Meter and Feet key to reset count 7. How to Operate Pushrod... -
Page 25: How To Use The Microphone & Speaker
DE FR IT ES JP 8. How to Use the Microphone & Speaker Press "MENU/EXIT" to access the menu interface, Press ">PHOTO" or “</ZOOM” to select the “System settings”, Press “REC/-” to enter the submenu Press ">PHOTO" or “</ZOOM” to select the “Sound settings”, Press "REC/-" to confirm to turn on/off the sound... -
Page 26: How To Change The System Language
DE FR IT ES JP 9. How to Change the Language Press "MENU/EXIT" to access the menu interface, Press ">PHOTO" or “</ZOOM” to select the “System settings”, Press “REC/-” to enter the submenu Press ">PHOTO" or “</ZOOM” to select the “System Language”, Press"REC/-" each time to toggle between languages... -
Page 27: How To Charge The Battery
DE FR IT ES JP 10. How to Charge the Battery Connect the charger to the alternating current of 100-240V. The red indicator means charging. The green indicator means full charge. Note: to ensure a longer battery lifespan, please charge it in a timely manner. -
Page 28: Product Warranty
DE FR IT ES JP Product Warranty This product is guaranteed for 1 year from the date of purchase. The warranty covers device breakdowns and malfunctions when the device is used in compliance with its intended manner and the instructions provided within the manual. To be covered by the warranty, please provide proof of purchase (Order #), a detailed problem description, and picture proof.
