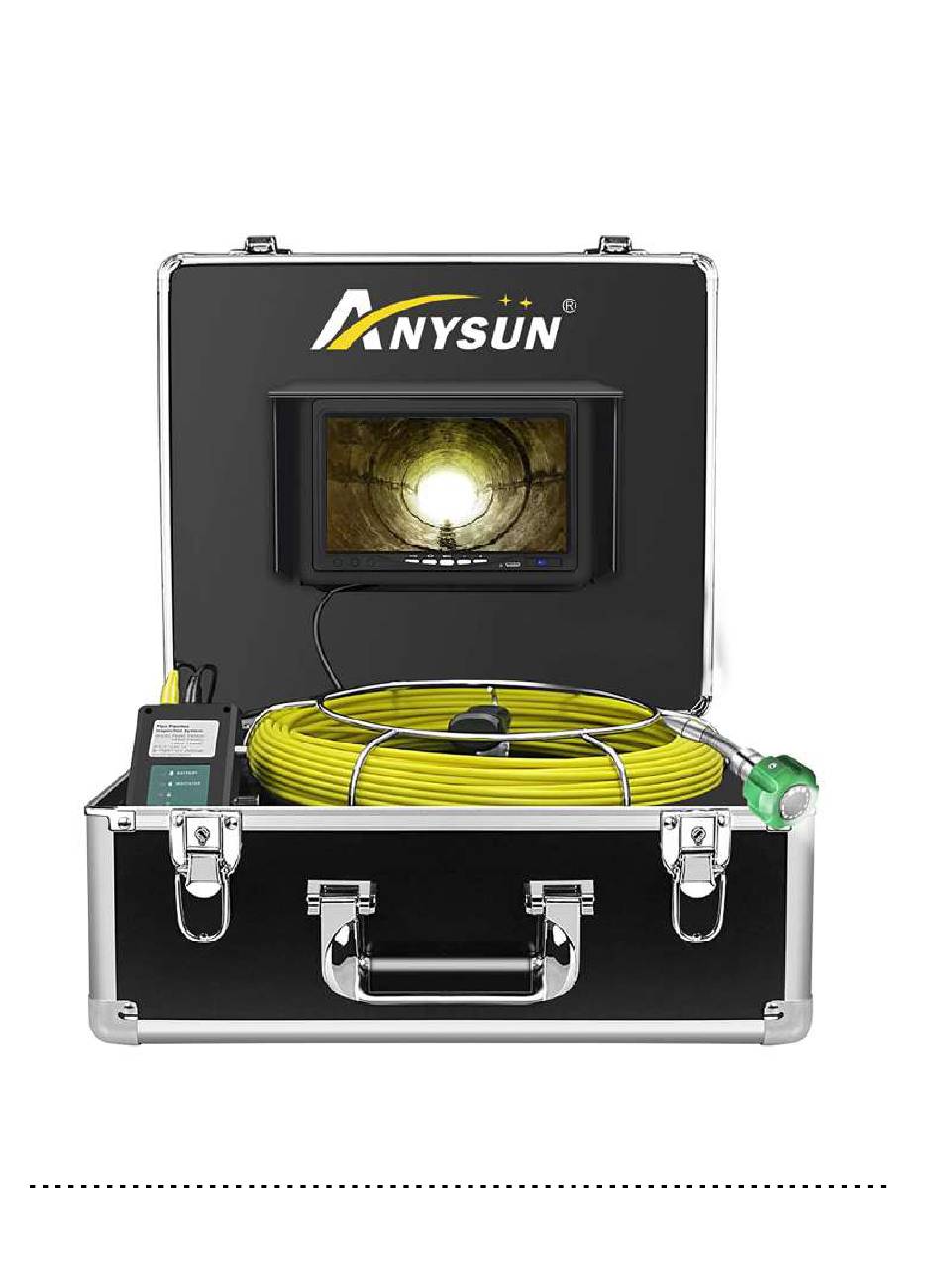

- Page 1 Sewer Inspection Camera Anysun SY3800 User Manual Pleasereadthisusermanualcarefullybeforeusingthisproduct...
-
Page 2: Table Of Contents
16. Warranty 17.How to Contact Seller Thank you for choosing an ANYSUN product. You will find our inspection system to be very useful for site inspection and home maintenance. This industrial inspection system is very easy to use and comes with all the needed equipment to begin your first survey. -
Page 3: Notice
1.Notice Please read all instructions. Save all warnings and instructions for future reference. 1. Handle with care and keep away from any heat source such as radiators, stoves, or other appliances that produce heat. 2. If the users disassemble or deliberately damage the inspection system, it will void the warranty. -
Page 4: Battery Control Box Display
3.Battery Control Box Display Connect to Screen Video Cable Screen Power Output/Charger VIDEO IN LED DC OUT CAMERA DC OUT LED Brightness Adjustment ON/OFF Battery Power Display... -
Page 5: How To Power On The Sewer Camera
4.How to Power on The Sewer Camera 1.Connect all cables. Each wire on the connection cable is marked with “VIDEO”, “LED DC”, “CAMERA DC” corresponding to “VIDEO”, “LED DC”, “CAMERA DC” on the side of the power control box. 2.Connect camera head to cable camera port. 3.Switch “ON”... -
Page 6: Monitor Operation
5.Monitor Operation REC/OK OFF/ON Play down Menu/Exit 1.REC/- : Press to record video and press again to end recording. 2.PLAY/+ : Press to play and press again to pause recorded video. 3.MENU/EXIT: Press to enter into menu. Press “MENU/EXIT” to toggle between each setting. -
Page 7: How To Remove And Install Memory Card
6.How to Remove and Install Memory Card 1. Press buttons on both sides to remove display. 2.Find the memory card on the side of the display, press to remove and install. -
Page 8: How To Record Video
7.How to Record Video 1.Turn on the sewer camera. 1. Press “REC/-” to record, press again to end recording. -
Page 9: How To View Recorded Video
8.How to View Recorded Video. Press “PLAY/+” to view recorded video, press “<” “>” to select video, press “PLAY/+” to play and pause, press “MENU/EXIT” to exit. 9.How to Take Picture 1. Press “MENU/EXIT” button to enter menu. - Page 10 2. Press “MENU/EXIT” button to select “picture” mode. 3.. Press “<” and “>” to select “Snapshot”.
- Page 11 4. Press” PLAY/+” to take picture, picture will be saved automatically.
-
Page 12: How To View Picture
10.How to View Picture 1.Press “MENU/EXIT” to enter menu. Press “MENU/EXIT” to toggle to picture mode and select “Picture View”. 2.Press “PLAY/+” to confirm selection. Go to “Picture View”. Press “<” and “>” button to select the picture you want to view. -
Page 13: Camera Diagram
11.Camera Introduction: Stainless Steel Spring 12pcs Adjustable Lights 68 Waterproof Camera 21mm 40mm 21mm 120mm... -
Page 14: How To Operate Pushrod
12.How to Operate Pushrod 1.Pull the cable: Hold the handle with your left hand. The cable needs to be extended and hooked onto a hook on the handle and placed on top of the guardrail via the hook, then pull cable with right hand to release the cable. 2.Wrap Cable: The cable needs to be placed onto the hook on the handle and placed on top of the guardrail, hold the handle with your left hand and push the line in with your right hand. -
Page 15: How To Rotate The Screen Image
13. How to Rotate the Screen Image 1.Press “MENU/EXIT” button to enter menu, Press “MENU/EXIT” button to select the second mode. Press “<” and “>” button to select “Rotate” mode. 2.Press “PLAY/+” button to confirm selection, press “PLAY/+” button again to star rotate, Rotate 90 degrees with each press of the “PLAY/+”... -
Page 16: Package Includes
15.Package Include: Aluminum box HD Camera Battery Cable Wheel Power Plug Screen Screwdriver Connection Cable... -
Page 17: Warranty
16.Warranty This product is guaranteed for 1 years from the date of purchase. The warranty covers device breakdown and malfunctions when the device is used in compliance with the manner its intended and the instructions that are provided within the manual. To be covered by the warranty, proof of purchase is required (Order #) and the product must be in its entirety.
