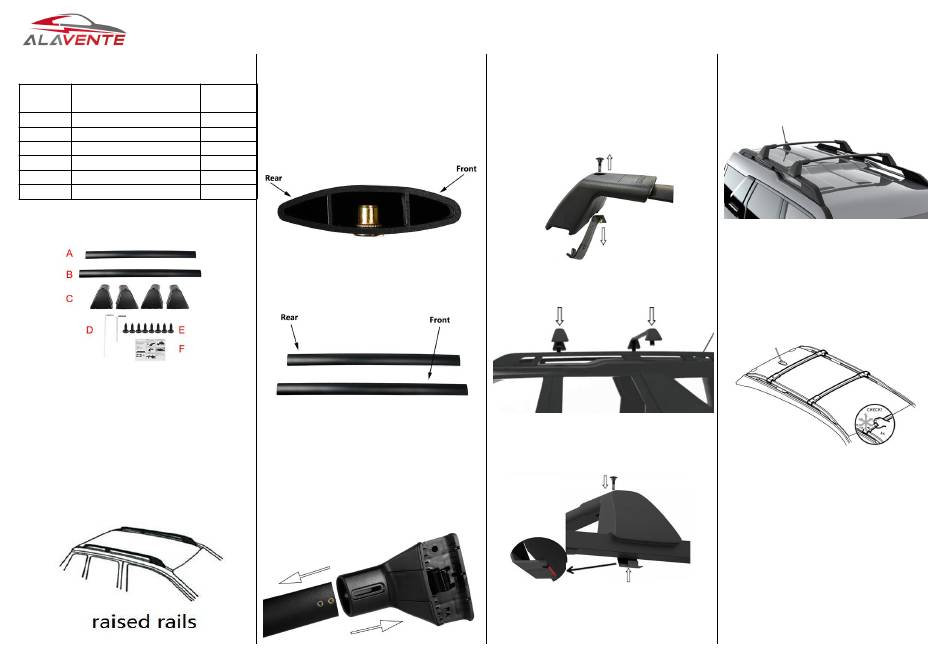

ALAVENTE CZA00L01A44-0FBA Installation Instructions

Accessories List:
Serial
Product Name
Number
A Rear Crossbar Bracket
B Front Crossbar Bracket
C Installation Bracket
D M6 Wrench
E M6 Screws
F Installation Instructions
Note: Maximum load 165 LBS only for
top crossbar
Compatible Vehicles:
Roof rack fit for Ford Bronco Sport
Base 2021-2022 & Bigbend 2021-2022
& Outer-Banks 2021 On-Road
NOTE: These crossbars are designed to
fit cars with raised rails only. They are
not compatible with flush rails or cars
without rails.
INSTALLATION INSTRUCTIONS
1. Before installing, please check the
direction of crossbars.
Quantity
Note: The direction can be confirmed
1
by the side of crossbars. Larger portion
1
of this shape is its front direction.
4
2
8
1
2. Select the front crossbar bracket (B
-Longer) and find the left-front and
right-front installation bracket (C).
3. Use M6 screws (E) to fix installation
brackets (C) to the front crossbar
bracket (B) (When fixing installation
brackets, you can adjust the crossbar
based on the width of roof before
completely fixing).
4. Use a M6 wrench(D) to loosen the
screw on the installation brackets (C),
then take away the metal kit inside the
bracket and fully open the installation
brackets(C).
5. Adjust the size of installation
brackets(C) according to side rails.
6. Put on the metal kit and tighten the
screw to clamp the installation
brackets(C) on side rails.
7. Use a wrench to tighten screws to
ensure that the roof rack is firmly fixed
on the roof.
1
8. The installation steps of the rear
crossbar bracket are the same as the
front crossbar bracket.
9. Ensure that the roof rack is
correctly installed on the roof rails.
10. After installing the crossbar
brackets, shake each crossbar to
ensure its firmness.
NOTE:
1. Store the instructions and M6
wrench in the glove box for future
replacement or disassembly.
2. Securely tighten the shoulder bolts
on both the roof rack crossbar and
clamp bracket.
3. Place the instructions and hex
wrench in the box for future
replacement or disassembly.
