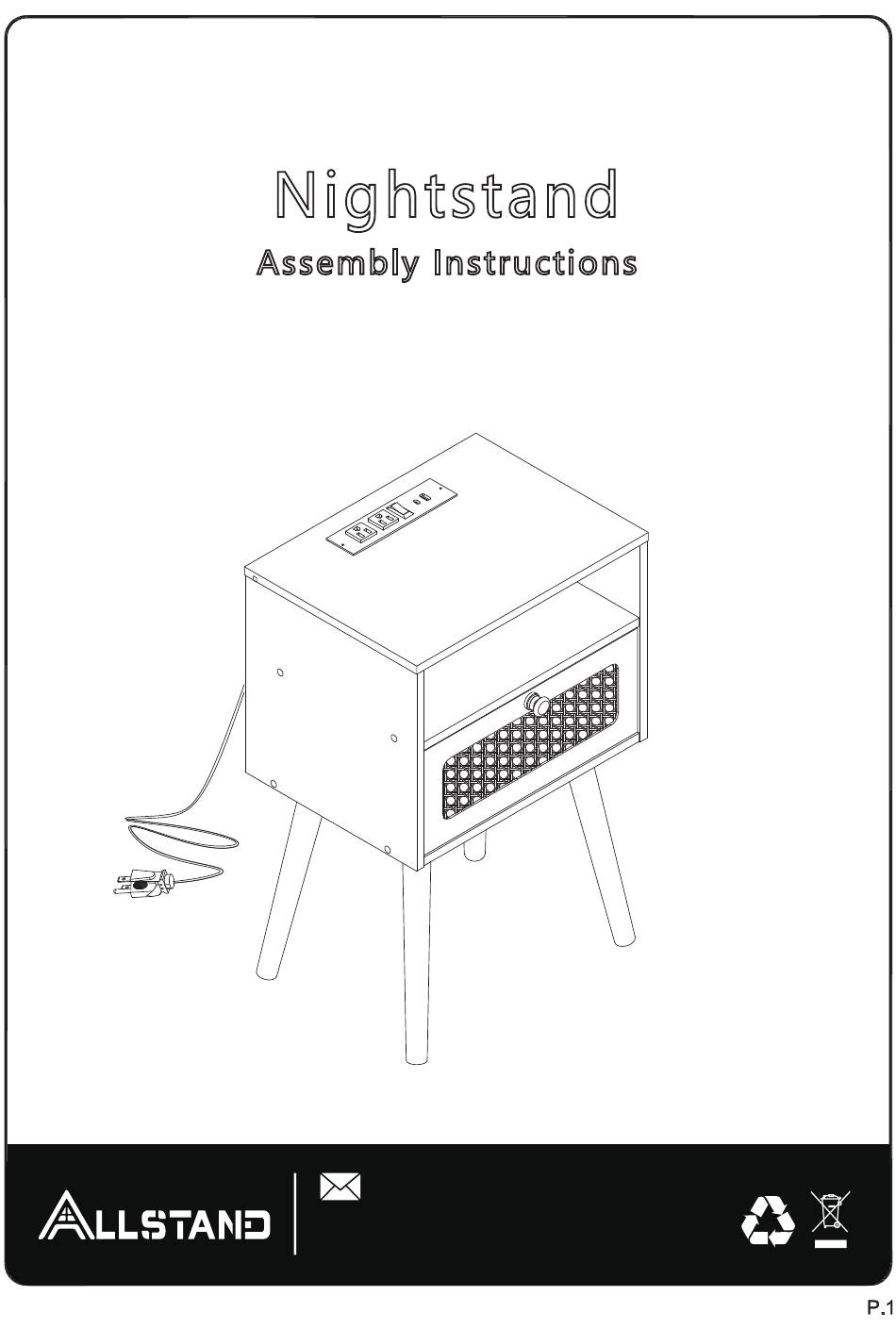

- Page 1 Nightstand Assembly Instructions Note: There is also a more detailed installation video on the product detail page on Amazon. After-Sales Email： support@allstand.net Made in China...
-
Page 2: General Assembly Guidelines
General Assembly Guidelines Ensure that all parts and hardware are available before beginning assembly. Follow each step carefully to ensure the proper assembly of this product. III. Two people are recommended for ease in the assembly of this product. IV. The main type of hardware used to assemble this product is screw . Power tools should not be used to assemble this product . - Page 5 Step 1：Connect ⑩ ⑪ parts to ⑫ from the left and right sides with P to J. Step 2：Insert part ⑬ into Step 1 notch and install B to part ⑨ with P.
- Page 6 Step 3：Use P to attach the A to the Step 2 hole to connect the part ⑨ . Step 4：Use P to install DR, DL rails into Step 3 with K.
- Page 7 Step 5：Use P to install the H into Step 4 with G. Step 6：Use P to attach CL and CR to each of the ② ③ parts .
- Page 8 Step 7：Install E to ④ ⑤ parts, then use F to connect ③ to ④ ⑤ parts through O. Step 8：Install E into the ④ ⑤ parts, then use F to connect the ② part to Step 7 via O.
- Page 9 Step 9：Insert ⑥ ⑦ parts into Step 8 notch. Step 10: Install B to ① part with P.
- Page 10 Step 11: Install E into the corresponding hole of Step 9, then attach the ① part to Step 9 with P. Step 12: Attach the I to the pin hole of Step 11 with K through P.
- Page 11 Step 13: Attach the ⑧ part to the corresponding hole of Step 12. Step 14: Attach the N to the bottom of the ⑧ part in Step 13.
- Page 12 Step 15: Attach the ⑭ part to the corresponding holes of Step 14 by using K for P. Step 16: Place the Step 5 drawer into Step 15.
- Page 13 Step 17: Attach the L to the Step 16 back plate with P and M.
