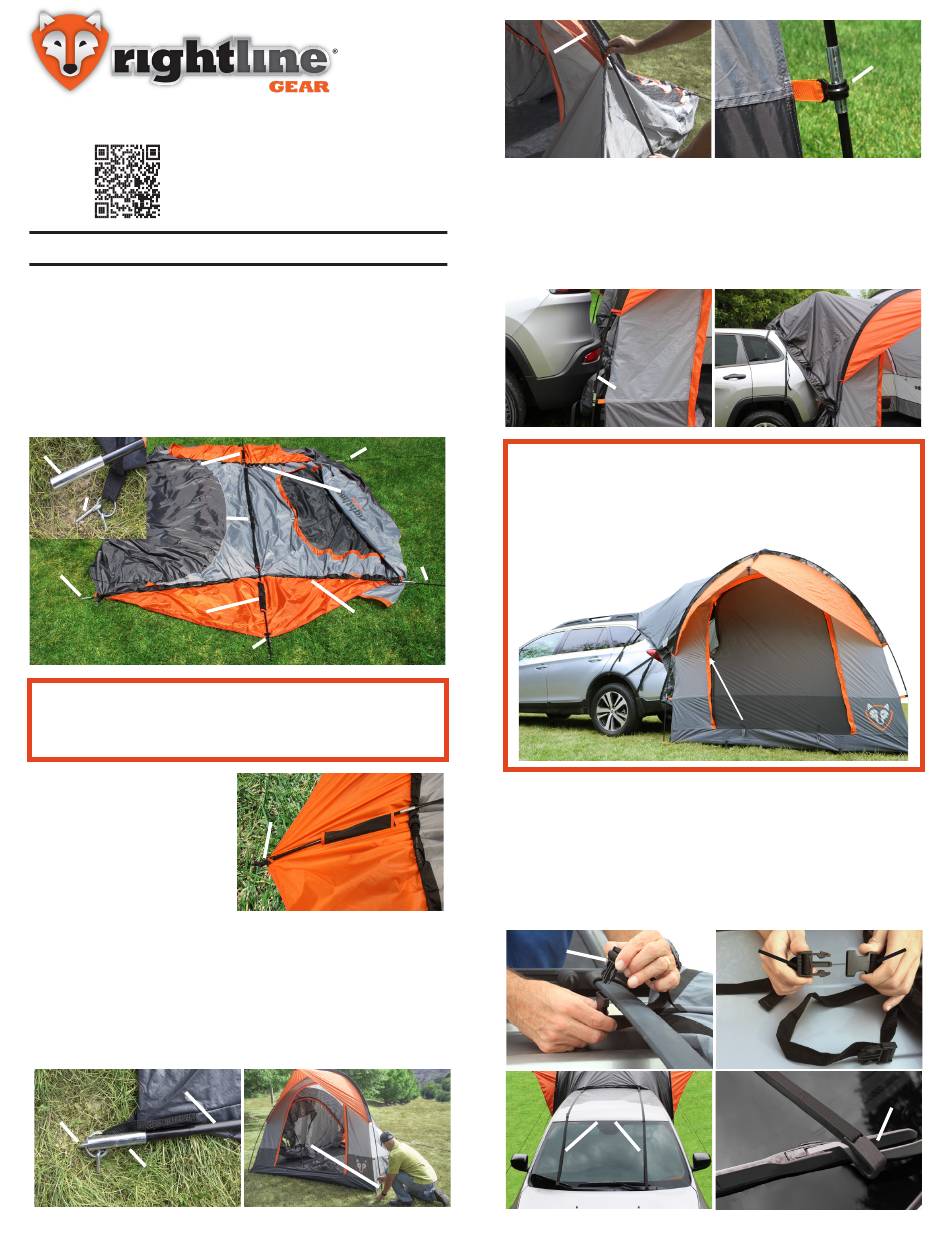

Rightline Gear 110907 Manual

SUV Tent
Set Up
https://rightlinegear.com/support-
Video:
faqs/product-videos/
Set Up The Tent
1-
Lay the tent over a flat area, free from rocks and sticks.
2-Stake the (4) corners of the tent and the (2) loops on
each side. Make sure the tent's floor is pulled smooth.
3-Thread the (2) end poles (long poles) through the end
pole sleeves (Fig 1) until their leading ferrules reach the
pole pins on the opposite side (Fig 2).
4-Thread the top pole (short pole) through the top pole
sleeve and the (2) awning pole sleeves (Fig 1).
Awning Pole
Leading Ferrule
Sleeve
Pole
Pin
Top Pole
Sleeve
Fig 2
Leading Ferrule
Awning Pole
Sleeve
Fig1
Top Pole
CAUTION: DON'T USE EXCESSIVE FORCE WHEN
BENDING THE TENT POLES. MAKE SURE THE POLE
SLEEVES SLIDE OVER THE POLES WITHOUT HANGING
UP.
5-Place one end of the
top pole into one of the
awning pole pockets (Fig
3). Bend the pole and
place its opposite end
into the other awning
pole pocket.
6-Place the end poles' leading ferrules over the pole pins
Fig (4).
7-Raise the tent by bending the end poles until their trail-
ing ferrules can be placed over the pole pins (Fig 5). Make
sure to hold the end of the pole sleeves open as the poles
slide through (Fig 6).
8-Attach the pole clips to the end poles (Fig 7).
End Pole
Pole Pin
Leading Ferrule
Fig 4
110907
End Pole
End Pole
Sleeve
End Pole
End Pole
Sleeve
Awning
Pole Pocket
Fig 3
Trailing Ferrule
Fig 5
Pole Sleeve
Fig 6
9-Back up the vehicle until its bumper touches the lower
sleeve (Fig 8). Make sure the vehicle is centered to the tent.
10-Place the lower sleeve under the vehicle's bumper but
above the vehicle's muffler.
11-Place the upper sleeve over the raised rear hatch door
(Fig 9).
Lower
Sleeve
Fig 8
WARNING: DO NOT OVERTIGHTEN THE VEHICLE
SLEEVE STRAPS; DAMAGE TO THE TENT'S DOOR
ZIPPER CAN OCCUR. IF THE TENT'S DOOR ZIPPER IS
DIFFICULT TO CLOSE, THE VEHICLE SLEEVE STRAPS
ARE OVERTIGHTENED (FIG 10).
Fig 10
12-Buckle the upper sleeve's (2) top straps around the ve-
hicle's roof rack rear cross bar (Fig 11). If the vehicle is
without a cross bar, clip the (2) extension straps to the top
straps (Fig 12) and attach the extension straps' J-hooks to
the vehicle's windshield wipers (Fig 13 and Fig 14).
13-Lower the rear hatch door and buckle the lower sleeve's
E strap over it (Fig 15). Adjust the E strap so the lower sleeve
is pulled tight when the rear hatch door is raised again.
Top Strap
Fig 11
Extension
Straps
Fig 13
Pole Clip
Fig 7
Upper
Sleeve
Fig 9
Difficult to
Close
Top Strap
Extension
Strap
Fig 12
J-hook
Fig 14
