RDINSCOS MT19B User Manual

Moisture meter
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

MOISTURE METER
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT19B and is the answer not in the manual?

Questions and answers

Related Manuals for RDINSCOS MT19B

Summary of Contents for RDINSCOS MT19B

  • Page 1 MOISTURE METER USER GUIDE...
  • Page 2 Introduction: Congratulations on your purchase of this Moisture Meter. This instrument conductivity moisture meter specifically designed for the softwood/hardwood /packing material /building material industries. The instrument has two classifications of softwood and hardwood to choose from, enabling the user to take accurate moisture measurements in all kinds of wood species.
  • Page 3 Description:...

  • Page 4: Operation

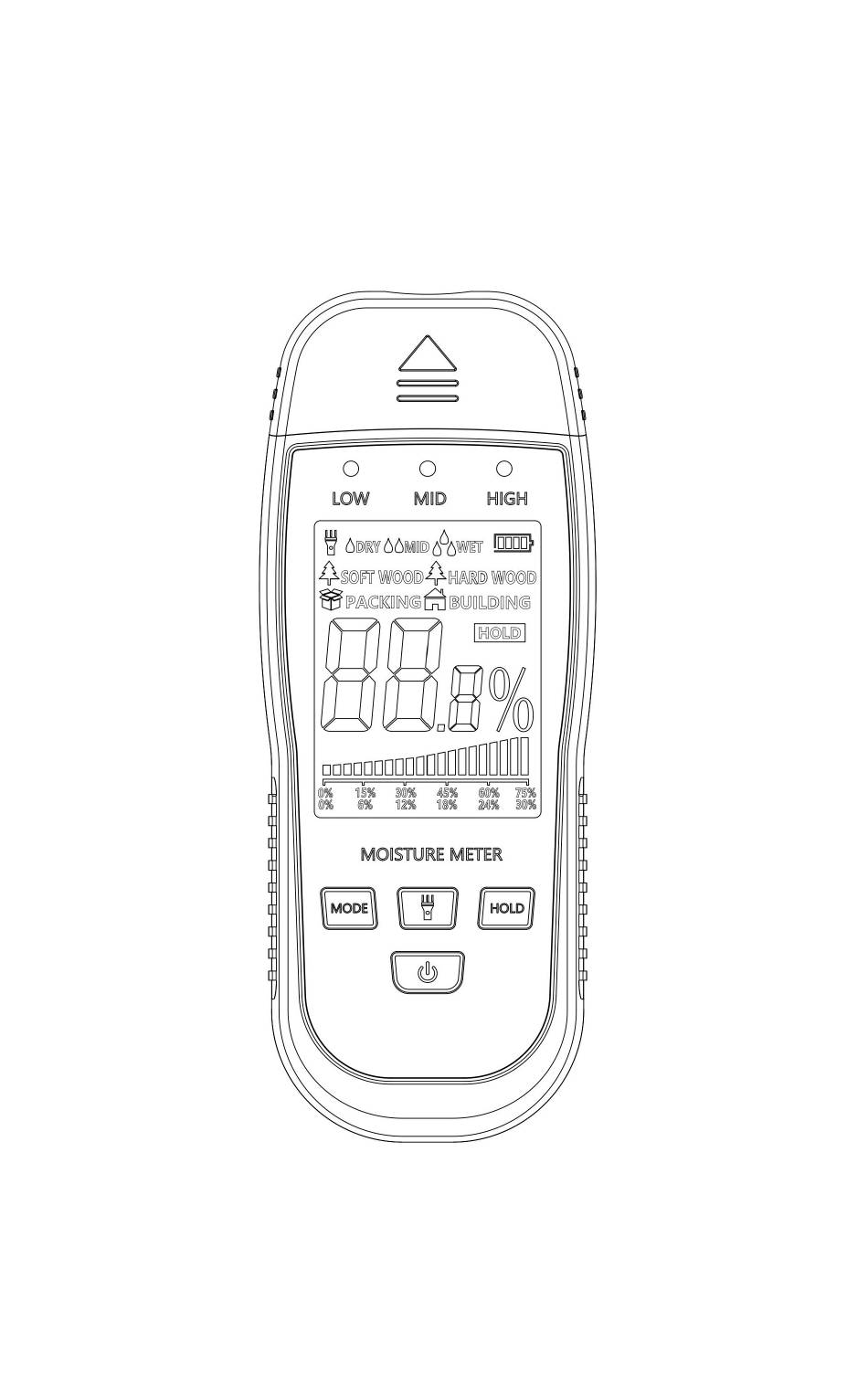

    1.Measurement pins 2.Indicator light 3.Dry Indicator 4.MID Indicator 5.Wet Indicator 6.Flashlight indicator 7.Battery Power Indicator 8.Softwood Mode 9.Hardwood Mode 10. Packing Mode 11. Building Mode 12. Measurement Reading Display 13. Reading Hold Indicator 14. Measurement Reading analog Display 15. Flashlight On/Off Key 16.

  • Page 5: Measurement Instructions

    Measurement Instructions: 1. Remove the cap to expose the needle electrodes. 2. Power ON the Instrument. 3. Select the appropriate wood calibration scale softwood/hardwood using "MODE" button. 4. Or Press “MODE” key to Choose Packing Mode or Building Mode. Packing mode is used for testing Cardboard/Carton or other packing materials.
  • Page 6 Care and Maintenance: When the instrument is not in use, store the instrument in a stable, dust-free environment out of direct sunlight. Remove the battery from the instrument if it is to be stored for periods of more than one month, or when the low battery power symbol appears on the display.

  • Page 7: Specifications

    Specifications: LCD Display with Backlight  Principle: Electrical resistance  Soft/Hard Wood Range: 5~75%  Packing Range: 5~75%  Building Range: 1.5~30%  Resolution: 0.1%  Accuracy: ±0.5%  Electrode length: 10mm(0.4")  Electrode pins: Removable  Auto Power OFF: After approx.5 minutes ...

  • Page 8: Packing Mode

    Wood Species Group Table: Wood Group Wood Species Lauan, Fir, Cork, Cedar, Softwood Beech… Teak, Walnut, Afrormosia, Rubber Tree, Imbuia, Kokrodua, Niove Bidinkala, Hardwood Keruing, White Poplar, Tola, Ash, Elm, Maple, Padauk, Oak, Cherry… PACKING MODE: Cardboard, Carton, Paper BUILDING MODE: Sheetrock, Wall Board, Floor...
