- Page 1 MOISTURE METER USER GUIDE Feel free to contact us joss@reddragonmeter.com...
-
Page 2: Function Description

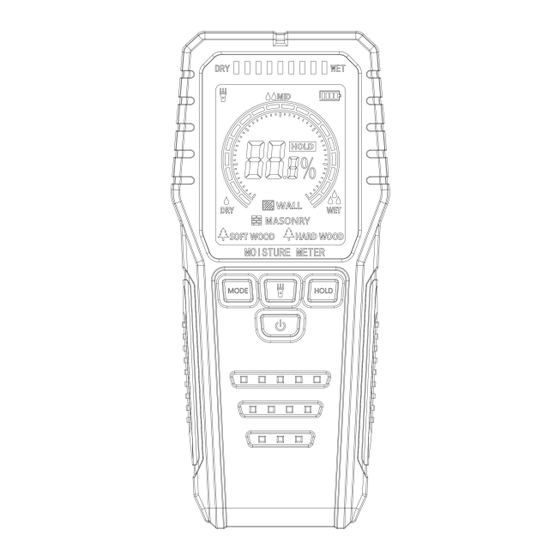

1. Function Description 》 》 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ The meter is a pinless instrument that can detect moisture up to 3/4 in. (19mm) below the surface of the following materials: wallboard, masonry, hardwood and softwood. - Page 3 2. Product schematic 》 》 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Product component description Front view - 2 -...

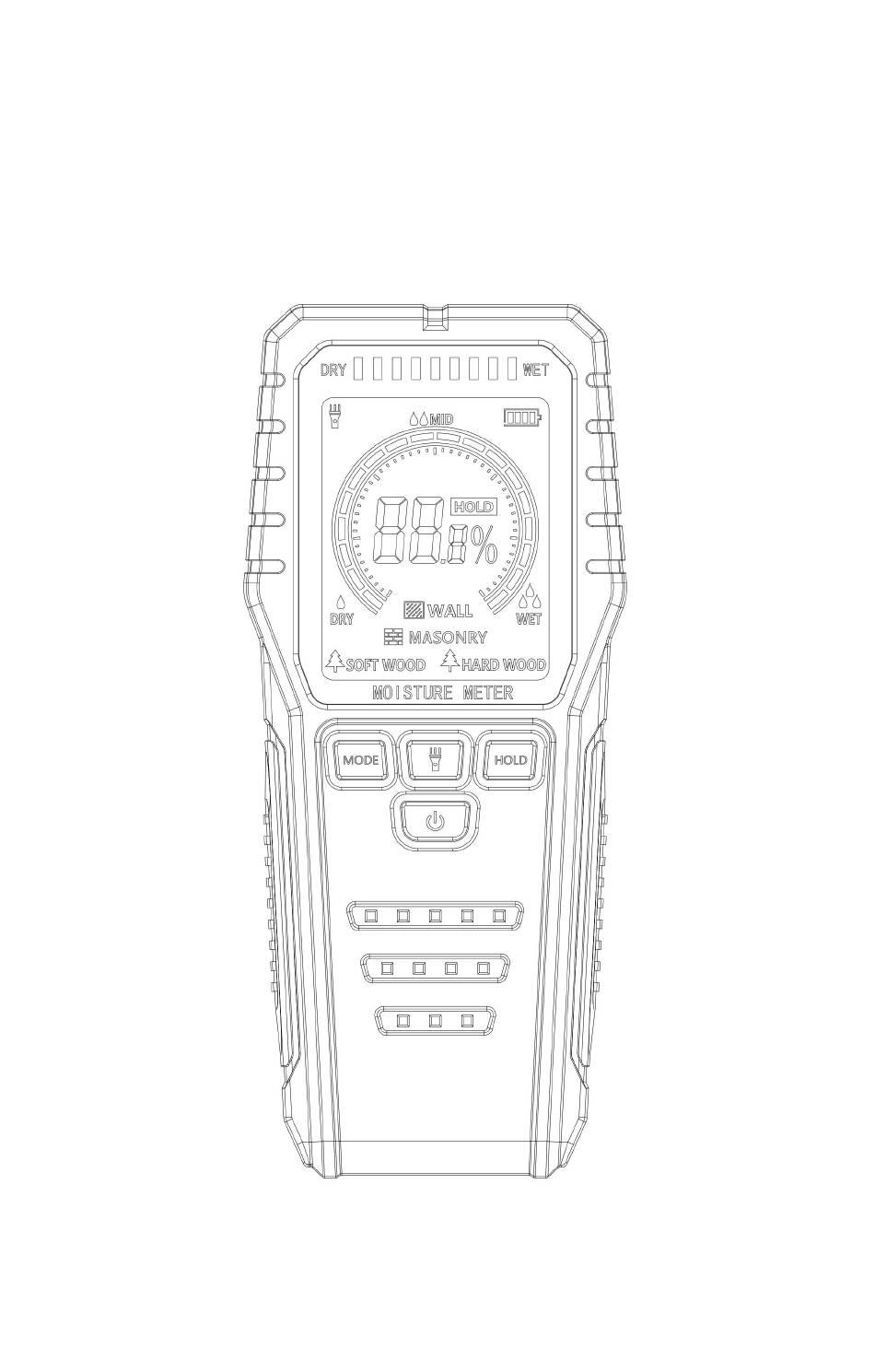

- Page 4 1. Moisture level indicator 2. Flashlight indicator 3. Analog proportion display 4.8.13 Moisture level icon "dry" "medium" "wet" 5. Softwood measurement mode (loose, low-density wood) 6. Measurement mode selection button 7. ON/OFF butto 9. Battery indicator 10. Reading display 11. Reading Hold Indicator 12.
-
Page 5: Back View
instrument below buttons) Back view 1. LED of Flashlight 2. Sensor 3. Moisture level reference 4. Wear-resistant foot pads - 4 -... -
Page 6: Technical Parameter
5. Battery compartment warning： The instrument has been calibrated before leaving factory, in order achieve measurement for best results, please do not use the calibration function if there is no need. 3. technical parameter 》 》 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Detection value Minimum detection area 50*50mm... - Page 7 Storage Temperature -10~50℃ (14~22℉) Power Source 1×9V battery Dimensions 150×67×28.5mm Weight 160g 4. Operation instructions 》 》 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4.1 Battery The instrument use 9V dry battery or 9V rechargeable battery.
- Page 8 Ideally, the thickness of the measured material should be at least 19mm. If your test object is too thin, the instrument will measure the material below it and produce inaccurate readings. One way to compensate for thin materials is to stack measurement materials. warning：...
-
Page 9: Kind Reminder
press or knock the body strongly. 4）The measuring object of the instrument is a solid surface, please do not use it for measuring organic liquids. 5） Please do not attach the sensor of the instrument to water for measurement. Please use the specified battery for power 6）... - Page 10 "00.0%" when different parts are measured 6. maintenance 》 》 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6.1）When the battery power is low, the backlight will be dim. To ensure accurate measurement of the instrument, please replace with new batteries in time.。...
- Page 11 8. Commonly tested materials 》 》 Group Example Lime wall, soil wall, cement wall, WALL roof MASONRY Brick wall, stone wall, floor SOFTWOOD Lauan ,Fir, Cork, Cedar, Beech… Teak, Walnut, Afrormosia, Rubber Tree, Imbuia, Kokrodua, Niove HARDWOOD Bidinkala, Keruing, White Poplar, , Tola, Ash, Elm, Maple, Padauk, Oak, Cherry…...
