PowerTec 17000 Mounting Instructions

Workbench Caster
Mounting Instructions
Workbench
Lift
Leg
Bracket
Lift
Pedal
Caster Plate
4¾"
Mount
2"
Floor

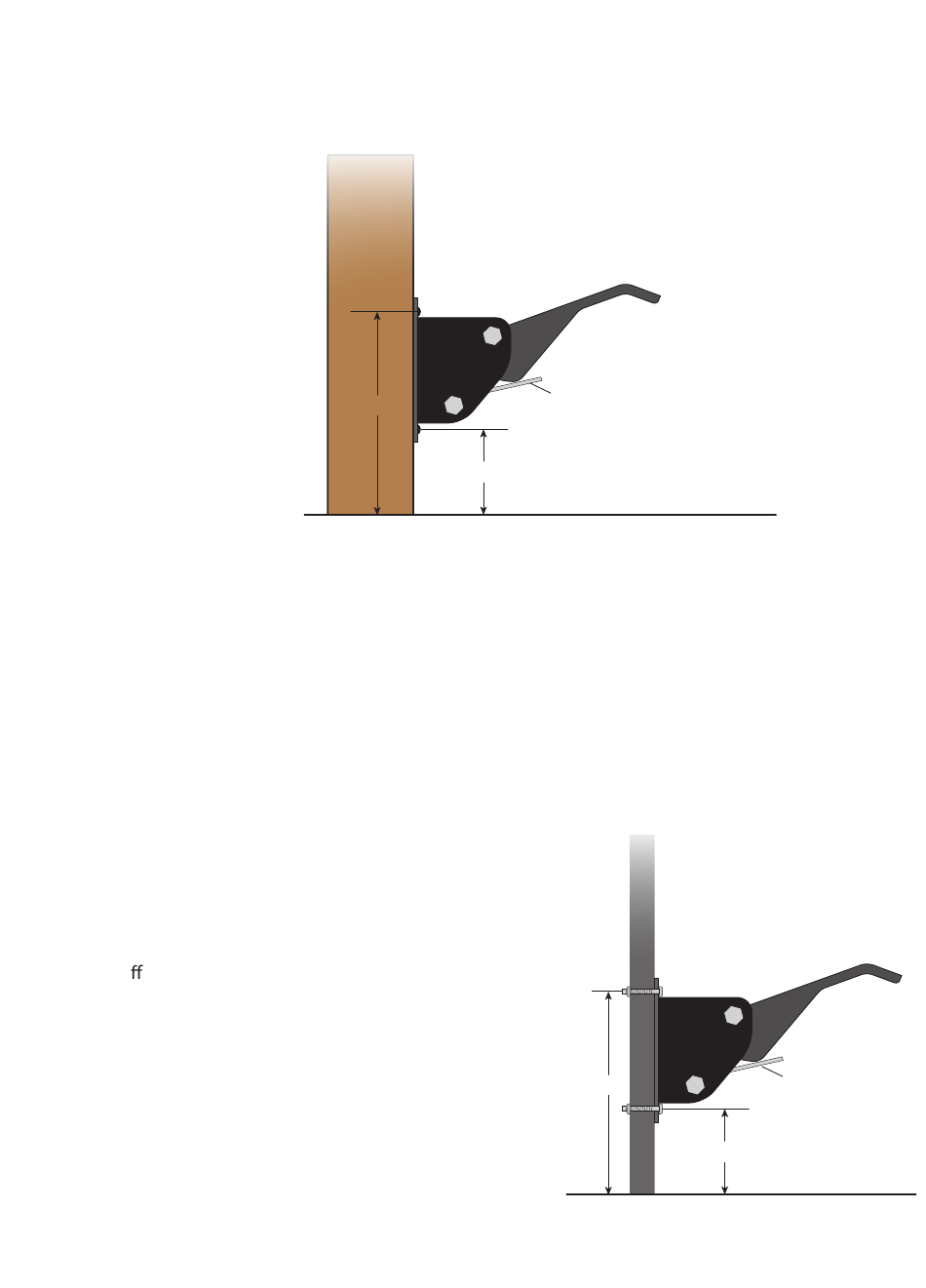

Installation Instructions:
1. Mark your drill points on the workbench leg at the 2" and 4-3/4" marks respespectively
2. Drill the pilot holes on the workbench leg.
3. Attach the lift bracket and pedal to the workbench leg using the wood screws provided.
4. Attach the casters to the lift bracket assembly using the nuts and lock washer that are
provided.
Please Note: You may need to remove the caster wheel from the caster plate to attach and secure the lift bracket to
the workbench leg.
Other General Applications
Steel Post
or leg
The Workbench Casters can be used on many
Lift
di erent tables or stands other than work-
Bracket
benches. This includes router table stands, lathe
Lift
Pedal
stands or anywhere in your shop where you
need mobility for a larger item. When installing
the casters on metal stands you will need to use
Caster Plate
4¾"
nuts, bolts and washers (not included) to prop-
Mount
erly secure the assembly. The same process as
shown above should be followed.
2"
Floor
