ARKSEN 005-PBK-E2 Owner's Manual

Premium hitch mounted electric bike rack platform style (2 bike)
Hide thumbs

Advertisement

Table of Contents

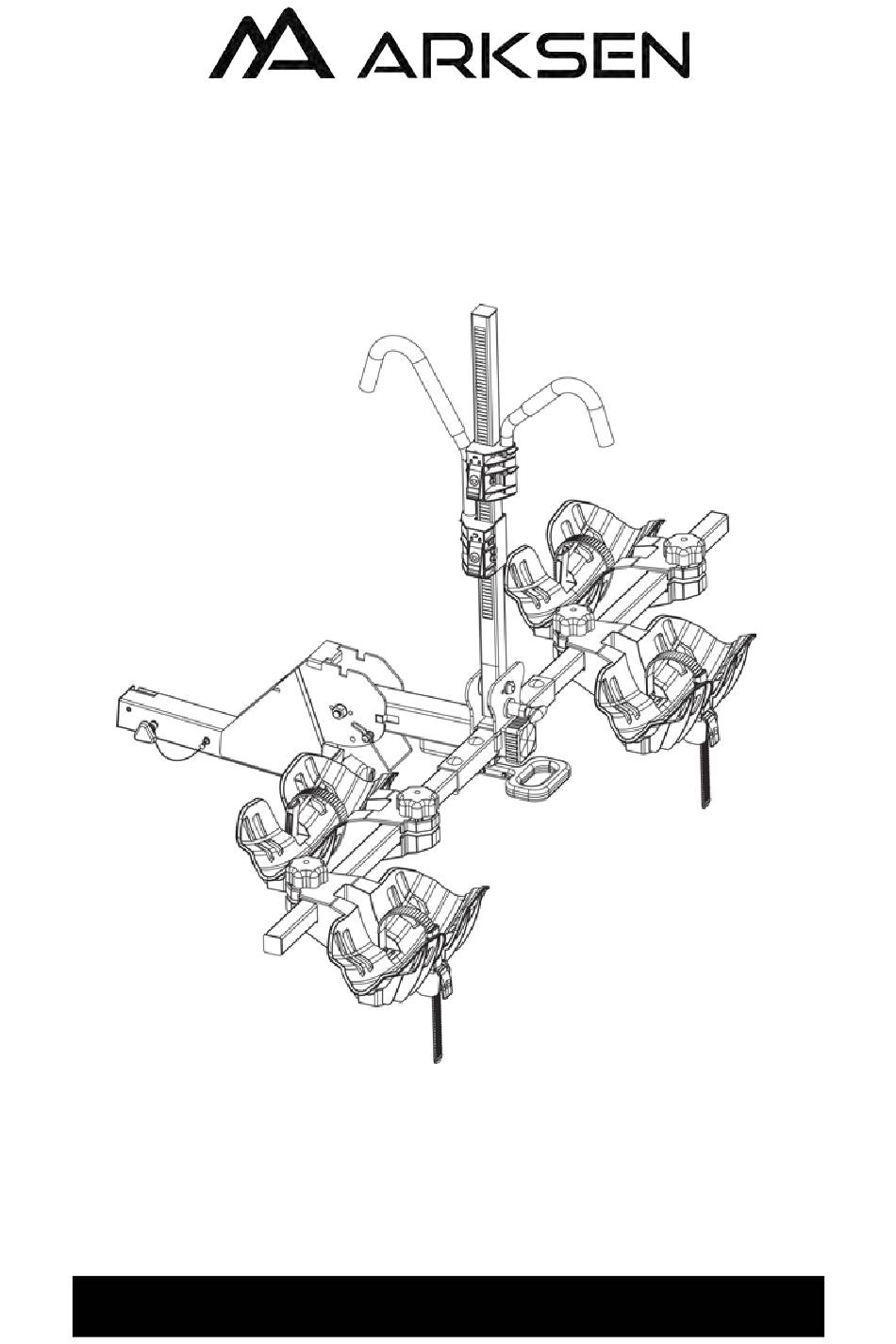

Premium Hitch Mounted Electric Bike Rack
Platform Style (2 Bike)
OWNER'S MANUAL
⚠
WARNING! CAUTION!
Read carefully and understand all ASSEMBLY AND/OR OPERATION
INSTRUCTION before using the product. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Item# 005-PBK-E2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 005-PBK-E2 and is the answer not in the manual?

Questions and answers

Related Manuals for ARKSEN 005-PBK-E2

Summary of Contents for ARKSEN 005-PBK-E2

  • Page 1 Platform Style (2 Bike) OWNER’S MANUAL ⚠ WARNING! CAUTION! Read carefully and understand all ASSEMBLY AND/OR OPERATION INSTRUCTION before using the product. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 005-PBK-E2...
  • Page 2 Thank you for purchasing our product. This manual covers operation and maintenance information about the product. Read carefully and understand all instruction before using the product. All information in this publication is based on the latest product information available at the time of approval for printing.

  • Page 3: Specification

    SAVE THESE INSTRUCTIONS SPECIFICATION Model Number 005-PBK-E2 2 Bikes Max. Load Capacity 170 lb Fitting Fit 2” steel hitch tube...

  • Page 4: Package Content

    PACKAGE CONTENT Mounting Bracket Vertical Tube Horizontal Tube Short Hook Long Hook Wheel Holder M8 x 45 Bolt Locking Knob Wheel Strap...
  • Page 5 PACKAGE CONTENT M10 x 55 Bolt x4 M6 x 16 Bolt x2 M10 x 60 Bolt x1 10 Flat Washer x4 Washer x2 M10 Lock Nut x4 M10 Lock Nut x1 Tie Down Strap Reflector Sticker Buckle Pin V-U-2024-02-02...

  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTION Required Tools (Not Included) Vehicle Hitch Receiver Insert the mounting bracket (1) into your vehicle hitch receiver, then secure the mounting bracket in place by inserting and thightening the provided triangle locking pin.
  • Page 7 ASSEMBLY INSTRUCTION LOCK UNLOCK Tighten the knob and make sure the bracket is tightly fit into the vehicle hitch receiver, then use the key (16) to lock the turning knob. V-U-2024-02-02...
  • Page 8 ASSEMBLY INSTRUCTION Insert the buckle pin (15) throuth the mounting bracket.
  • Page 9 ASSEMBLY INSTRUCTION 10 10 Insert horizontal tubes (3) to the side of the mounting bracket. Secure the horizontal tubes to the mounting bracket with M10 x 55 bolts (10). V-U-2024-02-02...
  • Page 10 Note:Pull out the black pin a little bit.
  • Page 11 Note: Leave bolts 50% tightened. V-U-2024-02-02...
  • Page 12 Note: Leave bolts 100% tightened. Slide wheel holders to the horizontal tube.
  • Page 13 ASSEMBLY INSTRUCTION Attach M6 x 16 bolts (11) to the horizontal tube to prevent the wheel holders from accidently falling out. V-U-2024-02-02...
  • Page 14 ASSEMBLY INSTRUCTION Press and slide down Slide the long hook (5) and then the short hook (4) into the vertical tube. Adjust the hooks to your desired height position and lock to secure it in place.
  • Page 15 USER INSTRUCTION (LOADING THE BIKES) How to loose the strap before loading the bikes. 2.Then can loose the strap. WARNING! V-U-2024-02-02...
  • Page 16 owner’s manual USER INSTRUCTION (LOADING THE BIKES) LOOSE THE WHEEL STRAP 1.Press here. 2.Loose the wheel strap. ⚠ATTENTION! • Bikes must be securely straped on the rack during transportation. • Locking knobs must be tighten after adjusting the position of the hooks. •...

  • Page 17: User Instruction

    owner’s manual USER INSTRUCTION NOTE: Use tie-down strap to tie the bike to the bike rack to provide extra security. V-U-2024-02-02...
  • Page 18 owner’s manual USER INSTRUCTION (TILT FUNCTION) 1. Remove the buckle pin. Note: Press down the quick release on the mounting Bracket and fold up the bike rack. 2. Carefully pull and tilt the rack. Tilt the rack forward for easier vehicle trunk access. ⚠ATTENTION! WARNING! •...
  • Page 19 USER INSTRUCTION (FOLDING FUNCTION) Pull out the black pin and fold the vertical tube down first, then insert the pin to the horizontal position. ⚠ATTENTION! WARNING! • Make sure the rack is install to the car receiver properly to prevent the rack falling off the vehicle and creating potential road hazard.
  • Page 20 owner’s manual USER INSTRUCTION (FOLDING FUNCTION) Note : Press down the quick release on the mounting Bracket and fold up the bike rack ⚠ATTENTION! WARNING! • Make sure the rack is lock into the folded position after folding up.
  • Page 21 V-U-2024-02-02...
