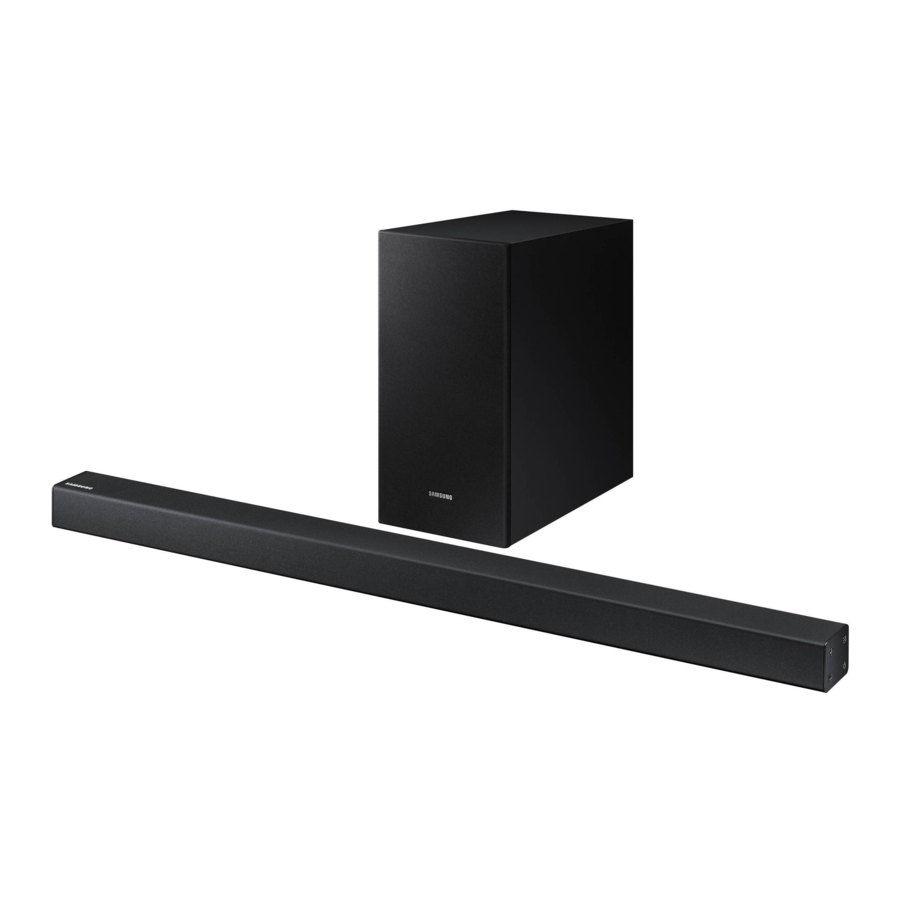

Samsung HW-R450 Manual

CHECKING THE COMPONENTS

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)
• The power components are labelled (). For more information about power connections.
• To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care.
• Depending on the region, the appearance of the AC plug may differ from the plug displayed above, or it may be supplied integrated with the AC/DC adapter.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

PRODUCT OVERVIEW

Front Panel / Right Side Panel of the Soundbar

Bottom Panel of the Soundbar

1	Source	Selects the source input mode. (D.IN / AUX / BT / USB) To turn on "BT PAIRING" mode, change the source to "BT" mode, and then press and hold the (Source) button for more than 5 seconds.
2	D.IN	Connect to the digital (optical) output of an external device.
3	USB	Connect a USB device here to play music files on the USB device through the Soundbar.
4	AUX	Connect to the Analog output of an external device.
5	DC 19V	Connect the AC/DC power adapter. (Power Supply In)

CONNECTING THE SOUNDBAR

Connecting Electrical Power

Use the power components () to connect the Subwoofer and Soundbar to an electrical outlet in the following order:

1. Connect the power cord to the Subwoofer.
2. Connect the power adapter to the Soundbar and then to a wall socket.

See the illustrations below.

• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)
• Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the Subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the subwoofer is automatically connected to the Soundbar.

• When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

LED Indicator Lights on the Rear of Subwoofer

LED	Status	Description	Resolution
Blue	On	Successfully connected (normal operation)	-
	Blinking	Recovering the connection	Check if the power cable attached to the main Soundbar unit is connected properly or wait about 5 minutes. If blinking persists, try manually connecting the subwoofer.
Red	On	Standby (with the Soundbar main unit turned off)	Check if the power cable attached to the main Soundbar unit is connected properly.
		Connection failed	Connect again. See the instructions for manual connection.
Red and blue	Blinking	Malfunction	See the contact information for the Samsung Service Center in this manual.

Manually connecting the Subwoofer if automatic connection fails

Before performing the manual connection procedure below:

• Check whether the power cables for the Soundbar and subwoofer are connected properly.
• Make sure that the Soundbar is turned on.

1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.
   • The red indicator on the rear of the subwoofer turns off and the blue indicator blinks.

     Rear of Subwoofer
2. Press and hold the Up button on the remote control for at least 5 seconds.
   • The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.
   • The Soundbar will automatically power on when ID SET is complete.

   • Check if the LINK LED is solid blue (connection complete).

     The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Subwoofer.

Connecting an SWA-8500S (Sold Separately) to your Soundbar

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8500S, sold separately) to your Soundbar.

1. Connect the Wireless Receiver Module to 2 Surround Speakers. – The speaker cables are color coded.

2. Check the standby status of the Wireless Receiver Module after plugging it into an electrical outlet.
   • The LINK LED indicator (blue LED) on the Wireless Receiver Module blinks. If the LED does not blink, press the ID SET button on the back of the Wireless Receiver Module with a pen tip for 5~6 seconds until the LINK LED indicator blinks (in Blue). For more about the LED, please refer to the SWA-8500S user manual."

3. Press and hold the Up button on the remote control for at least 5 seconds.
   • The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.
   • The Soundbar will automatically power on when ID SET is complete.

   • If your Soundbar was playing music when it connects to the SWA-8500S, you may hear some stuttering from the woofer as the connection finalizes.
4. Check if the LINK LED is solid blue (connection complete).

   The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Receiver Module.
5. If the SWA-8500S is not connected, repeat the procedure from Step 2.

CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

• When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV's remote control.
  • This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable.
  • This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

When the audio in a broadcast is encoded in Dolby Digital and the "Digital Output Audio Format" on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)

Connecting using an Optical Cable

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable.
2. Press the (Source) button on the right side panel or remote control, and then select the "D.IN" mode.

Auto Power Link
Auto Power Link automatically turns on the Soundbar when the TV is turned on.

1. Connect the Soundbar and a TV with a digital optical cable.
2. Press the Left button on the remote control for 5 seconds to turn Auto Power Link on or off.
   • Auto Power Link is set to ON by default. (To turn off this function, hold the Left button on the remote for 5 seconds.)

   • Depending on the connected device, Auto Power Link may not function.
   • This function is only available in the "D.IN" mode.

Method 2. Connecting Wirelessly

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• Only one TV can be connected at a time.


The initial connection

1. Press the PAIR button on the remote control to enter the "BT PAIRING" mode.
   (OR)
   1. Press the (Source) button on the right side panel and then select "BT". "BT" changes to "BT READY" in a few seconds automatically if there is no Bluetooth device connected to the Soundbar.
   2. When "BT READY" appears, press and hold the (Source) button on the right side panel of the Soundbar for more than 5 seconds to display "BT PAIRING".
2. Select Bluetooth mode on the TV. (For more information, see the TV's manual.)
3. Select "[AV] Samsung Soundbar R4-Series" from the list on TV's screen.
   An available Soundbar is indicated with "Need Pairing" or "Paired" on the TV's Bluetooth device list. To connect the TV to the Soundbar, select the message, and then establish a connection.
   • When the TV is connected, [TV Name] → "BT" appears on the Soundbar's front display.
4. You can now hear TV sound from the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar R4-Series") appears in the list, delete it.
• Then repeat steps 1 through 3.

Disconnecting the Soundbar from the TV
Press the (Source) button on the right side panel or on the remote control and switch to any mode but "BT".

• Disconnecting takes time because the TV must receive a response from the Soundbar.
  (The time required may differ, depending on the TV model.)
• To cancel the automatic Bluetooth connection between the Soundbar and TV, press the (Play/Pause) button on the remote control for 5 seconds with the Soundbar in "BT READY" status. (Toggle On → Off)

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.
• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the remote control or press and hold the (Source) button on the right side of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 32.8 ft.
• The Soundbar automatically turns off after 20 minutes in the Ready state.
• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:
  • If there is a strong electrical field around the Soundbar.
  • If several Bluetooth devices are simultaneously paired with the Soundbar.
  • If the Bluetooth device is turned off, not in place, or malfunctions.
• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired or wireless network to play the external device's sound through the Soundbar.

Connecting using an Optical or Analog Audio (AUX) Cable

1. Optical Cable
   1. Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using a digital optical cable.
   2. Select "D.IN" mode by pressing the (Source) button on the right side panel or on the remote control.
2. Audio (AUX) Cable
   1. Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable.
   2. Select "AUX" mode by pressing the (Source) button on the right side panel or on the remote control.

CONNECTING A USB STORAGE DEVICE

You can play music files located on USB storage devices through the Soundbar.

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.
   • The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Center or Samsung Customer Care.
2. Connect your USB device to the female end of the adapter cable.
3. Press the (Source) button on the right side panel or on the remote control, and then select "USB".
4. "USB" appears in the display screen.
5. Play music files from the USB storage device through the Soundbar.
   • The Soundbar automatically turns off (Auto Power Down) if no USB device has been connected for more than 20 minutes.

Software Update

Samsung may offer updates for the Soundbar's system firmware in the future.
If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar. For more information about how to download update files, go to the Samsung Electronics website at www.samsung.comgSupport.

Then, enter or select the model number of your Soundbar, select the Software & Apps option, and then Downloads. Note that the option names can vary.

CONNECTING A MOBILE DEVICE

Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• You cannot connect more than one Bluetooth device at a time.


The initial connection

1. Press the PAIR button on the remote control to enter the "BT PAIRING" mode.(OR)
   1. Press the (Source) button on the right side panel and then select "BT".
      "BT" changes to "BT READY" in a few seconds automatically if there is no Bluetooth device connected to the Soundbar.
   2. When "BT READY" appears, press and hold the (Source) button on the right side panel of the Soundbar for more than 5 seconds to display "BT PAIRING".
2. On your device, select "[AV] Samsung Soundbar R4-Series" from the list that appears.
   • When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → "BT" appears in the front display.
3. Play music files from the device connected via Bluetooth through the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar R4-Series") appears in the list, delete it.
• Then repeat steps 1 and 2.

NOTE

• After you have connected the Soundbar to your mobile device the first time, use the "BT READY" mode to reconnect.

For more information about Bluetooth connections, refer to "Connecting a TV via Bluetooth".

USING THE REMOTE CONTROL

How to Use the Remote Control

1.
   Power
   Turns the Soundbar on and off.
2.
   Source
   Press to select a source connected to the Soundbar.
3.
   Mute
   Press the (Mute) button to mute the sound. Press it again to unmute the sound.
4.
   SOUND MODE
   You can select the desired sound effect by choosing STANDARD, SURROUND SOUND, GAME, or SMART.
   • DRC (Dynamic Range Control)
     Lets you apply dynamic range control to Dolby Digital tracks. Press and hold the
     SOUND MODE button while the Soundbar is powered off to turn DRC (Dynamic Range Control) on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.)
   • Bluetooth Power
     This feature automatically turns the Soundbar on when it receives a connection request from a previously connected TV or Bluetooth device. The setting is On by default.
     • Press and hold the SOUND MODE button for more than 5 seconds to turn off the Bluetooth Power function.
5.
   Bluetooth PAIR
   Press the PAIR button. "BT PAIRING" appears in the Soundbar's display.
   You can connect the Soundbar to a new Bluetooth device in this mode by selecting the Soundbar from the Bluetooth device's search list.
6.
   Play / Pause
   Press the button to pause a music file temporarily. When you press the button again, the music file plays.
7.
   Up/Down / Left/Right

   Press the indicated areas to select Up/Down/Left/Right.
   Press Up/Down/Left/Right on the button to select or set functions.
   • Repeat
     To use the Repeat function in "USB" mode, press the Up button.
   • Music Skip
     Press the Right button to select the next music file. Press the Left button to select the previous music file.
   • Auto Power Link
     You can turn Auto Power Link on or off.
     Auto Power Link is turned on and turned off by the Left button respectively.
     • Auto Power Link: If the Soundbar is connected to your TV through a digital optical cable, the Soundbar can automatically turn on when you turn on your TV. Press and hold the Left button for 5 seconds to toggle Auto Power Link ON and OFF.
     • Auto Power Link is set to ON by default.
   • ID SET
     Press and hold the Up button for 5 seconds to complete ID SET (when connecting to an accessary item).
8.
   Sound Control
   You can select TREBLE, BASS, or AUDIO SYNC.
   • To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons.
   • If the video on the TV and audio from the Soundbar are not synchronized, select AUDIO SYNC in Sound Settings, and then set the audio delay between 0~300 milliseconds by using the Up/Down buttons. (Not available in "USB" mode.)
   • AUDIO SYNC is only supported for some functions.
9.
   WOOFER

   Push the button up or down to adjust the volume of the subwoofer to -12 or between -6 to +6. To set the subwoofer volume level to 0, press the button.
10.
    VOL

    Push the button up or down to adjust the volume.
    • Mute
      Press the VOL button to mute the sound. Press it again to unmute the sound.

Adjusting the Soundbar volume with a TV remote control

If you have a Samsung TV, you can adjust the Soundbar's volume using the IR remote control that came with your Samsung TV.

First use the TV menu to set the TV audio on your Samsung TV to external speakers, then use your Samsung remote to control the Soundbar's volume. For more information, see the TV's user manual. The default mode for this function is control by a Samsung TV remote. If your TV is not a Samsung TV, follow the directions below to change the settings of this function.

1. Turn Off the Soundbar.

2. If you do not want to use this function, push up and hold the WOOFER button for 5 seconds repeatedly until "OFF-TV REMOTE" appears in the display.

3. If you want to control the Soundbar with your TV's remote, push up and hold the WOOFER button for 5 seconds repeatedly until "ALL-TV REMOTE" appears in the display. Then, use your TV's menu to select external speakers.

4. If you want to return the Soundbar to the default mode (control by a Samsung TV remote), push up and hold the WOOFER button for 5 seconds repeatedly until "SAMSUNG-TV REMOTE" appears in the display.

   • Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: "SAMSUNG-TV REMOTE" (Default mode) → "OFF‑TV REMOTE" → "ALL‑TV REMOTE".
   • This function may not be available, depending on the remote control.
   • For manufacturers that support this feature, refer to the FULL MANUAL for your Soundbar on the Samsung web site (www.samsung.com/support).
   • This volume control function works with IR TV remotes only. It does not work with Bluetooth TV remotes (remotes that require pairing).

INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
• Do not install in a place with high temperature or humidity.
• Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.
  • Diameter: M5
  • Length: 1 3/8 inches or longer recommended.
• Connect cables from the unit to external devices before you install the Soundbar on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

1. Place the Wall Mount Guide against the wall surface.
   • The Wall Mount Guide must be level.
   • If your TV is mounted on the wall, install the Soundbar at least 2 inches (5 cm) below the TV.

2. Align the Wall Mount Guide's Center Line with the center of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.
   • If you are not mounting below a TV, place the Center Line in the center of the installation area

3. Push a pen tip or sharpened pencil tip through the center of the B-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

4. Using an appropriately sized drill bit, drill a hole in the wall at each marking.
   • If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.
5. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

6. Use the two Screws (M4 x L12) to attach both Bracket-Wall Mount L and R to the Soundbar's bottom.
   For a proper fit, make sure to align the bumps on the Soundbar to the holes on the brackets.

   • When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

   • The left and right mounts are different shapes. Make sure to position them correctly.

   • Install the Soundbar with the attached
     Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

   • Slightly tilt the Soundbar to insert both Holder-Screw heads into Bracket-Wall Mount holes. Push the Soundbar in the direction of the arrow to make sure both sides are firmly fixed.


Detaching the Soundbar from the Wall

1. To separate the Soundbar from the wall mount, push it in the direction of arrow, tilt it up slightly, and then pull it away from the wall as shown.

   • Do not hang onto the installed unit and avoid striking or dropping the unit.
   • Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.
   • When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as this may cause it to fall.
   • For the optimal performance of a wall mount installation, install the speaker system at least 2 inches (5 cm) below the TV, if the TV is mounted on the wall.
   • For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

TROUBLESHOOTING

Before seeking assistance, check the following.

The unit will not turn on.
Is the power cord plugged into the outlet?

• Connect the power plug to the outlet.

A function does not work when the button is pressed.
Is there static electricity in the air?

• Disconnect the power plug and connect it again.

Sound dropouts occur in BT mode.

• See the Bluetooth connection sections.

Sound is not produced.
Is the Mute function on?

• Press the (Mute) button to cancel the mute function.

Is the volume set to minimum?

• Adjust the Volume.

The remote control does not work.
Are the batteries drained?

• Replace with new batteries.

Is the distance between the remote control and Soundbar main unit too far?

• Move the remote control closer to the Soundbar main unit.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.
This issue can occur if the subwoofer is not connected to the Soundbar main unit.

• Try to connect your subwoofer again.

The subwoofer drones and vibrates noticeably.
Try to adjust the vibration of your subwoofer.

• Push the WOOFER button on your remote control up or down to adjust the subwoofer volume. (to -12, or between -6 ~ +6).

SPECIFICATIONS AND GUIDE

Specifications

Model Name	HW-R450
USB	5V/0.5A
Weight	3.3 lbs (1.5 kg)
Dimensions (W x H x D)	35.7 x 2.1 x 2.8 inches (907.5 x 53.5 x 70.5 mm)
Operating Temperature Range	+41°F to +95°F (+5°C to +35°C)
Operating Humidity Range	10% ~ 75%
AMPLIFIER Rated Output power	35W x 2, 6 ohm
Supported play formats (DTS 2.0 sound is played in DTS format.)	LPCM 2ch, Dolby Audio™ (supporting Dolby® Digital), DTS
Subwoofer Name	PS-WR45B
Weight	8.8 lbs (4.0 kg)
Dimensions (W x H x D)	7.2 x 13.5 x 10.7 inches (181.5 x 343.0 x 272.0 mm)
AMPLIFIER Rated Output power	130W

NOTES

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.

LIMITED WARRANTY TO ORIGINAL PURCHASER

LABOR: One year (Carry- in)
PARTS: One year

All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG)

CANADA: 1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)

U.S.A
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Refer to the table below for an explanation of symbols which may be on your Samsung product.

	RISK OF ELECTRIC SHOCK. DO NOT OPEN.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product has included important literature concerning operation and maintenance.
	Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground). If this symbol is not present on a product with a power cord, the product MUST have a reliable connection to protective earth (ground).
	AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases, on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

(for Canada)

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This device and its antenna(s) must not be colocated or operation in conjunction with any other antenna or transmitter.

This device may automatically discontinue transmission if there is no information to transmit, or an operational failure. Note that this is not intended to prohibit the transmission of control or signaling information or the use of repetitive codes where required by the technology.

This Class B digital apparatus complies with Canadian ICES-003.

Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
    Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.
4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.
5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

Fax: (905) 542- 1199

Website: www.samsung.com/ca

Documents / Resources

References

• Support Home | Official Samsung Support US
• Product Help & Support | Samsung CA
• Aide et assistance : produits | Samsung Canada
• Support Home | Official Samsung Support US
• Samsung Galaxy Z Fold 7 Phone | Colours & AI Features | Samsung Canada

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Samsung HW-R450 Manual
