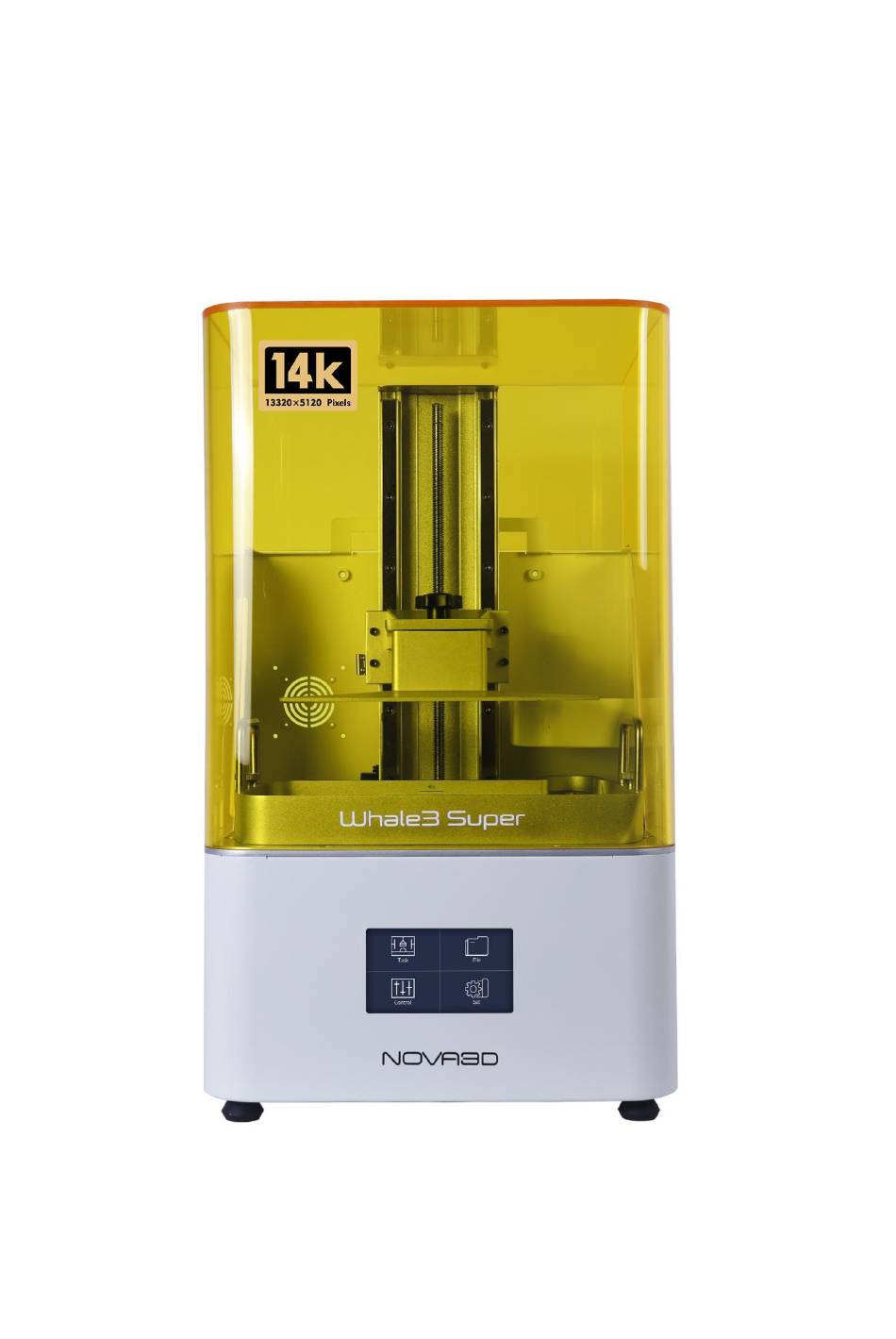

NOVA3D Whale3 Supper-14K User Manual

3d lcd printer, monochrome 0.25mm ultra-fine support,cob light source
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Whale3 Supper-14K
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Whale3 Supper-14K and is the answer not in the manual?

Questions and answers

Related Manuals for NOVA3D Whale3 Supper-14K

Summary of Contents for NOVA3D Whale3 Supper-14K

  • Page 1 Whale3 Supper-14K User Manual...

  • Page 2: Table Of Contents

    1. Learn More About the Whale ...........................8 2. What’s in the Box ............................10 3. Main Components ............................12 4. Nova3D Printing Technology Glossary ......................14 5. First Use Preparations ............................ 17 2. Remove the UV cover....................错误！未定义书签。 6.Navigating Through the Menu ........................20 7.Printer connects LAN and file transmission ....................

  • Page 3: Introduction

    Manufacturer recommends providing assistance and guidance to people with disabilities who wish to operate the printer. Nova3D does not assume (Ⅰ) the responsibility for any consequences arising from the use of any product; (Ⅱ) the responsibility for including but not limited to specific, joint or collateral...
  • Page 4 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or any act of Nova3D. Trade names, logos and trademarks mentioned herein may be trademarks or trade names of their respective owners.

  • Page 5: General Safety Information

    Always read the safety data sheets available at: http://www.nova3d.com. There are a source of basic information and safety procedures for the materials you bought. It is essential to regularly update the firmware to avoid any kind of failures.

  • Page 6: Workplace Health And Safety

    Liquid that enters the inside of the device increases the risk of an electric shock. All maintenance and repair work should be carried out while the device is off and unplugged. Modifications such as soldering of electronic subunits are forbidden. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 7: Mechanical Safety

    Nova3D devices must be stored between 18 and 35° C [64 - 95° F]. The storage space should be free of moisture and other extreme conditions.

  • Page 8: Electromagnetic Compatibility (Emc)

    Electromagnetic Compatibility (EMC) Nova3D printer complies with Part 15 of the FCC rules. Its operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.

  • Page 9: Learn More About The Whale

    (triangle mesh). The next step is to open the .stl file (or .obj、.nmk files) in NovaMaker - the program created specifically for Nova3D devices. NovaMaker prepares the model by slicing it into individual layers and saving it as a .cws file. NovaMaker...
  • Page 10 Each printer can still be operated using the touch screen at the front. It is also possible to change all settings related to exposure time of particular elements of the model directly during the printing process. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 11: What's In The Box

    2. What’s in the Box Use of Tools Platform: The model is adhered to the platform during the printing process. Shenzhen Nova3d Robot Technology Co., Ltd.
  • Page 12 Quick User Guide: Help you to get started quickly. Activated Carbon: Install into the fan to reduce odor. Metal Cap: Exchange the cap to start your auto feeding jobs. Removal Shovel: For removing the model from the platform Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 13: Main Components

    Main Components Front View Schematic diagram of the front of the device Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 14: Back View

    Back view Schematic diagram of the back of the device Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 15: Nova3D Printing Technology Glossary

    UV lamp. Slicer Option NovaMaker is an app developed by Nova3D, it prepares a model for 3D printing by generating the file in the .CWS format. NovaMaker allows the users to change and adjust the print settings, such as the size of the model, layer thickness, or how many support structures will be generated.

  • Page 16: Lcd Screen

    The display screen placed at the front of the printer, which enables fast and intuitive navigation through the device’s menu. The screen also displays information about the current printing process and other information concerning the printer. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 17: Support Structure

    Supports are printed with the same material as the model. Once the printing is done, supports have to be removed from the model by hand or using pliers. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 18: First Use Preparations

    M6 * 10 screws. The screws pass through the hinge hole, the UV cover hole, and finally lock in the threaded hole of the UV cover limit plate.（The hinge on the UV cover is assembled before leaving the factory.） Shenzhen Nova3d Robot Technology Co., Ltd.
  • Page 19 1. Take out the resin tank from the machine package, and take out the resin tank handle, M5 screw, material tank fixing screw and hexagonal wrench from the accessory package (as shown in the following figure). Shenzhen Nova3d Robot Technology Co., Ltd.
  • Page 20 3. Take out M5 screw, resin tank handle and hexagonal wrench to install the trough handle in place (as shown in the following figure). 7. Clean the FEP film and the LCD screen with a cloth. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 21: Navigating Through The Menu

    1. Print details: layer thickness of model slices , current layers of printing and total layers of slices, estimated amount of resin consumed for printing, file name, printing progress (including completed time and total time) and current printed picture. 2. Control: Pause, Start, and Stop functions. Shenzhen Nova3d Robot Technology Co., Ltd.
  • Page 22 You can select files here and then print and delete them. Control  1. Platform lift: manually control the platform up and down. 2. Leveling Seting: disabled the limit switch, fine-tune the original starting point of the platform. Shenzhen Nova3d Robot Technology Co., Ltd.
  • Page 23 .Click the "Settings" of the home page, enter the "LCD Screen Check" , and then check the LCD screen for proper operation according to the prompt. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 24: Printer Connects Lan And File Transmission

    1. Plug the WIFI adapter into the USB port 2. Connect your printer to WIFI Power on the printer, click Setting-Internet Setting-Share. Enter your WIFI name and password then click confirm to finish the WIFI connecting job. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 25: File Transmission

    IP in the folder address. B. Enter your computer password to start share service. C. Find the shared-disk, then choose “emmc” folder. You can transmit or manage your printer’s file in this folder. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 26: Novamaker Software

    8. NovaMaker Software Download and install NovaMaker software on Nova3D website at: https://www.nova3dp.com/products/specs-1941.html#downloads, You can get the Slicer , Testing file, Resin Setting sheet, and some others. You can also download some other slicers on this page. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 27: Starting And Post-Processing

    Operate "File" on the printer touch screen to browse files in the USB flash drive or the device memory, click the upload icon on the left, and the device will start printing after copying files to the print list of the machine. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 28: Post-Processing

    The cleaning is finished until the surface of the model is dry without oily. Otherwise, follow the steps above to continue cleaning and blow-drying. Be careful not to expose the model to the UV light before cleaning. Shenzhen Nova3d Robot Technology Co., Ltd.
  • Page 29 Once you finish, clean the resin filter in a liquid detergent. If it’s necessary, you can also clean the resin vat using the same liquid. 4. Clean the resin vat with a paper towel. You can also use resin detergent and alcohol for that purpose. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 30: C.changing The Resin

    1. Clean the resin vat with a soft paper towel. You can also use alcohol for that purpose. Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 31: Available Materials

    Technical Data Sheets and Safety Data Sheets can be found at the same website. When 3D printing with the Whale, the Manufacturer recommends using Nova3D certified materials, ensure that the resin packaging is intact and to check whether the resin is within its lifespan to acquire the best possible quality of prints.
  • Page 32 The printer is delivered with a full set of tools needed to carry out maintenance service work. The following tables present maintenance and repair guidelines connected with each section of the Nova3D BENE3, together with specific check points, necessary activities and their frequency.

  • Page 33: Support And Troubleshooting

    In order to ensure safety of every 3D printer’s user, the Manufacturer provides various support while identifying and solving technical problems independently. In case of difficulties with operating a Nova3D printer, at first you should seek guidance in this User Manual, also check the manuals available at:http://www.nova3dp.com The most common problems are listed below along with the list of possible solutions.
  • Page 34 Additional support exposure time option and decrease the Platform lift speed in the Parameter setting menu. 5. Check if the FEP film is not bent, deformed, or perforated. Replace the FEP film if you notice such defects. 6. Contact the Support Center at: http://www.nova3dp.com Shenzhen Nova3d Robot Technology Co., Ltd.

  • Page 35: Specification

    10 inches 13320*5120px Print speed 20-55mm/h (Max) Build volume 223*126*260mm Support Automatic/Manual Light source NOVA3D #5Generation Crystal Light Source Engine Connectivity Wi-Fi, Ethernet, USB flash drive Operating system Linux Processor Quad-core Cortex A7 1.5G Storage capacity 8.00GB (including system files) Touch screen 4.3 "capacitive touch screen...

  • Page 36: Recycling

    Waste electrical and electronic equipment cannot be disposed of in landfills and must be recycled. For information on where to dispose of waste equipment, contact the reseller, the Manufacturer, or the importer of the device. Shenzhen Nova3d Robot Technology Co., Ltd.
