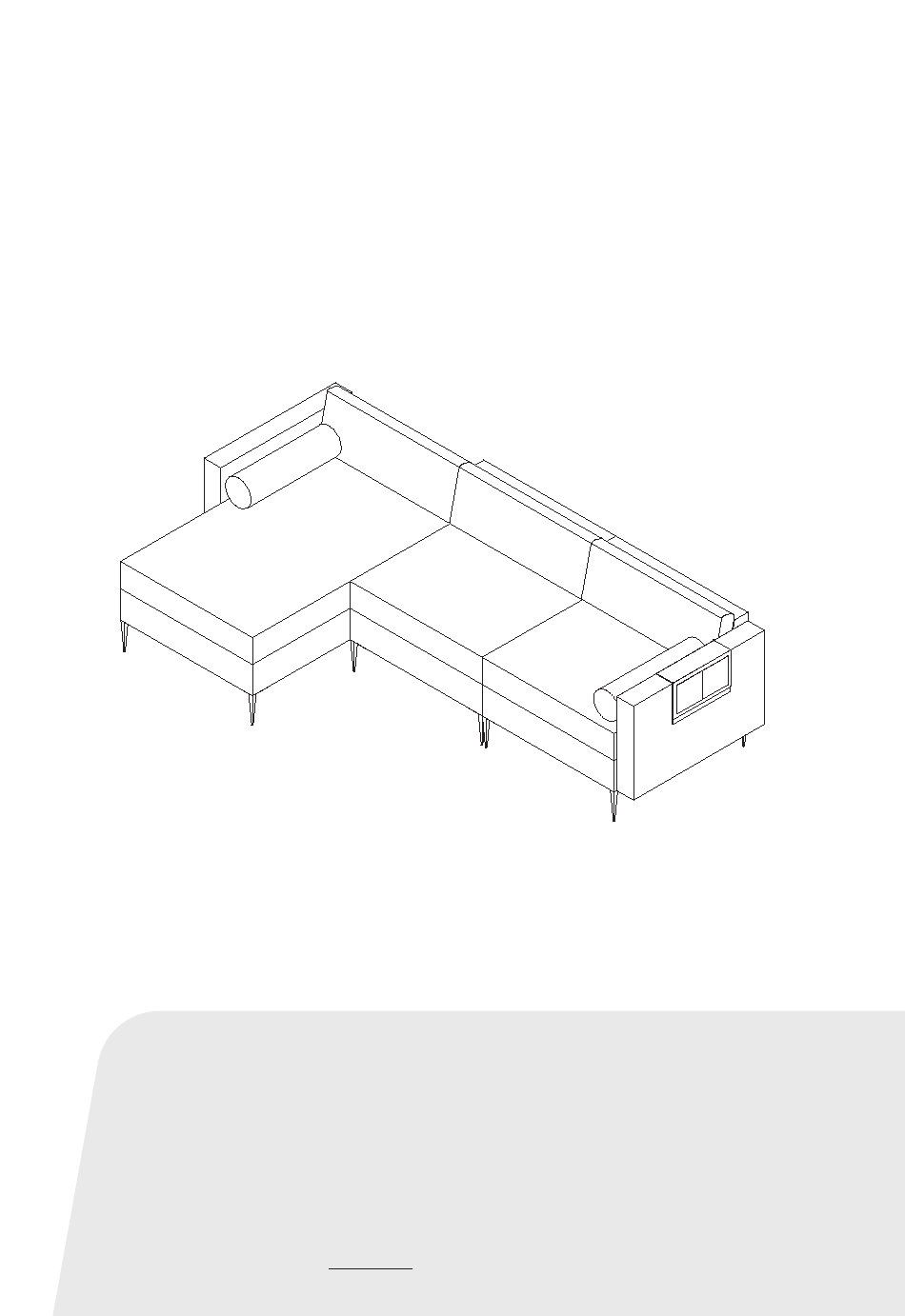

- Page 1 USER’S MANUAL Sectional Sofa HV10310 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 (A+F) (A+B) (A+B+C)
- Page 3 (A+B+D) (A+B+D) (A+B+D)
- Page 4 (A+B+C+D) (A+B+C+D)
- Page 5 ( A - exploded view ) 1 - Soft cushion 2 - Bottom frame 3 - Small round pillow 4 - Metal feet 5 - Back cushion 6 - Backrest (wood) 7 - Left armrest 9 - Magazine bag...
- Page 6 Accessories list-A M8*40 M10*40 M8*80 Handle screw Handle screw Hand knob Screw rod M8*25 14mm Screw Nylon gasket Allen key Open end wrench Note: Some connectors are used as a combination of modules, and some combinations will have remaining connectors, which is normal.
- Page 7 Module A (step 2) Note: First, use a screwdriver or other tool to pierce the connection hole upwards from the opening at the bottom of the bottom frame. Module A (step 3) Zipper Note: First connect the backrest and armrest, but do not tighten, then connect the bottom frame and armrest, and finally tighten them in turn.
- Page 8 Module A (step 4) Note: Of course,you can also attach magazine bag to other armrests. Module A (step 5)
- Page 9 ( B - exploded view ) 1 - Soft cushion 2 - Bottom frame 3 - Small round pillow 4 - Metal feet 5 - Back cushion 6 - Backrest (wood) 8 - Right armrest...
- Page 10 Accessories list-B M8*40 M10*40 M8*25 Handle screw Handle screw Hand knob Screw Nylon gasket Module B (step 1) g(A)
- Page 11 Module B (step 2) Note: First, use a screwdriver or other tool to pierce the connection hole upwards from the opening at the bottom of the bottom frame. Module B (step 3) Zipper Note: First connect the backrest and armrest, but do not tighten, then connect the bottom frame and armrest, and finally tighten them in turn.
- Page 12 Module B (step 4)
- Page 13 ( C - exploded view ) 1 - Soft cushion 10 - Storage box (metal) 2 - Bottom frame 11 - Backrest (metal) 4 - Metal feet 12 - Fastenings 5 - Back cushion...
- Page 14 Accessories list-C f*14 M8*40 M8*25 Handle screw Hand knob Screw Nylon gasket M8*15 M8*30 Screw Screw Gasket Module C (step 1) g(A)
- Page 15 Module C (step 2) g(A) Note: First, use a screwdriver or other tool to pierce the connection hole upwards from the opening at the bottom of the bottom frame. Module C (step 3) g(A) h(A) Note: Don't tighten it too much now, after connecting with other modules, tighten it again.
- Page 16 Module C (step 4) h(A) g(A) Module C (step 5)
- Page 17 ( D - exploded view ) 4 - Metal feet 5 - Back cushion 10 - Storage box (metal) 11 - Backrest (metal) 12 - Fastenings 13 - Bottom frame 14 - Soft cushion...
- Page 18 Accessories list-D f*14 M8*40 M8*25 Handle screw Hand knob Screw Nylon gasket M8*15 M8*30 Screw Screw Gasket Module D (step 1) g(A)
- Page 19 Module D (step 2) g(A) Note: First, use a screwdriver or other tool to pierce the connection hole upwards from the opening at the bottom of the bottom frame. Module D (step 3) g(A) h(A) Note: Don't tighten it too much now, after connecting with other modules, tighten it again.
- Page 20 Module D (step 4) h(A) g(A) Module D (step 5)
- Page 21 ( E - exploded view ) 1 - Soft cushion 2 - Bottom frame 4 - Metal feet 5 - Back cushion 6 - Backrest (wood)
- Page 22 Accessories list-E M8*40 M8*80 M8*25 Handle screw Hand knob Screw rod Screw Nylon gasket Gasket Module E (step 1)
- Page 23 Module E (step 2) Note: First, use a screwdriver or other tool to pierce the connection hole upwards from the opening at the bottom of the bottom frame. Module E (step 3)
- Page 24 Accessories list-F M10*40 Handle screw Combination steps For example:(A+B+C) (step 1)
- Page 25 Combination steps For example:(A+B+C) (step 2) Note: You can attach any backrest to any base frame.
- Page 26 Combination steps For example:(A+B) (step 1) Combination steps For example:(A+B) (step 2) d(A) j(A) l(A)
