HearthSense 815192020558 Manual

1. Remove the 4 front brackets closest to the front of
your fireplace insert (see Figure 1).
2. Follow the instructions included with your mantel
for assembly.
3. Carefully slide fireplace insert into mantel from the
back.
If you wish to anchor the insert to the base, use
self-tapping sheet metal screws.
4. Install front panel onto fireplace insert.
5. Follow directions in your fireplace insert owner's
manual for gas connection.

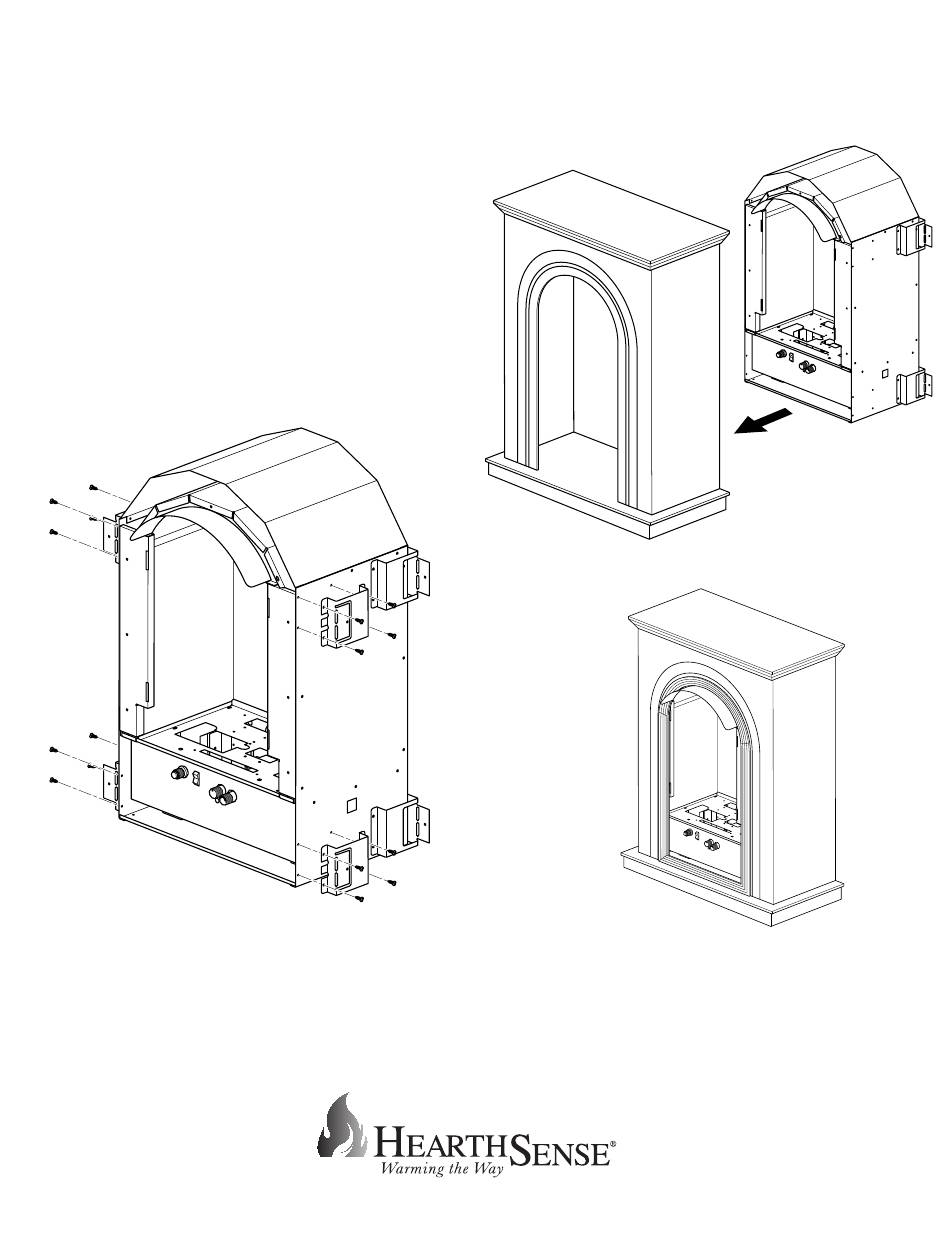

Figure 1 - Removing Front Brackets
Mantel Addendum
FOR USE WITH MANTEL MODELS AF-C, AT-C AND ATC-C
Factory Buys Direct
500 Brown Industrial Parkway
Canton, GA 30114
1-855-607-6557
Figure 2 - Installing Fireplace Insert
Figure 3 - Front Panel Installed
200328-01
Rev. A
03/16
