HearthSense AF-C Assembly Instructions

Floor mantel and base

Advertisement

Quick Links

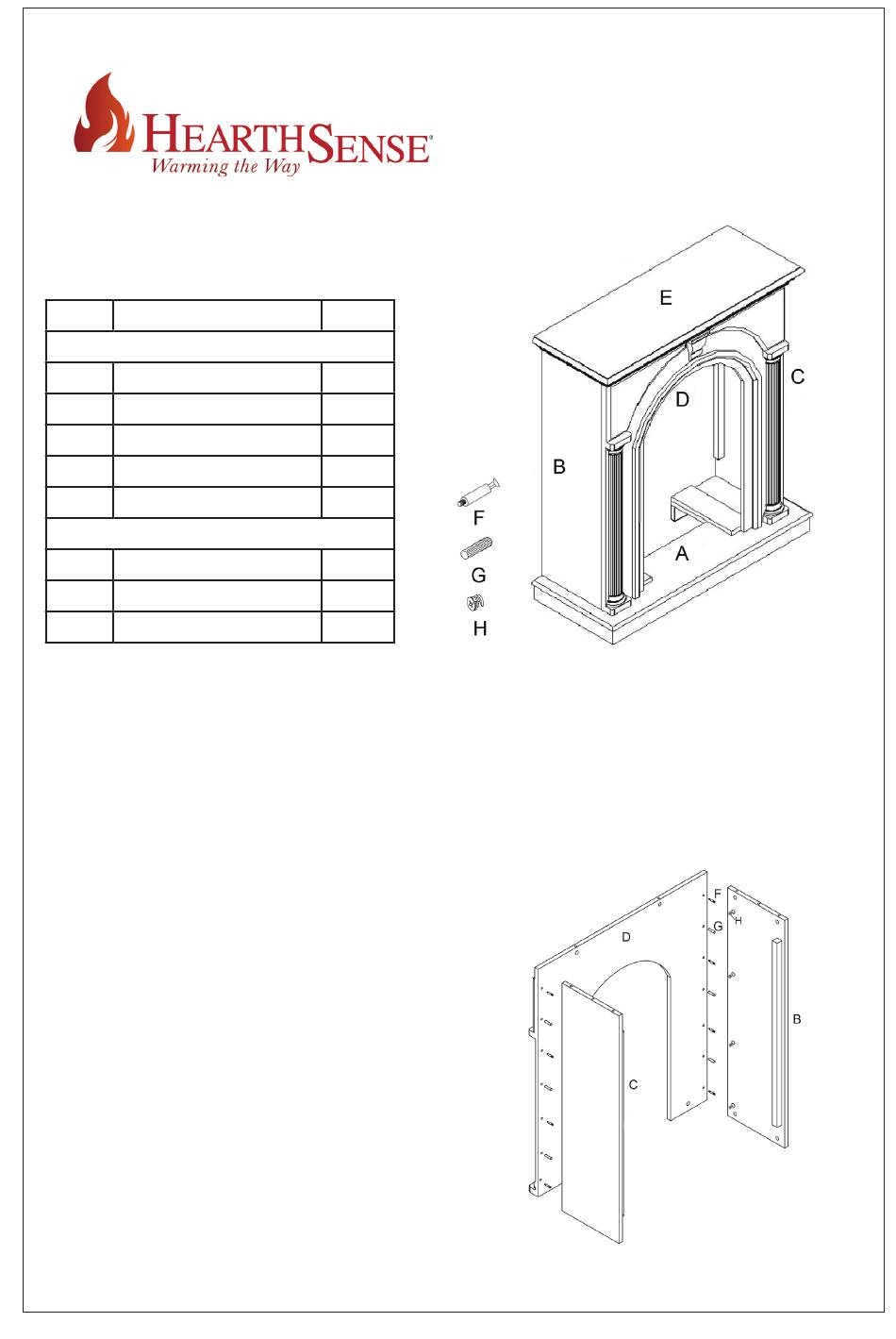

Carton contents
pART
DesCRipTion
pARTs
A
BAse
B
LeFT siDe
C
RiGHT siDe
D
FRonT pAneL
e
Top
HARDWARe
F
CAM DoWeL
G
WooD DoWeL
H
CAM LoCK
NOTE: Carefully inspect each part for shipping damage before beginning assembly. Compare the carton contents
with the list above. All necessary hardware is provided to fasten the mantel parts together. When tightening
screws, do not over tighten. This may cause threads to strip. For this reason, we recommend using a manual
screwdriver rather than a power screwdriver. Do not force screws into holes.
IMPORTANT: Read instructions carefully before starting assembly and installation of mantel. This mantel is only
approved for use with HeartSense brand gas fireplace system. Do not use mantel with any other brand products.
. Lay FRonT pAneL (D) down on a soft surface
to avoid damaging the mantel surface and finish.
place 6 WooD DoWeLs (G) and screw 8 CAM
DoWeLs (F) into the FRonT pAneL (D) as shown
in figure 2. Insert 8 CAM LOCKS (H) into the mating
holes in the LeFT siDe (B) and RiGHT siDe (C)
with the triangle arrow pointing towards the hole
in the edge. Mate the LeFT siDe (B) and RiGHT
siDe (C) with the WooD DoWeLs (G) and CAM
DoWeLs (F) in FRonT pAneL (D) and twist CAM
LoCKs (H) clockwise with a screwdriver to tighten
mantel sides to front panel.
Floor Mantel and Base
Assembly Instructions
qTy





22
0
22

MODEL: AF-C
Figure 1
Figure 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the AF-C and is the answer not in the manual?

Questions and answers

Summary of Contents for HearthSense AF-C

  • Page 1 Floor Mantel and Base Assembly Instructions MODEL: AF-C Carton contents pART DesCRipTion pARTs BAse LeFT siDe RiGHT siDe FRonT pAneL HARDWARe CAM DoWeL WooD DoWeL CAM LoCK Figure 1 NOTE: Carefully inspect each part for shipping damage before beginning assembly. Compare the carton contents with the list above.
  • Page 2 TABLE OF CONTENTS 2. place 2 WooD DoWeLs (G) and screw 6 CAM DoWeLs (F) into the BASE (A) as shown in figure 3. Insert 6 CAM LOCKS (H) into the mating holes in the LeFT siDe (B), RiGHT siDe (C) and FRonT pAneL (D) with the triangle arrow pointing towards the hole in the edge.
