Kemimoto X3 Installation Tips

Installation Tips
BEFORE YOU BEGIN
1. Read these instructions and check to be sure all parts and tools are accounted for.
2. Please retain these installation instructions for future reference and parts ordering information
IMPORTANT
1. Please read the installation instructions carefully before you start.
2. If the vehicle is clean and free of other debris, it will be easy to install.
3. For your safety and to ensure a satisfactory installation, please complete all the installation steps in the order shown below.

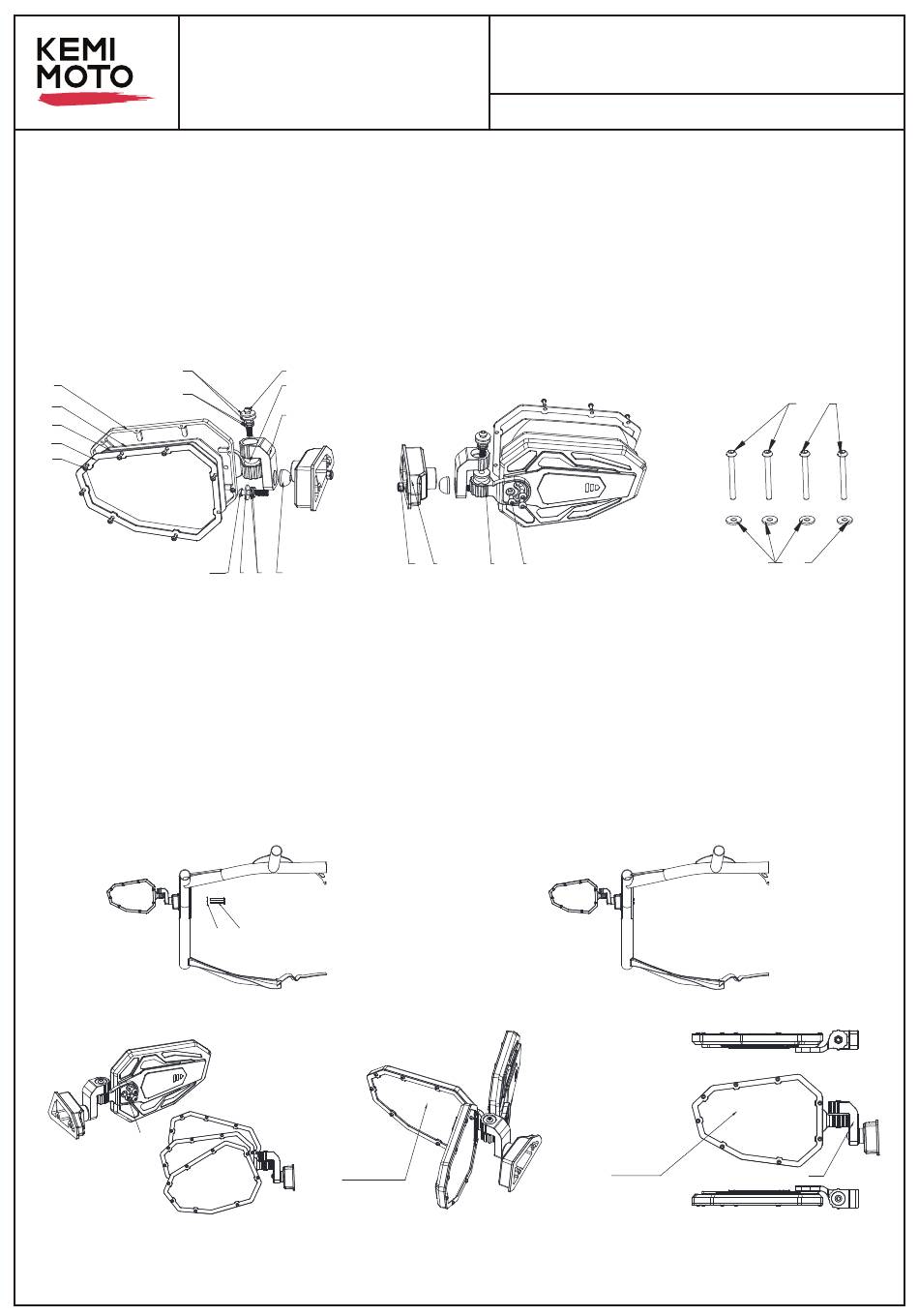

PRODUCT INFORMATION
6
1
7
2
3
4
5
11
1. Mirror case
2. Rubber pad
3. R1200 convex mirror
4. Metal sheets
5. M3*L8 round head hexagon socket screw
6. M6*D18*1.5 gasket
7. Parts 1-1
8. M6*L35 round head hexagon socket screw
9. POM ball head 1-1
INSTALLATION TIPS
01
Install the metal gasket-16 and screws-17 on the
mirrors through the roll cage and tighten them.
16 17
FUNCTIONAL
15
1) Loosen the three screws of serial number
15, you can adjust up and down angle about
30 degrees.
8
9
10
12
6 7 9
×2
×2
×2
×2
×16
×6
×4
×2
×4
The whole
of mirror
2) Swing the whole of mirror, you can
adjust the front and back angle, the
angle is about 230 degrees.
Complete journey of dreams
Designed by Kemimoto Group
14
13 15
10. Parts 1-2
11. M6*L35 round head hexagon socket screw
12. M6 lock nut
13. Parts 1-3
14. Parts 1-4
15. M5*L10 round head hexagon socket screw
16. M6*D18*1.5 Metal gasket
17. M6*L45 round head hexagon socket screw
02
Adjust the mirror to the right angle.
The whole
of mirror
Web: www. kemimoto. com
3) Hold the mirror and 10-part 1-2, then
swing the serial number 10-part 1-2, which
can be rotated 360 degrees.
17
16
×2
×2
×4
×2
×2
×6
×4
×4
10
