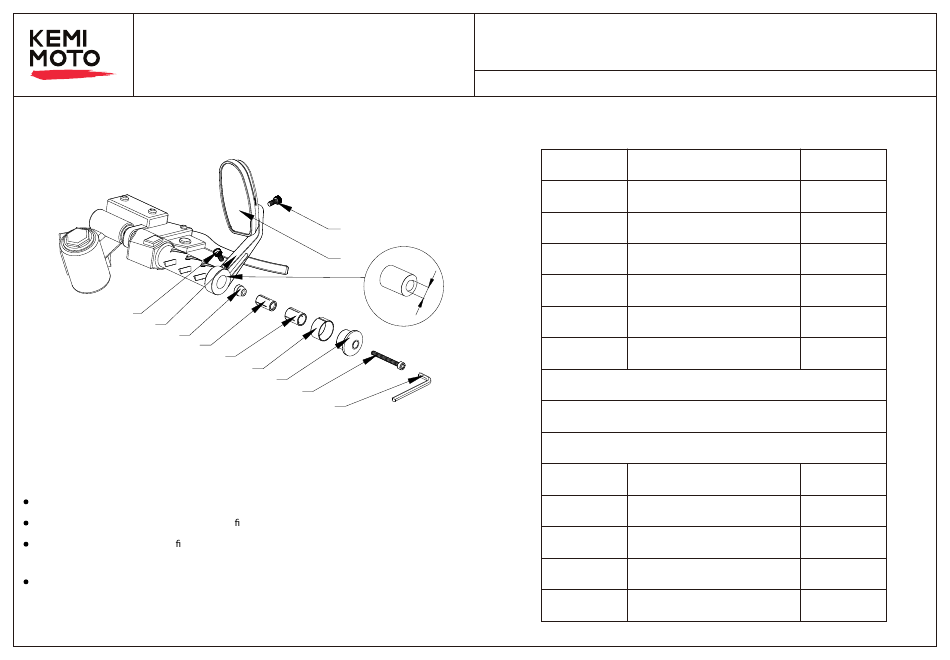

Mirror installation tips
Product
1
2 3
4
Tools needed:
5mm Allen Wrench (included in the package)
Installation steps:
Assemble the mirror (1, 2, 10, 11) together
Choose the proper adapter sleeve ( 4 or 5 ) to t your handle bar size
Choose the proper spacer (6) to t your handle bar. For example: 25mm for our bar
end; 21mm and 28mm for the original bar end
Put the bar end (7 or your original bar end) through the mirror stem ( 2 ), then
tighten the socket screw ( 1 )
11
10
5
6 7
8
9
Complete journey of dreams
Designed by Kemimoto Group Web: www. kemimoto. com
Part number: FCBEM003
NO.
1
M6*20mm socket screw
2
mirror stem
3
adapter
4
adapter sleeve (13mm)
5
adapter sleeve (17mm)
6
spacer
Inner diameter: 21mm 2pcs
Inner diameter: 25mm 2pcs
Inner diameter: 28mm 2pcs
7
bar end
8
M6*45mm socket screw
9
allen wrench
10
mirror body
11
12mm socket screw
Name
Quantity
2
2
2
2
2
6
2
2
2
2
2
