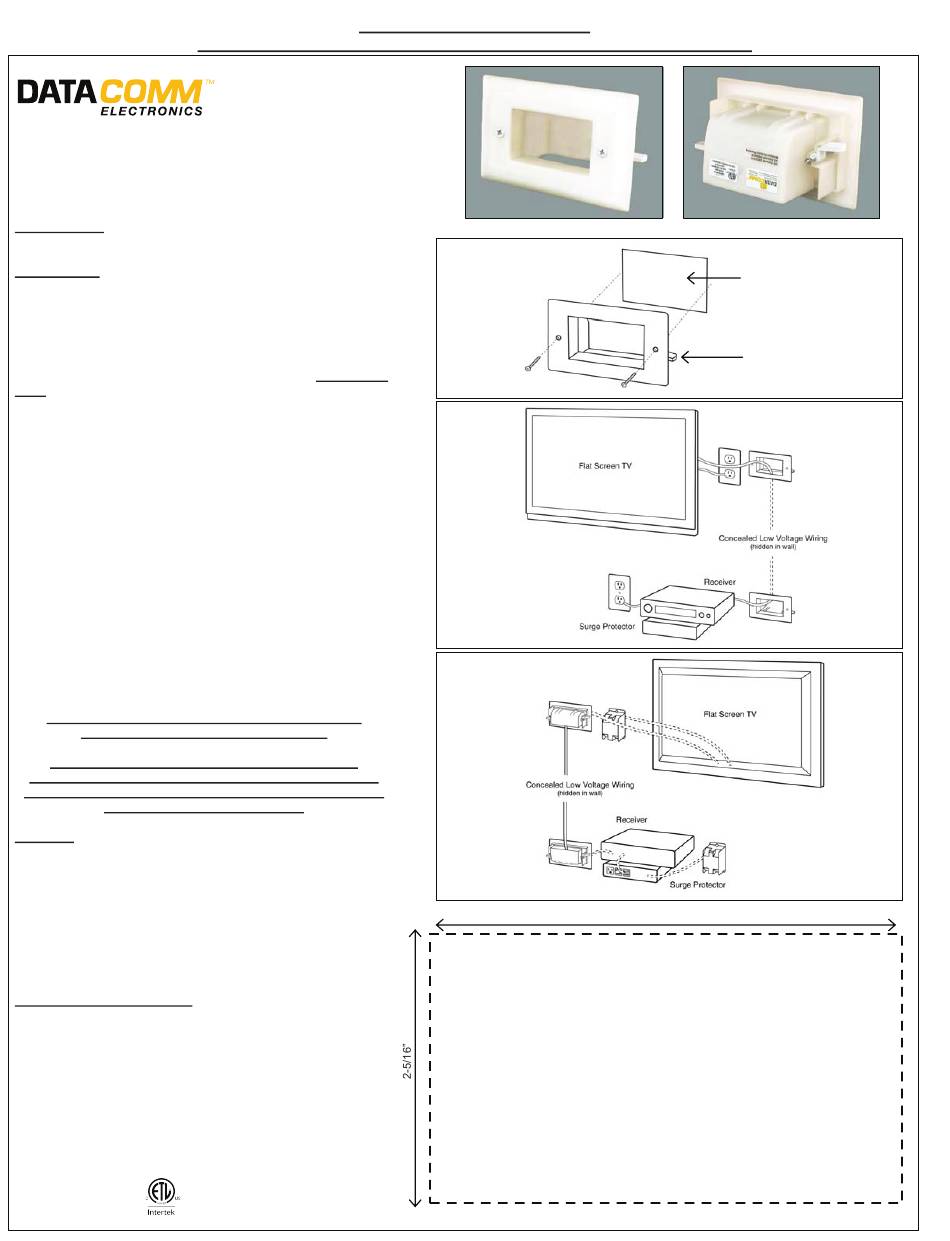

DataComm Electronics 50-3338-WH-KIT Instruction/Installation Sheet

DataComm Electronics, Inc.
6349 Peachtree Street
Norcross, GA 30071-1725
888.223.7977
770.662.8205
www.datacommelectronics.com
Parts Included
1. Two (2) Easy Mount Recessed Low Voltage Cable Plates
Tools Needed
1. Drywall saw
2. 6 Ft. tape measure
3. Pencil
4. Screwdriver
Use DataComm Electronics' Easy Mount Cable Organizer Kit to
install low voltage cables behind your flat panel TV, (see Figures
2 & 3), your amplifier or other audio and video devices. These
recessed low voltage cable plates are designed for use with Low
Voltage / Data Cables "ONLY".
Easy Mount Cable Organizer Plates are designed with the low
voltage mounting brackets molded to the back of the plate (see
Figure 1). The wall plate can be installed upright or upside down
(see Figures 2 & 3 for upright installation).
Determine the location of your flat panel TV, amplifier or
audio/video device. Use the enclosed template to cut a hole in
the drywall. When cutting the hole in the drywall, allow for the
location of the stud. Now simply pull your audio/video cables
through the wall and through the opening in the Easy Mount
Recessed Low Voltage Cable Plate (to help insert larger cables
through the opening in the wall plate, the back scoop of the wall
plate is removable). Now insert the Easy Mount Recessed Low
Voltage Cable Plate flush into the wall. Next, screw down the wall
plate screws with wings. The wings will fasten tightly against the
back of the drywall (see Figure 3) and your installation is
complete.
These Recessed Cable Plates are Designed for Use
with Low Voltage / Data Cables "ONLY".
Do Not Run or Pull the TV Cord or Other Electrical
Cords Inside the Drywall. National Electrical Code (NEC)
Does Not Allow the Installation of the TV Power Cord or an
Extension Cord Behind the Wall.
CAUTION
Never install low voltage wiring during lightning storms.

Never install low voltage wiring in wet locations

unless the wire is specifically designed for wet
locations.
Never touch un-insulated low voltage wires or

terminals unless the wire has been disconnected at
its source.
Use caution when installing low voltage cables.

IMPORTANT INSTRUCTIONS
Read and understand all instructions.

Follow all warning and instructions marked on the

product.
Do not use this product near water, for example

near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a
swimming pool.
SAVE THESE INSTRUCTIONS.

This product is patent protected by U.S. Patent number 7390964
RoHS Compliant
3026001
CAN/CSA STD. C22.2#182.4
Instruction / Installation Sheet
DataComm Electronics 50-3338-WH-KIT Easy Mount Cable Organizer Kit
ETL LISTED
CONFORMS TO
UL STD. 1863
CERTIFIED TO
Easy Mount Plate Front View
Figure 1
Figure 3 - Back View
TEMPLATE
50-3338-WH
Easy Mount Recessed Low Voltage Cable Plate
ACTUAL SIZE
CUT ALONG DOTTED LINE 
Easy Mount Plate Back View
Using Template (below),
Cut a Hole in the Drywall
Low Voltage Mounting
Bracket Wing
Figure 2 - Front View
4-1/16"
01/14/2019
