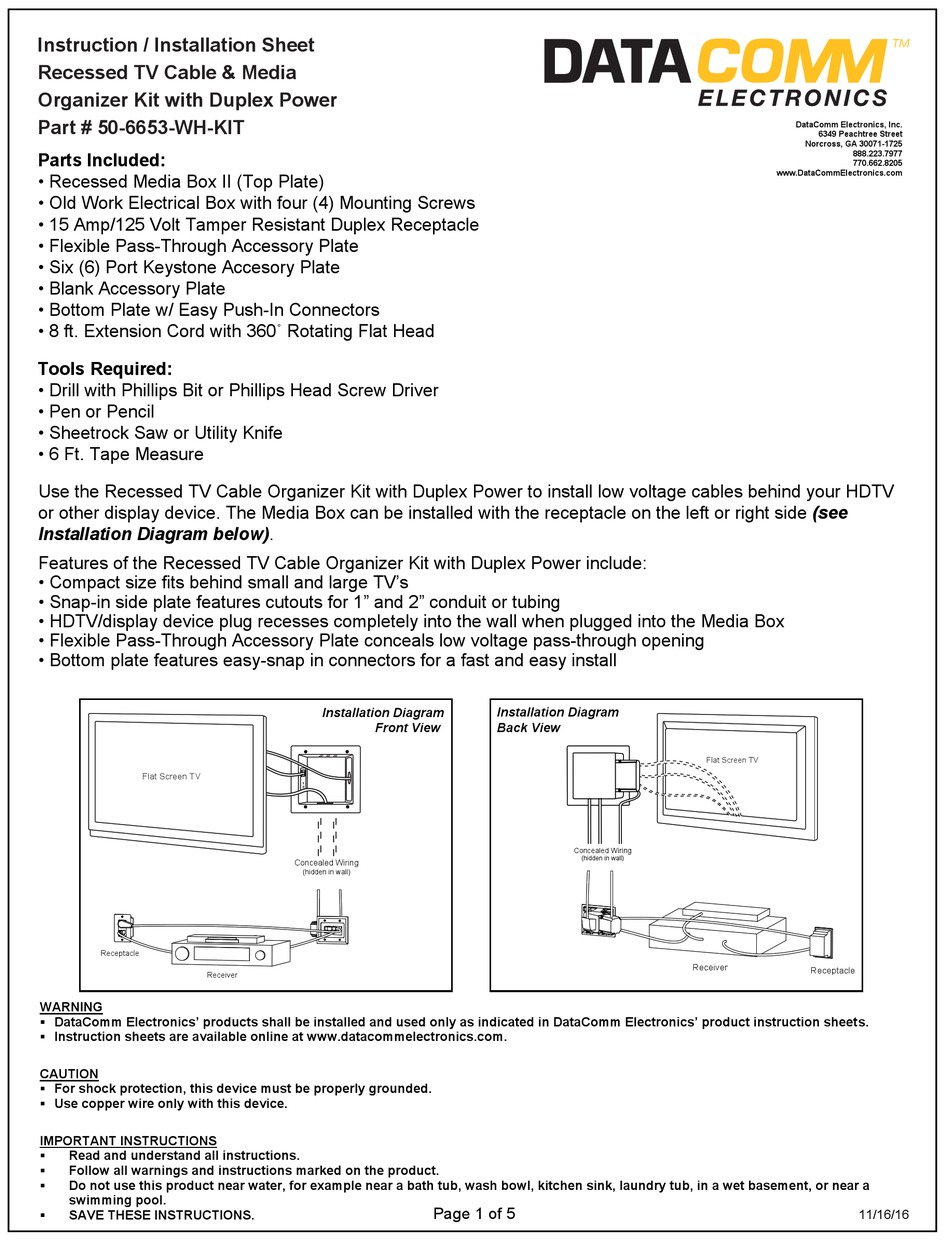

DataComm Electronics 50-6653-WH-KIT Instruction/Installation Sheet

Instruction / Installation Sheet
Recessed TV Cable & Media
Organizer Kit with Duplex Power
Part # 50-6653-WH-KIT

Parts Included:

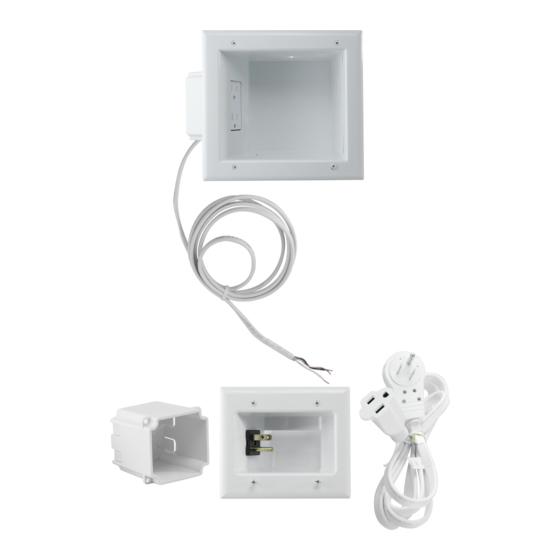

• Recessed Media Box II (Top Plate)
• Old Work Electrical Box with four (4) Mounting Screws
• 15 Amp/125 Volt Tamper Resistant Duplex Receptacle
• Flexible Pass-Through Accessory Plate
• Six (6) Port Keystone Accesory Plate
• Blank Accessory Plate
• Bottom Plate w/ Easy Push-In Connectors
• 8 ft. Extension Cord with 360˚ Rotating Flat Head

Tools Required:

• Drill with Phillips Bit or Phillips Head Screw Driver
• Pen or Pencil
• Sheetrock Saw or Utility Knife
• 6 Ft. Tape Measure
Use the Recessed TV Cable Organizer Kit with Duplex Power to install low voltage cables behind your HDTV
or other display device. The Media Box can be installed with the receptacle on the left or right side (see
Installation Diagram below).
Features of the Recessed TV Cable Organizer Kit with Duplex Power include:
• Compact size fits behind small and large TV's
• Snap-in side plate features cutouts for 1" and 2" conduit or tubing
• HDTV/display device plug recesses completely into the wall when plugged into the Media Box
• Flexible Pass-Through Accessory Plate conceals low voltage pass-through opening
• Bottom plate features easy-snap in connectors for a fast and easy install
Flat Screen TV
Receptacle
Receiver
WARNING
 DataComm Electronics' products shall be installed and used only as indicated in DataComm Electronics' product instruction sheets.
 Instruction sheets are available online at www.datacommelectronics.com.
CAUTION
 For shock protection, this device must be properly grounded.
 Use copper wire only with this device.
IMPORTANT INSTRUCTIONS
Read and understand all instructions.

Follow all warnings and instructions marked on the product.

Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a

swimming pool.
SAVE THESE INSTRUCTIONS.

Installation Diagram
Front View
Concealed Wiring
(hidden in wall)
Page 1 of 5
Installation Diagram
Back View
Concealed Wiring
(hidden in wall)
DataComm Electronics, Inc.
6349 Peachtree Street
Norcross, GA 30071-1725
888.223.7977
770.662.8205
www.DataCommElectronics.com
Flat Screen TV
Receiver
Receptacle
11/16/16
