Forward CR60A Mounting

OPERATION
Mount vise to work surface in desired location by securing all mounting flanges located on
base. See Dimension drawing at back of document. Use four 3/8" diameter bolts, 2 inches
longer than the bench top thickness, flat washers and nuts (customer supplied).
Do not weld vise to any metal object. Make sure the bench top to which the vise is mounted is
properly secured.
The vise is shipped with a protective coating. This coating should be removed before
operation. Use penetrating oil to remove protective coating.
Secure vise in the desire rotational position by hand tightening the lock handles. Do not
use a pipe extension or cheater bar. This may cause handles to bend and overstress
locking bolt threads.
Open jaws of vise and place workpiece between jaws in desired position. Secure workpiece
between jaws by rotating leadscrew handle. Be sure workpiece is held securely in vise. Never
use hammer, pipe extension or cheater bar on leadscrew handle of vise.

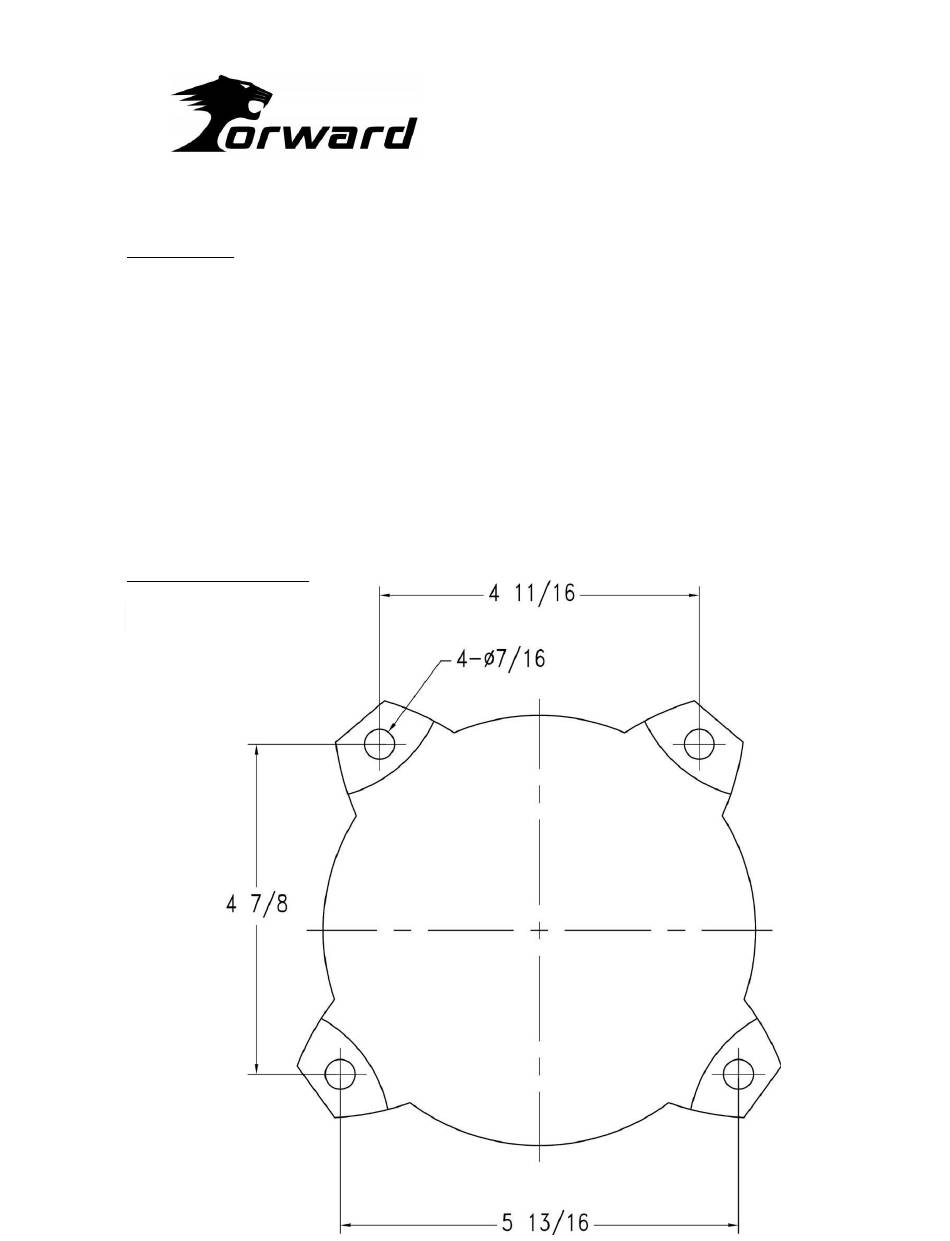

MOUNTING DIMENSIONS
NOT TO SCALE!
Base Mounting
