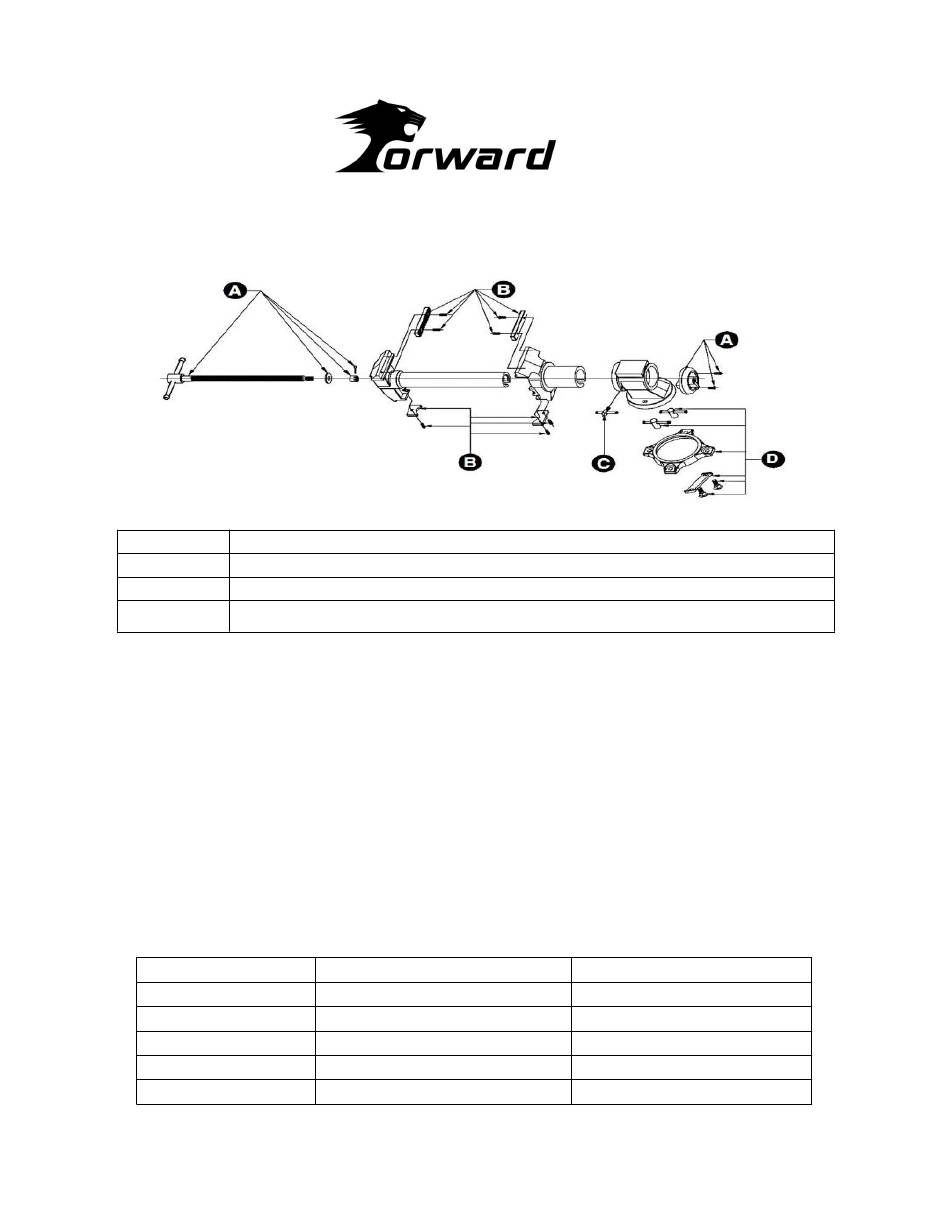

A
HANDLE & MAIN SCREW & NUT ASSY
B
JAW PLATES & "V" JAW & SCREWS ASSY
HEAD LOCKING HANDLE
C
SWIVEL BASE & LOCKING PAD & LOCKING NUT ASSY
D
Inspection and Acceptance:
Claims for damage, shortage, or errors in shipping must be reported within one (1) day following
delivery to Buyer.
Buyer shall have seven (7) days from the date Buyer receives any products to inspect such
products and services for defects and nonconformity which are not due to damage, shortage, or
errors in shipping and notify Seller, in writing, of any defects, rejection or nonconformity such
products.
Specially fabricated or ordered items may not be canceled or returned, and no refund will be
made.
Product Specifications:
MODEL NO.
Jaw Width
Jaw Opening
Throat Depth
Pipe Jaw Capacity
Net Weight
Multi-Purpose Vise Series
MODEL: DT08125A/DT150B
DT08125A
125mm (5")
125mm (5")
67mm (2.6")
φ 3/5" -2 1/2"
33 lbs
DT150B
152.4mm (6")
125mm (5")
66.6mm (2 5/8")
φ 3/5" -2 1/2"
42 lbs
Document No. M-DT08125
Edition 3 10/2018
Copyright © 2018 Forward
Advertisement
Related Manuals for Forward Multi-Purpose Vise Series
Summary of Contents for Forward Multi-Purpose Vise Series
- Page 1 Multi-Purpose Vise Series MODEL: DT08125A/DT150B HANDLE & MAIN SCREW & NUT ASSY JAW PLATES & “V” JAW & SCREWS ASSY HEAD LOCKING HANDLE SWIVEL BASE & LOCKING PAD & LOCKING NUT ASSY Inspection and Acceptance: Claims for damage, shortage, or errors in shipping must be reported within one (1) day following ...
- Page 2 (6) NEVER place pressurized containers or combustible materials in a vise. (7) NEVER unscrew the movable jaw beyond the vise's maximum specified opening. (8) NEVER apply extreme heat or prolonged heat to the vise as it may alter structural properties. Document No. M-DT08125 Edition 3 10/2018 Copyright © 2018 Forward...
- Page 3 MOUNTING DIMENSIONS NOT TO SCALE Forward suggests the following optimal configuration: Firstly, insert the appropriate length and diameter bolts, accompanied by a flat washer, into the vise's swivel base. The bolt should extend at least 2" beyond the underside of both the workbench and the wood/metal plate. Then, on the underside of these, attach a flat washer, lock washer, and locking nut to the bolt.
- Page 4 Technical Service representative will explain and assist with any additional action needed. Forward® reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment that they may deem necessary for any reason whatsoever.
