Planet Waves Auto-Trim 019954934729 Installation Instructions

Auto-Trim
Installation Instructions

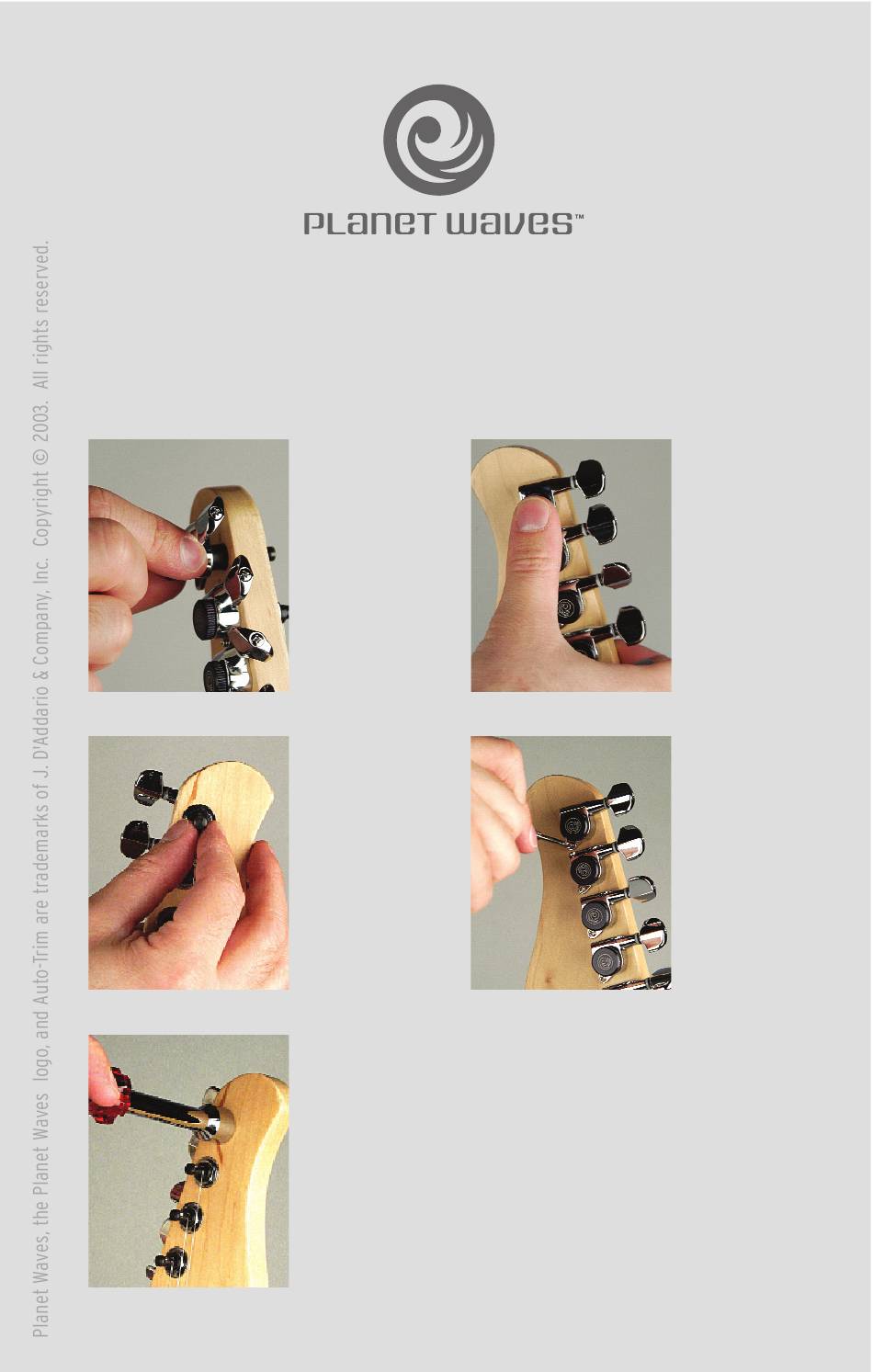

1. Insert the
tuner through
the hole in the
headstock and
align it in
the desired
position.
3. Place the
washer and nut
over the tuning
post. Turn the
loose nut with
a wrench or nut
driver until
you feel the
first sign of
resistance.
5. Again, with a
wrench or nut driver,
turn the nut 1/4 turn
(90
be tight and secure.
If not, tighten it 1/4
turn at a time until
it is secure.
™ Tuning Machine
O ). The nut should
2. Gently push
with thumb
until tuner is
flush against
the headstock.
4. Fasten the
screw through
the eyelet
and into the
headstock.
J.D' A ddario & Company, Inc.
PO Box 290
Farmingdale, NY
11735 USA
Tel: 631-439-3300
Fax: 631-439-3333
www.planet-waves.com
