Intech Micro 2300 Series Installation Manual

INTECH Micro

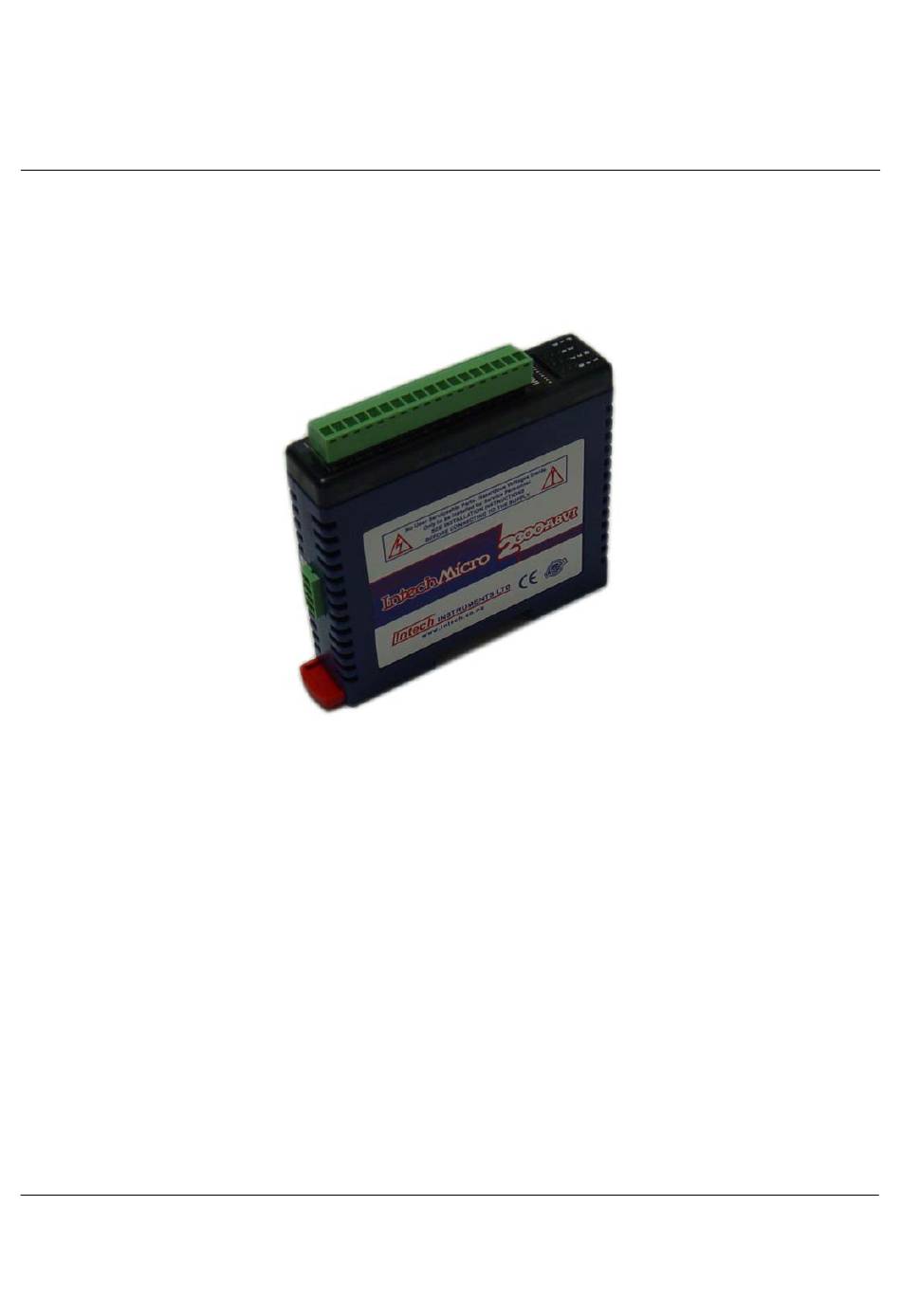

2300-A8VI
8 Channel Voltage Input Station
Overview
The Intech Micro 2300 series is a system of modular I/O Remote Stations, that add an even lower cost option to
Intech's already extensive intelligent I/O Remote Station family, which connect automatically to the Intech
MicroScan V5 logging plus SCADA software package.
The 2300 series I/O stations are made up of stand-alone Digital and Analogue—Input/Output stations.
Communications between the computer running MicroScan V5 and the 2300 series stations is RS485
(1 pair cable) multi drop as standard with an option for TCP.
A 32bit ARM CPU is used in the 2300 series stations to provide high speed data processing and fast
communications turn around times. All 2300 series stations have been equipped with status led's which are used
to indicate the status of the Inputs or Outputs. This visual indication assists with fault finding and diagnostics.
All the I/O stations clip directly onto an industry standard DIN rail. All stations have a minimum isolation of
1000VAC rms between the field and logic.
Installation Guide
When connecting to MicroScan V5 software
