MakerHawk H1168EJBUK89PN55OQTRXCJK Usage Manual

Battery Capacity/Dc Power Multi-function Tester
Prevent burning warning: when the input voltage battery and large power test, access must be before
using two current adjustment knob counterclockwise to the minimum to zero, then the access, according
to the priority according to current power to slowly adjust current knob, must not instantly transferred in
full, so there are excessive instantaneous power load discharge tube burnt huge risk! Please use the
special attention to this point, thank you!
Interface function instruction:
(by qualcomm quick charge QC2.0/3.0 trigger, etc.)
Measure variety of batteries
DC power adapter charger
power bank,etc.
Description for Function Key : Description for Function Key :
1) Keep Press long time the key: Zero all data(mAh,Wh,00:00:00)
2) Double-click the key: for the Capacity data reset to zero
3) Three-click the key:for the electric quantity data reset to zero
4) Four-click the key: for the time data reset to zero
5) Five-click the key: Auto-Standby Mode & Timer for discharge alert
6) Single-click to change the window, entering the setup window for
high&Low Voltage background light, adjust the parameters by
double-clicking or three-clicking, click-holding for continuous and
quick adjust.
7) Without load,quickly click the key for 7 times, for current data
reset to zero(0.00A).It is for Precise calibration in local circumstance,
so that the small current could be precisely measured.
8) Keep pressing the key when power-off, then power-on, entering
the Background setup window for High&Low Voltage over-load,
single-click or double-click to adjust the parameters, keep press
the key long time to reset to the default setup
(Note: Please don't calibrate the voltage or current if without
standard instruments)
Instruction for Connection and Operation :
) ,
1 Open the package insert the power adapter into the end of the
product and supply the power
) -
2 Anti clockwise rotate the two current knobs to the lower limit
)
3 Connecting the Power Supply under test to the product
according to the diagram above and the current Input Voltage
.
value will be read out Keep pressing the key to reset all data to zero;
)
4 Slowly clockwise rotate the two current knobs coarse fine to
adjust the current to the rating value of the Power Supply The current
,
should be slowly adjusted using the fine knob priority the
coarse knob could be only used under large current condition
)
5 When testing the battery Low voltage discharge limit should
,
be set up to avoid the possible damage caused by over discharging
while discharge capacity test of the battery

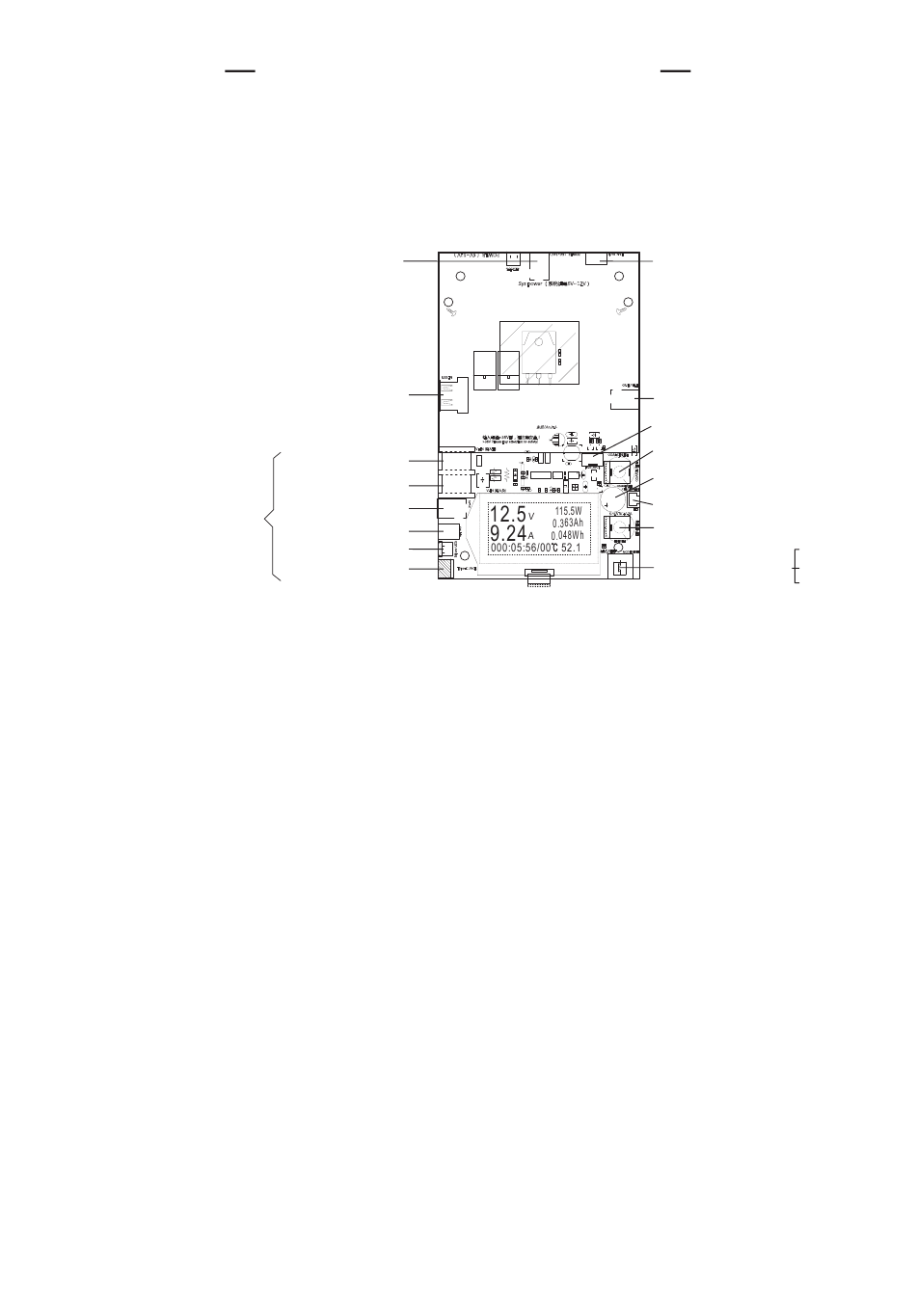

Usage introduction
Power supply interface 2
（ DC6 12V ~
Multi-purpose USB port
DC Input(+)
DC Input(-)
,
DC 5 0 Jack input .
, ,
MiNi USB input
Micro USB input
Type-C USB input
.
,
(
,
,
.
*
）
S P E C I F I C AT I O N S :
Supply Voltage/
Voltage measure Range 0 00V 200V
Current Adjustable Range 0 00A 20A Accuracy 0 05A
Capacity measure
Power cumulative range 0 99999 9Wh Accuracy 0 01Wh
Power measure Range 0 2999 99 W Accuracy 0 01W
Impedance measure Range 1 999 9 ohm Accuracy 0 01
Temperature Range
Max Timing 999H59M59S Accuracy 1S
Cooling Fan Power
for different cooling power)
Fan controlling gate: The cooling fan auto started while the
> .
current 0 5A or the Temperature 45
/
Input Output 20A biting screw
Refresh time
measure rate about 2s time
Over voltage and over current alert method Display warning
window and voice warning
Protecting Voltage setting Range 1 300V
Low Voltage setting Range 0 149V
Protecting Current setting Range 0 2 100A
Protecting Power setting Range 185W
Display Type Micro power consumption, LCM module, black
font, green backlit, Chinese&English
：
Size 160x95x60mm
Consumption Current
Operating Temp
Operating Humidity
.
Operating Pressure 80 106kPa
Warning:
1) The two current knobs should be set at the lower limit
before using(Counterclockwise Adjust o he nd ouble
& )
c k
urrent nobs to 0.00A)! Then increase the current slowly
( 2) When the voltage 36V please attention to
!
safety Avoid electric shock
3) Several Powers should not be connected at the same
.) ,
time avoid the over voltage or current to damage your power
.
supply
4) Slowly adjust the current while observing the displayed
,
value avoid the instant large current overloaded
5) Be sure to obey the law of conservation of energy the
product of the voltage and the current should less than 150W
Fan interface 2
DC Output/Put current increase
Fan interface 1
Current Adjust, Fine
Alert Speaker
Protection Controlling Signal Output
Current Adjust, Coarse
Ω
Multi-Functional Key
：
~
Interface DC6 12V / DC 5 0 or Micro USB
：
. ~
：
. ~
：
~ .
Range 0 999 999Ah Accuracy 0 01Ah
： ~ .
：
~ .
：
~
： ~ ℃
0 99 Accuracy 1
：
：
< /<
150W 180W (Fan could be changed
>
：
+
USB
：
> /
500mS time
：
/
：
：
~
：
：
：
：
< .
1 5A
.：- ~+ ℃
10 60
：
： ~ ℃
10 80 Condensation
：
~
> ,
Function switch
Zero Data
Parameter Setup
.
：
.
Accuracy 0 05V
：
.
：
.
：
.
：
.
：
. .
：
℃
：
-
℃
：
~
. ~
）
t t e D
.
.
,
.
