MakerHawk C1 Usage Manual

USB Energy Tester
Range of application:
1:
Notebook
Desktop
Mobile Power Pack
USB power etc
2:
USB power supoly
USB Teset

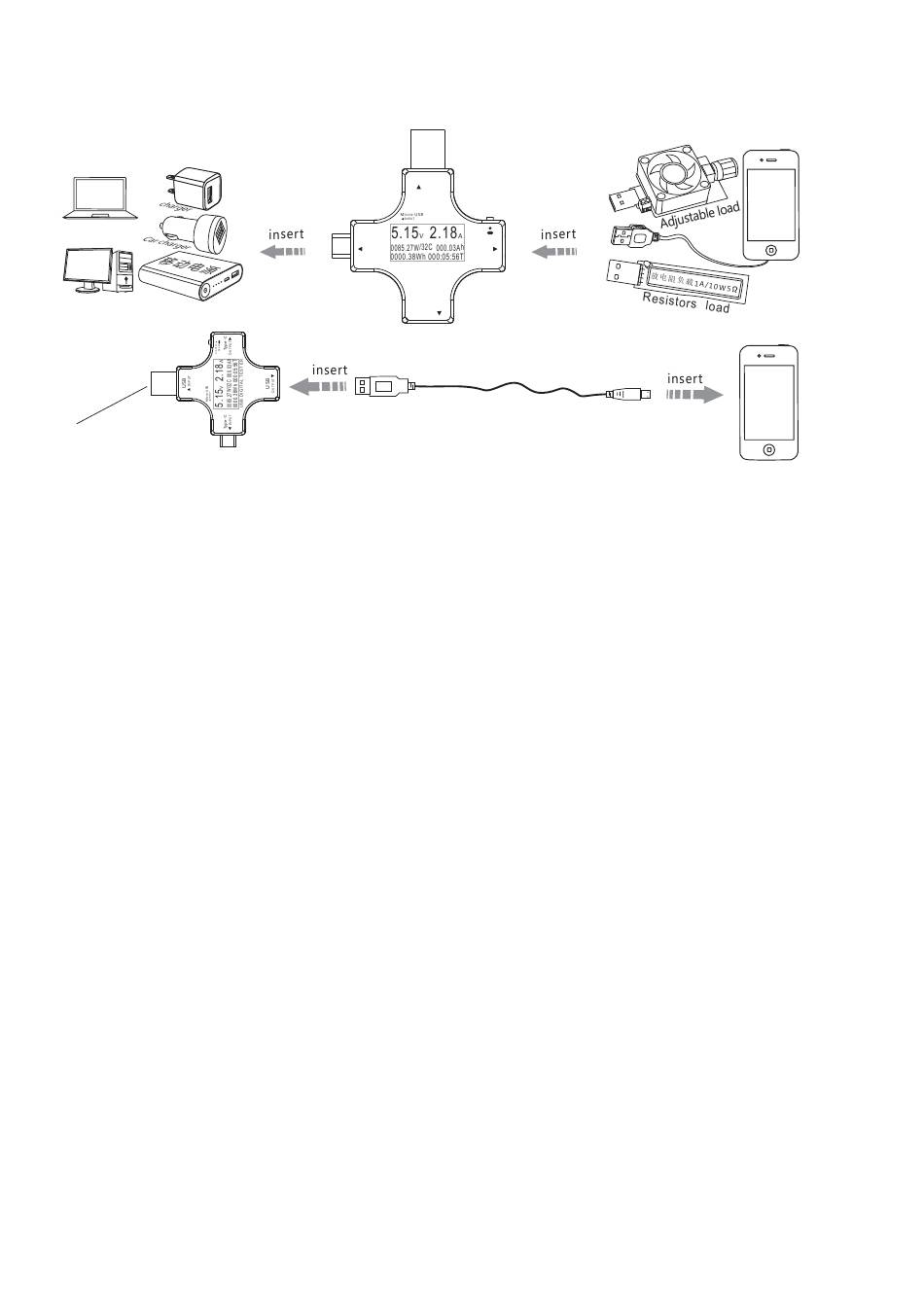

According to the above drawing 2 complete the connection , under the condition of constant
power supply and load, change different data cable, current displayed on USB tester is larger,
quality of data cable is better, and the charge speed is faster.
Tips：
When the ambient temperature changes or the outside heat conduction to tester
causes the current to not return to zero and the display shows 0.01A or 0.02A or
otherwise,Please Hold on the key buttion then insert to USB Charger It can make
the current temperature of the ambient current zero calibration,After the zero can
more accurate measurements.And when in Zero calibration,the output can not have
any load current consumption, so usb tester display 0.00A
Operation introduction:
(1)Long press in the main interface means that electricity, time all are reset and
cleared to zero (Wh 00:00:00)
(2)Double click means that power is reset and cleared to zero (Wh)
(3)Triple click means that time is reset and cleared to zero
(4) without holding down the key not to put into electricity, electricity is the current
temperature environment current zero calibration(at the ambient temperature
changes or external thermal conductivity to U table lead to current is not zero, zero
calibration by this method,Zero calibration, the output shall not have any load
current consumption, so as to avoid mistakes zero)
(5) if the enter background mode, short press the switch calibration interface,
double-click the calibration starts
Specification： Specification：
Voltage measuring range: 3.60V ~ 32.5 V
Current measuring range: 0.00 ~ 5.00 A
Power cumulative range: 0 ~ 999999 MWH Resolution precision: 0.001 Wh
Power metering range: 0 ~ 299.999 W
Timing maximum time: 999 H 59 M 59 S
Time to refresh: > 500 ms/time > 500 ms/times
Measurement rate: 0.5 times/s
Product size: 65 x 24 x 14 mm
Since the power flow: < 0.015 A
- Usage introduction -
Type-C
INPUT
USB DIGITAL TESTER
OUTPUT
USB Teset
The tested data line
、
Working temperature: - 10 ~ + 60 ℃
Working humidity: 10 ~ 80 (no doubt)
The pressure of work: 80 ~ 106 kpa
USB
INPUT
DISPLAY
RESET
Type-C
OUTPUT
USB
Resolution precision: 0.01 V
Resolution precision: 0.01 A
Resolution precision: 0.001 W
Resolution precision: 1 S
Mobile
phone
USB Equipment etc
Mobile
phone
(00:00:00)
