Summary of Contents for AVMATRIX SD2080

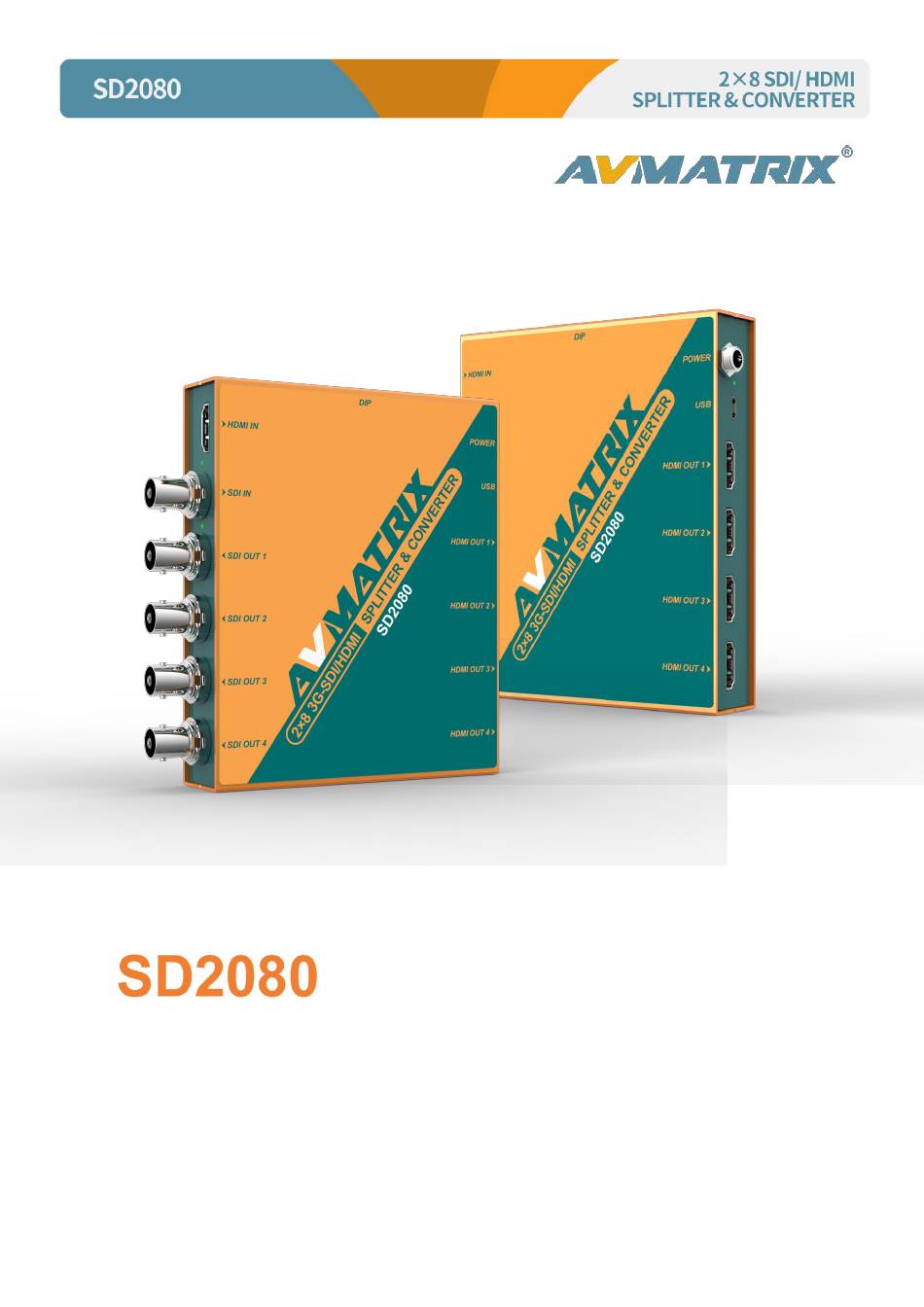

  • Page 1 2×8 SDI/ HDMI SPLITTER & CONVERTER...

  • Page 2: Brief Introduction

    1.Brief Introduction 1.1 Overview SD2080 is a professional splitter & converter converting between SDI and HDMI signals. It is capable of transmitting and distributing the input signal into eight parallel SDI and HDMI outputs for eight different connected device outputs simultaneously. All functions can be easily set via the dip switches. SD2080 is ideal for broadcast and AV post-production applications.
  • Page 3 2.Interfaces HDMI IN POWER SDI IN HDMI OUT 1 SDI OUT 1 HDMI OUT 2 SDI OUT 2 HDMI OUT 3 SDI OUT 3 HDMI OUT 4 SDI OUT 4...

  • Page 4: Specification

    3.Specification INPUTS HDMI Video Input HDMI Type A x1 SDI Video Input SD/HD/3G-SDI x1 OUTPUTS HDMI Video Output HDMI Type A x4 SDI Video Output SD/HD/3G-SDI x4 FORMAT SDI Input Format Support 1080p 60/59.94/50 1080p 30/29.97/25/24/23.98 1080psf 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25 625i 50, 525i 59.94 SDI Video Rate...
  • Page 5 HDMI Output Format Support 1080p 60/59.94/50 1080p 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25 576i 50, 480i 59.94 SIZE Dimension (LWD) 125.5×104×24.5mm Weight 485g POWER(USB) Power Connector DC 12V Current 550mA Voltage Range 6~28V Power Consumption 6.6W ENVIRONMENT Operating Temperature -20℃~ 60℃ Storage Temperature -30℃~ 70℃...
  • Page 6 5.Connection Diagram 6.Bracket Mounting...
